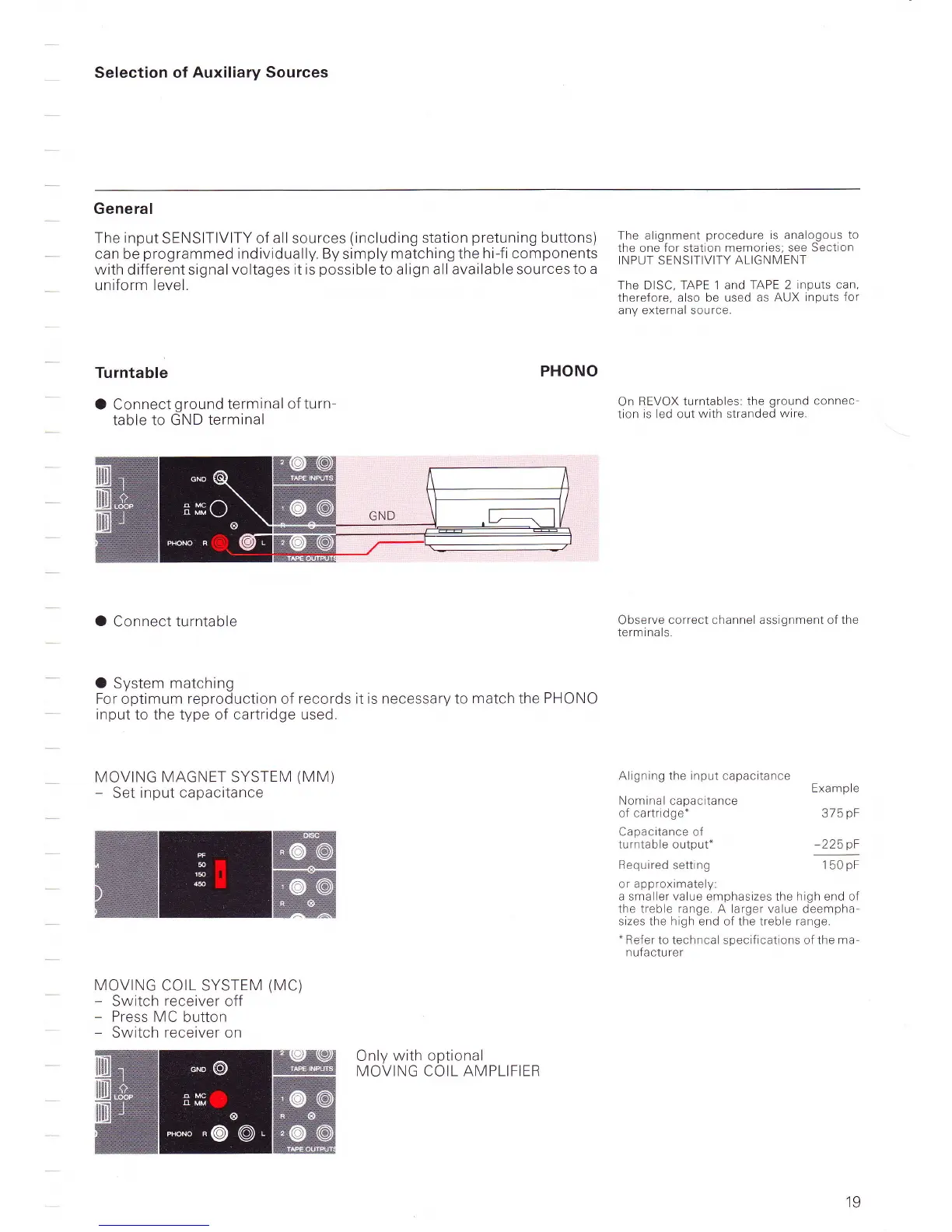

Revox B285 User Manual

Selection of
Auxiliary Sources
General
The input
SENSITIVITY
of all sources
(including
station
pretuning
buttons)
can be
programmed
individually. By
simply
matching the
hi{i components
with different signal voltages it is
possible
to align
all available sources to
a
uniform
level.
The alignment
procedure
is
analogous
to
the one for station
memories; see Section
INPUT
SENSITIVITY
ALIGNMENT
The DISC, TAPE
'1
and
TAPE 2
inputs can,
therefore,
also be used
as AUX
inputs for
any external source.
On
REVOX turntables.
the
ground
connec
tion is led out
with
stranded
wire.
Observe
correct
channel assignment of
the
terminals.
Turntable
O Connect
ground
terminal
of turn-
table to GND
termrnal
O
Connect turntable
O
System
matching
For optimum
reproduction
of
input to the type of cartrrdge
PHONO
records it is necessary to
match
the
PHONO
used.
MOVTNG N/AGNET SYSTEM
(MM)
-
Set
input capacitance
MOVTNG
COrL SYSTEM
(MC)
-
Switch
receiver
off
-
Press MC
button
-
Switch receiver on
Alrgnrng
the
rnput
capacrtance
Nominal capacrtance
of cartridge"
Capacitance of
turntable
output"
Required
setting
or approximately:
Example
375
pF
-225pF
150pF
a
smaller
value
emphasizes the
high
end of
the
treble
ranqe.
A larqer
value
deempha-
sizes the high end of the treble range.
.
Refer to
techncal specif
ications
of the
ma
n
ufa ctu
re r
Only
with optional
MOVING COIL AMPLIFIER
19
