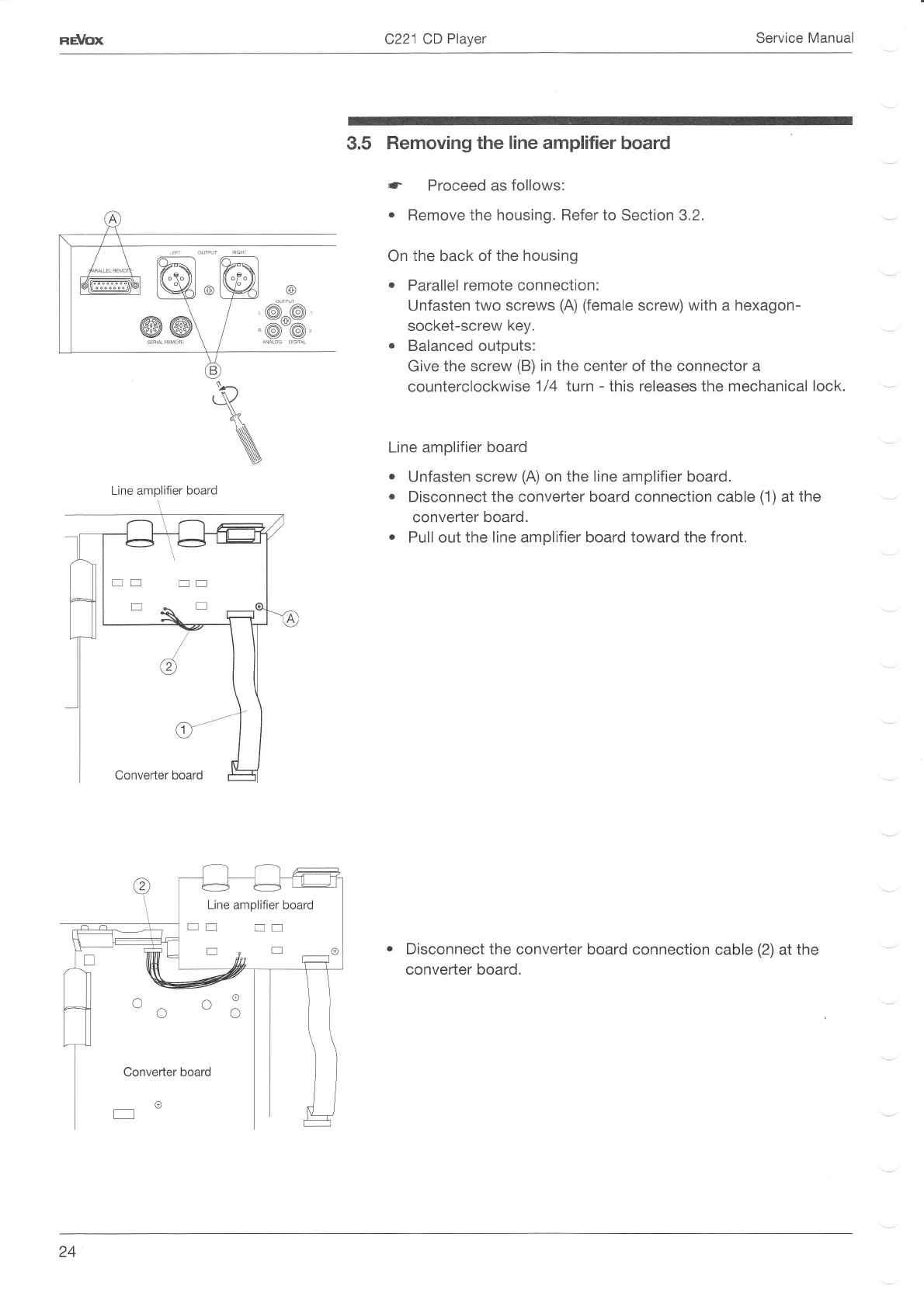

Line amplifier board
3.5
Removing
the line amplifier
board
c-
Proceed as follows:
o
Remove the housing. Refer to
Section 3.2.
On
the
back of
the housing
.
Parallel
remote
connection:
Unfasten
two
screws
(A) (female
screw)with a
hexagon-
socket-screw
key.
.
Balanced outputs:
Give
the
screw
(B)
in the
center of the connector a
counterclockwise
1/4 turn
-
this releases the mechanical
lock.
Line amplifier board
o
Unfasten screw
(A)
on the line
amplifier board.
.
Disconnect
the
converter
board
connection cable
(1)
at the
convefter board.
.
Pull
out
the line amplifier board toward the front.
Disconnect the
conveder board
connection cable
(2)
at the
converter board.
@
@^@
@*@'
E-
NE
Line amplifier
board
E-
E-
24
