Service
Manual
C221 CD
Player
nd/ox
3.6

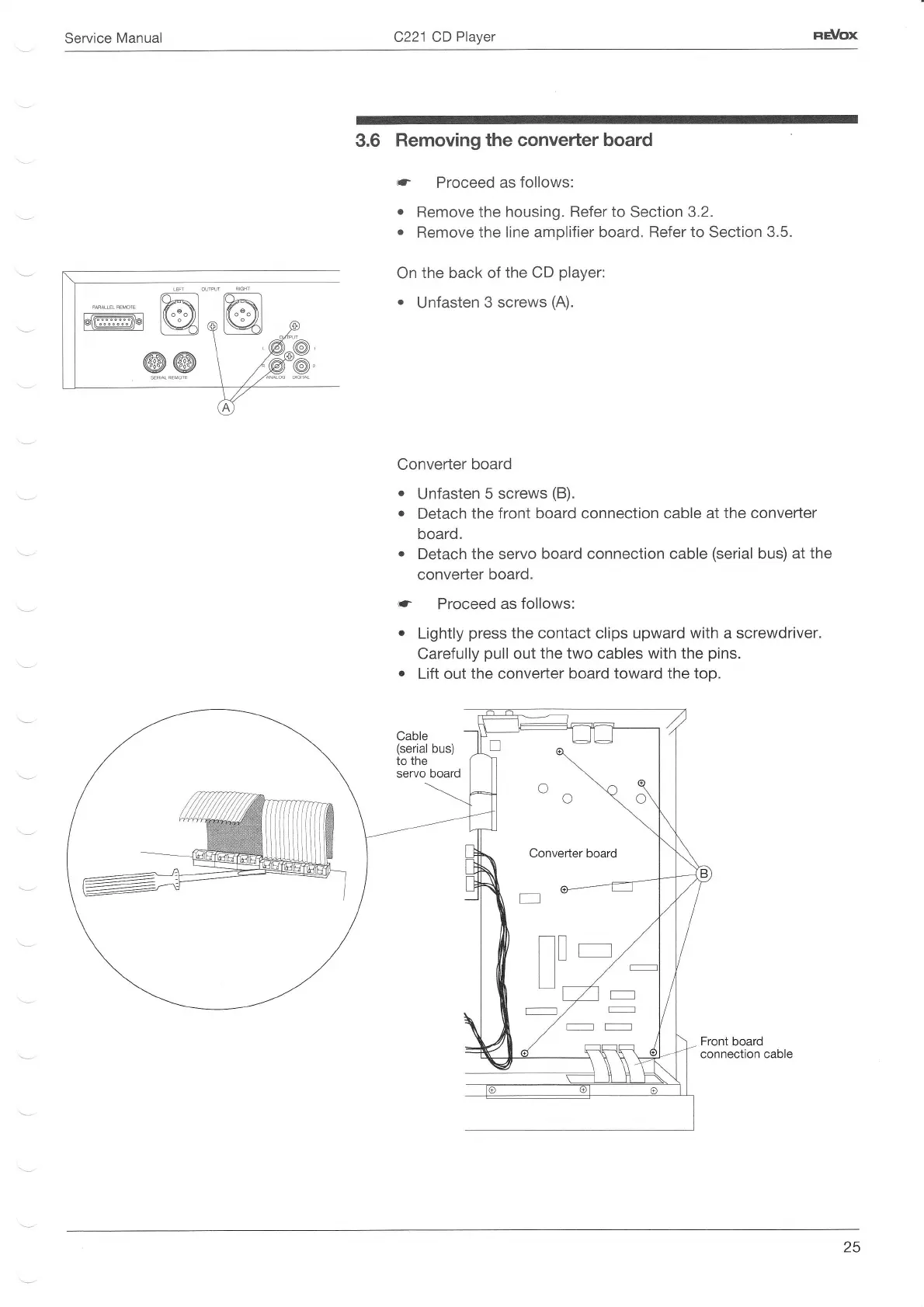

Removing the converter board
{r}
Proceed as
follows:
o
Remove the housing.
Refer to
Section 3.2.
.
Remove
the line amplifier board. Refer to Section 3.5.
On
the back of
the CD
player:
.
Unfasten
3 screws
(A).
Conveder
board
o
Unfasten
5 screws
(B).
e
Detach
the front board connection cable at
the converter
board.
o
Detach the servo
board connection cable
(serial
bus) at
the
converter board.
i-
Proceed as
follows:
.
Lighily
press
the contact clips upward with a screwdriver.
Carefully
pull
out
the two
cables
with the
pins.
.
Lift out the converter
board toward the top.
Cable
(serial
bus)
to the
servo board
Front
board
connection cable
Converter board
25
