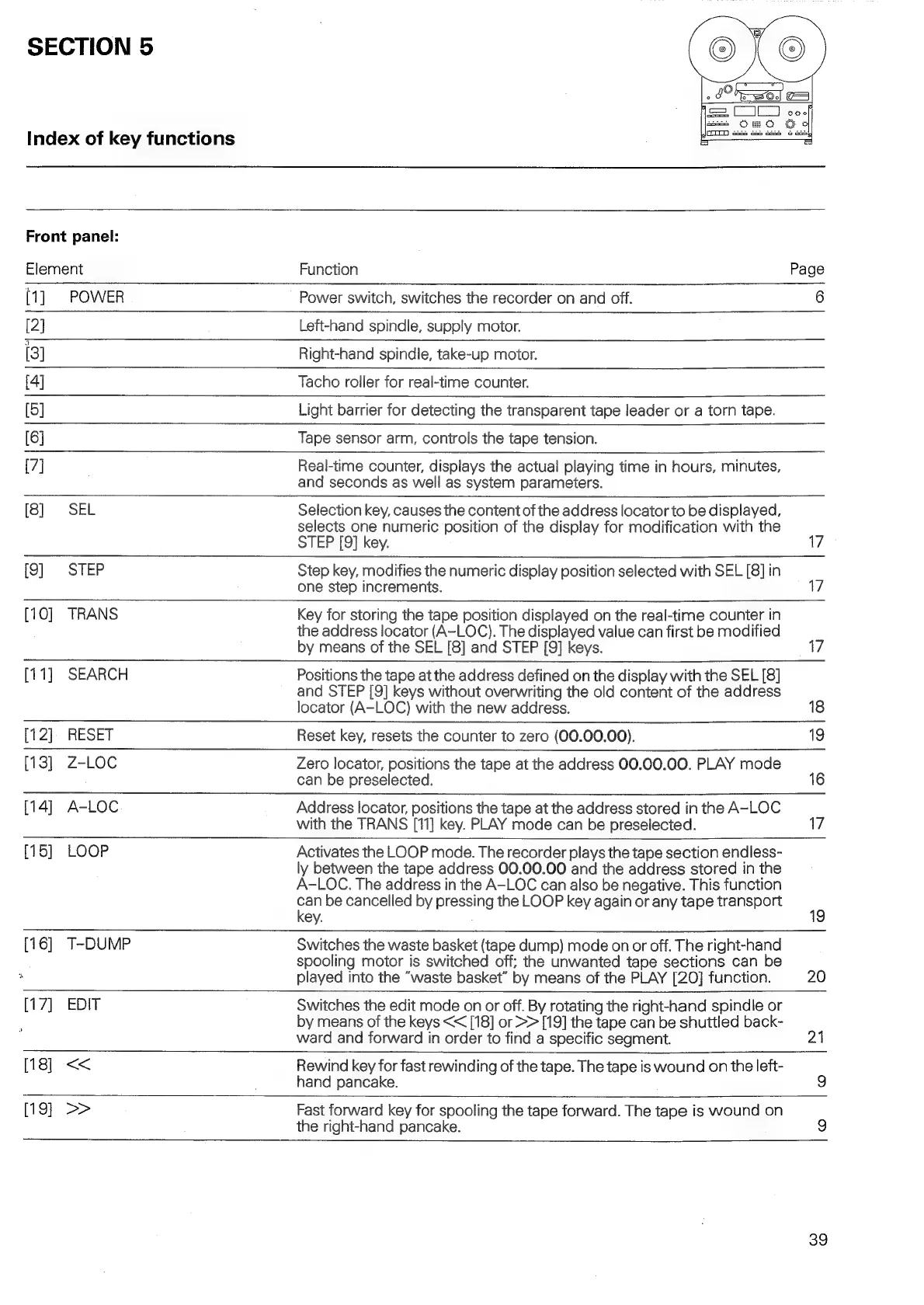

SECTION 5
Index of key functions
Front panel:
Element
(1]
[2]
n)
[3]
POWER
Function
Power switch, switches the recorder on and off.
Page
Left-hand spindle, supply motor.
Right-hand spindle, take-up motor.
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
Tacho roller for real-time counter.
Light barrier for detecting the transparent tape leader or a torn tape.
Tape sensor arm, controls the tape tension.
Real-time counter, displays the actual playing time in hours, minutes,
and seconds as well as system parameters.
SEL
STEP
TRANS
SEARCH
RESET
Z-LOC
A-LOC
[15]
LOOP
[16]
[17]
[18]
[19}
T-DUMP
EDIT
Selection key, causes the content of the address locator to be displayed,
selects one numeric position of the display for modification with the
STEP [9] key.
Step key, modifies the numeric display position selected with SEL [8] in
one step increments.
Key for storing the tape position displayed on the real-time counter in
the address locator (A-LOC). The displayed value can first be modified
by means of the SEL [8] and STEP [9] keys.
Positions the tape at the address defined on the display with the SEL [8]
and STEP [9] keys without overwriting the old content of the address
locator (A-LOC) with the new address.
Reset key, resets the counter to zero (00.00.00).
Zero locator, positions the tape at the address 00.00.00. PLAY mode
can be preselected.
Address locator, positions the tape at the address stored in the A-LOC
with the TRANS [11] key. PLAY mode can be preselected.
Activates the LOOP mode. The recorder plays the tape section endless-
ly between the tape address 00.00.00 and the address stored in the
A-LOC. The address in the A-LOC can also be negative. This function
ah be cancelled by pressing the LOOP key again or any tape transport
ey.
Switches the waste basket (tape dump) mode on or off. The right-hand
spooling motor is switched off; the unwanted tape sections can be
played into the “waste basket” by means of the PLAY [20] function.
Switches the edit mode on or off. By rotating the right-hand spindle or
by means of the keys << [18] or >> [19] the tape can be shuttled back-
ward and forward in order to find a specific segment.
<
>>
Rewind key for fast rewinding of the tape. The tape is wound on the left-
hand pancake.
17
17
17
18
19
16
17
20
21
Fast forward key for spooling the tape forward. The tape is wound on
the right-hand pancake.
39
