Revox C270 User Manual

3
2

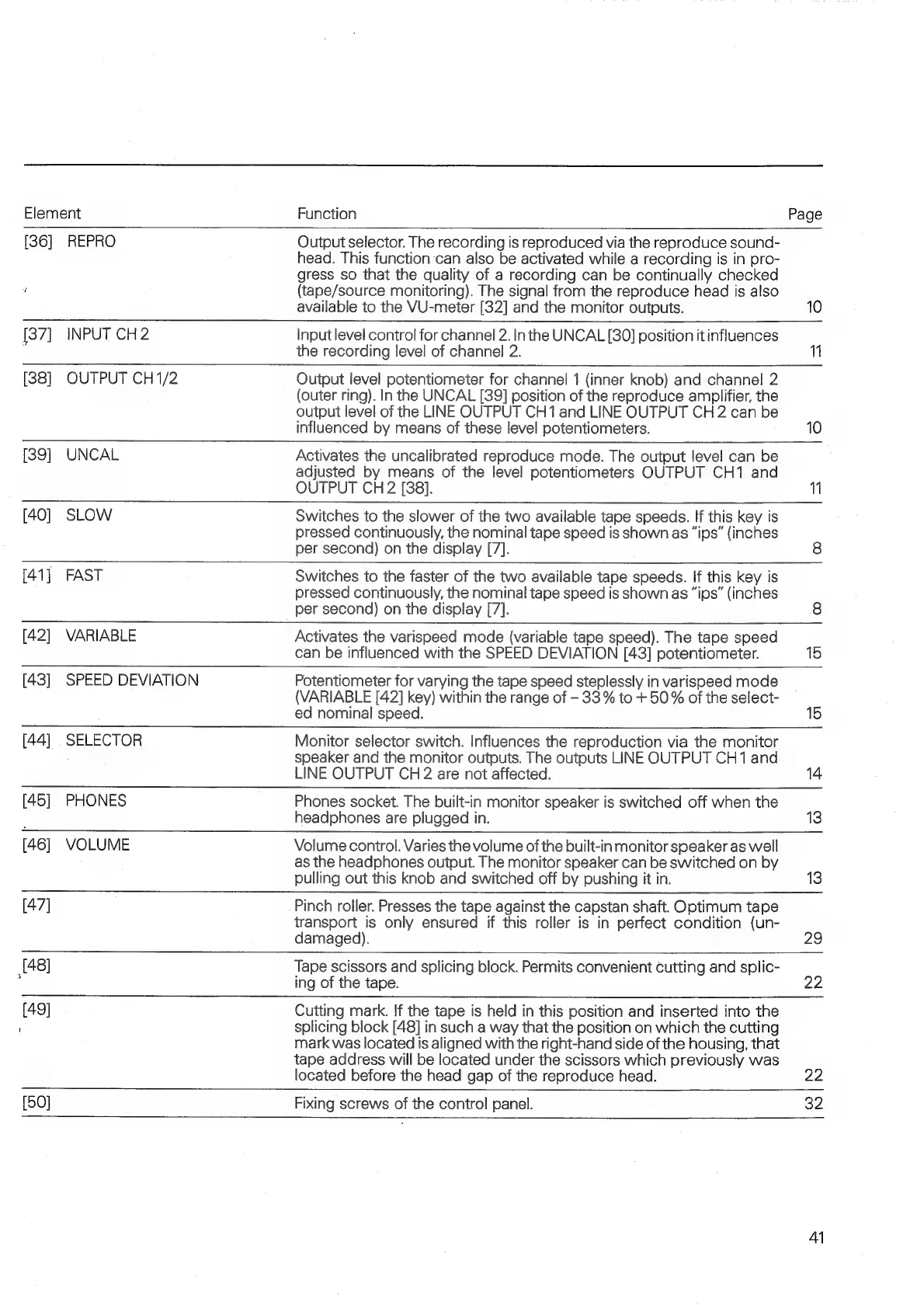

Element
[36]
[37]
REPRO
INPUT CH 2
Function
Output selector. The recording is reproduced via the reproduce sound-
head. This function can also be activated while a recording is in pro-
gress so that the quality of a recording can be continually checked
(tape/source monitoring). The signal from the reproduce head is also
available to the VU-meter [82] and the monitor outputs.
Page
Input level control for channel 2. Inthe UNCAL [30] position it influences
the recording level of channel 2.
[38]
OUTPUT CH1/2
[41]
[42]
[43]
UNCAL
Output level potentiometer for channel 1 (inner knob) and channel 2
(outer ring). In the UNCAL [39] position of the reproduce amplifier, the
output level of the LINE OUTPUT CH1 and LINE OUTPUT CH 2 can be
influenced by means of these level potentiometers.
Activates the uncalibrated reproduce mode. The output level can be
adjusted by means of the level potentiometers OUTPUT CH1 and
OUTPUT CH 2 [38].
SLOW
FAST
VARIABLE
SPEED DEVIATION
Switches to the slower of the two available tape speeds. If this key is
pressed continuously, the nominal tape speed is shown as “ips” (inches
per second) on the display [7].
Switches to the faster of the two available tape speeds. If this key is
pressed continuously, the nominal tape speed is shown as “ips” (inches
per second) on the display [7].
Activates the varispeed mode (variable tape speed). The tape speed
can be influenced with the SPEED DEVIATION [43] potentiometer.
Potentiometer for varying the tape speed steplessly in varispeed mode
(VARIABLE [42] key) within the range of - 33% to + 50 % of the select-
ed nominal speed.
15
[44]
[45]
SELECTOR
PHONES
[46]
[47]
VOLUME
[48]
[49]
[50]
Monitor selector switch. Influences the reproduction via the monitor
speaker and the monitor outputs. The outouts LINE OUTPUT CH1 and
LINE OUTPUT CH 2 are not affected.
Phones socket. The built-in monitor speaker is switched off when the
headphones are plugged in.
Volume control. Varies the volume of the built-in monitor speaker as well
as the headphones output. The monitor speaker can be switched on by
pulling out this knob and switched off by pushing it in.
Pinch roller. Presses the tape against the capstan shaft. Optimum tape
transport is only ensured if this roller is in perfect condition (un-
damaged).
29
Tape scissors and splicing block. Permits convenient cutting and splic-
ing of the tape.
Cutting mark. If the tape is held in this position and inserted into the
splicing block [48] in such a way that the position on which the cutting
mark was located is aligned with the right-hand side of the housing, that
tape address will be located under the scissors which previously was
located before the head gap of the reproduce head.
22
22
Fixing screws of the control panel.
32
Al
