REXROTH MKD090B-047 User Manual

Synchronous Motors MKD Appendix 17-13
DOK-MOTOR*-MKD*******-PR07-EN-P Version7.0 19.05.2004
INS0380 10,0mm²
HDC01.1
-A200N
HDS03.*
HDS04.*
Flange
socket
Motor
connection
INK0605
IKG4170/xxx,x
INS0381/C10
INK0605
IKG4163/xxx,x
INS0381/C10
KL000013v02_EN
e.g.
IKG4161
IKG4162
IKG4163
IKG4167
IKG4170
IKG4168
IKG4176
INS0381/C10
INK0605
Flange socket
INS0383/C10
INS0381/C10
INK0605
IKG4161/xxx,x
INS0382/C10
INK0605
IKG4162/xxx,x
INS0386/C10
INS0380/C10
INS0381/C10
INS0380/C10
Flange
socket
Motor
connection
Order-Type
Ready-made
cable
Order-Type
Ready-made
cable
Order-Type
Ready-made
cable
Options
IKG4167/xxx,x
INS0381/C10
INK0605
INS0459/K10
4
3
2
1
DKR03
AEH
INS0623/K10
7
6
5
4
3
2
1
Connect on
INS0381/C10
INS0386/C10
IKG4162/xxx,x
INK0605
Direct connection
DKC**.3
Connection with intermediate conneciton
In connection with DuraDrive
(HDC*) max. cable length is 25 m
Attention:
INK0605
IKG4176/xxx,x
1
2
3
4
1
2
3
4
RLS0721/K10
RLS0723/K10
INS0381/C10
INK0605
IKG4168/xxx,x
INS0381/C10
1
2
3
4
HMS01.*
HCS02.*
W0054/0070
HMS01.*
W0150/0210
HCS03.*
W0100/0150/
0210

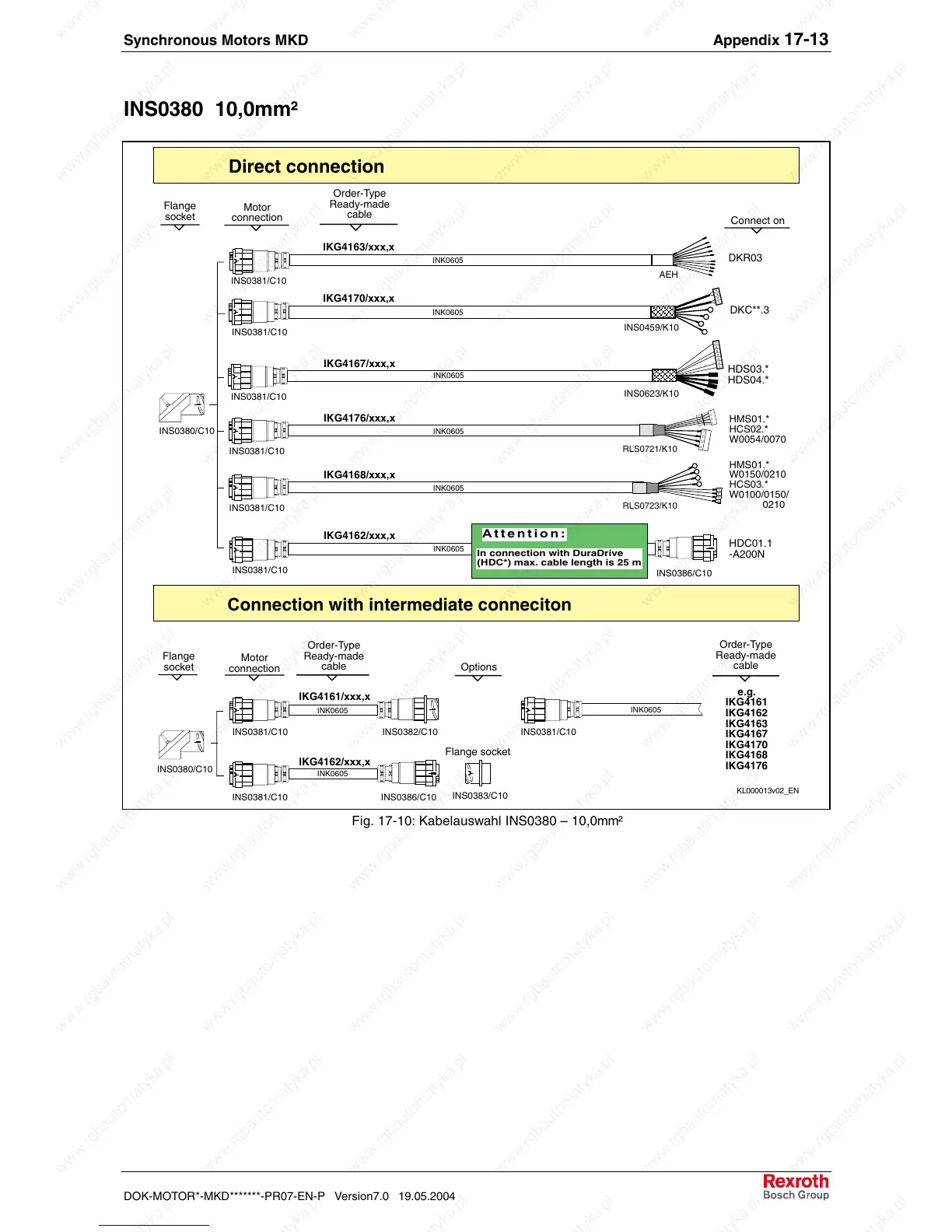

Fig. 17-10: Kabelauswahl INS0380 – 10,0mm²

REXROTH MKD090B-047 Specifications

General

Motor Type	Synchronous motor
Frame Size	090
Motor Length	B
Winding Code	047
Nominal torque	13.5 Nm
Nominal speed	3000 RPM
Max speed	6000 rpm
Protection class	IP65
