RF-Link ABM-4161 - Product Layout; Monitor Components

2

Package Content
Camera x 1
Monitor x 1
Power Adapters x 2
Battery for Monitor ( 3.7V 1000mAH Li-ion ) x 1
User's Manual x 1
Figures and Quick Guide
Product Layout

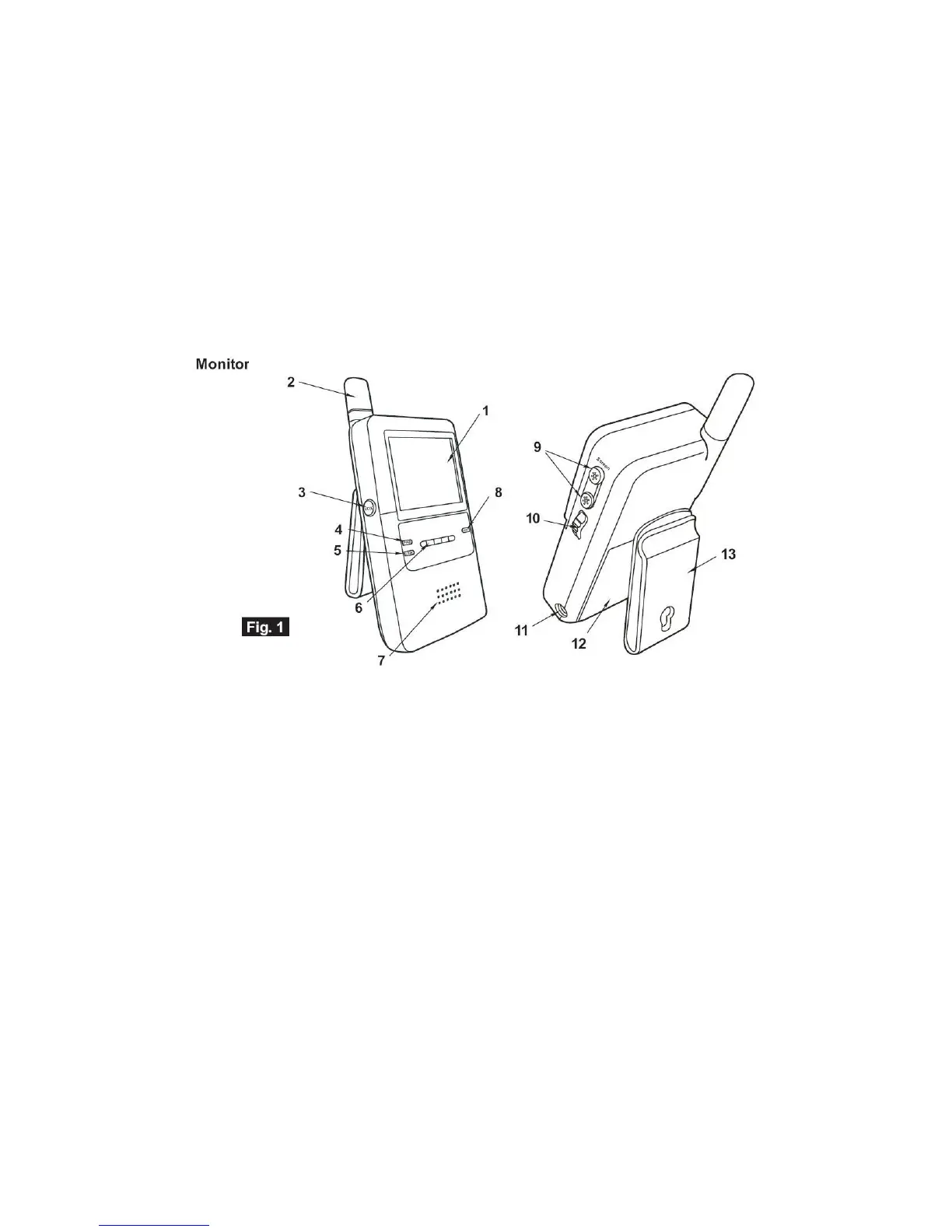

Monitor (Fig. 1)
1. LCD screen
2. Antenna
3. VOX: Voice Operated Transmission button
4. Power indicator LED
5. Link indicator LED
6. Volume indicator LEDs
7. Speaker
8. VOX (Voice Operated Transmission) indicator LEDs
9. Brightness adjustment buttons
10. Power / Volume control
11. Power adapter socket
12. Battery compartment
13. Clamp / Stand
