RF Mogul Eagle Instructions

2

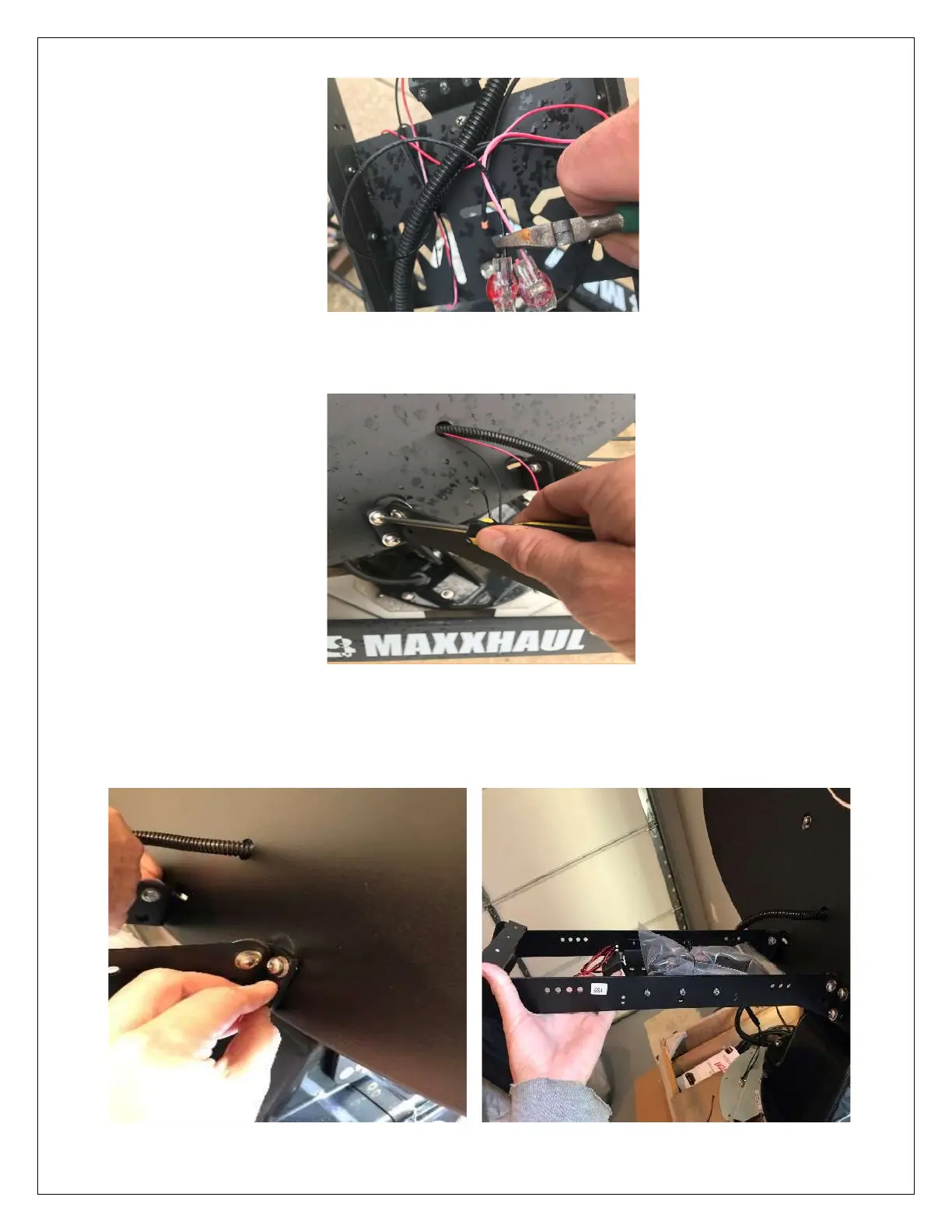

4. Cut the BLACK and RED wires for LED power near the scotch lock.
5. Loosen and remove the coax cables from the LNB
6. Loosen and remove the four (4) bolts that hold the feed arm on the reflector. Set old feed arm aside.
7. Attach the new LNB Arm loosely to the Reflector using 4 of the ¼ x 20 x ¼ inch screws provided. The
LNB Arm should be able to be pivoted upwards into the Reflector after it is installed. Tighten all four (4)
screws down tight at this point.

RF Mogul Eagle Specifications

General

Brand	RF Mogul
Model	Eagle
Category	Satellite TV System
Language	English
