Professional Radio Control
DS-PROTRAP-4
Part Number Description
Range**
(Metres)
Freq
(MHz)
Relay Outputs
(each
@230Vac)

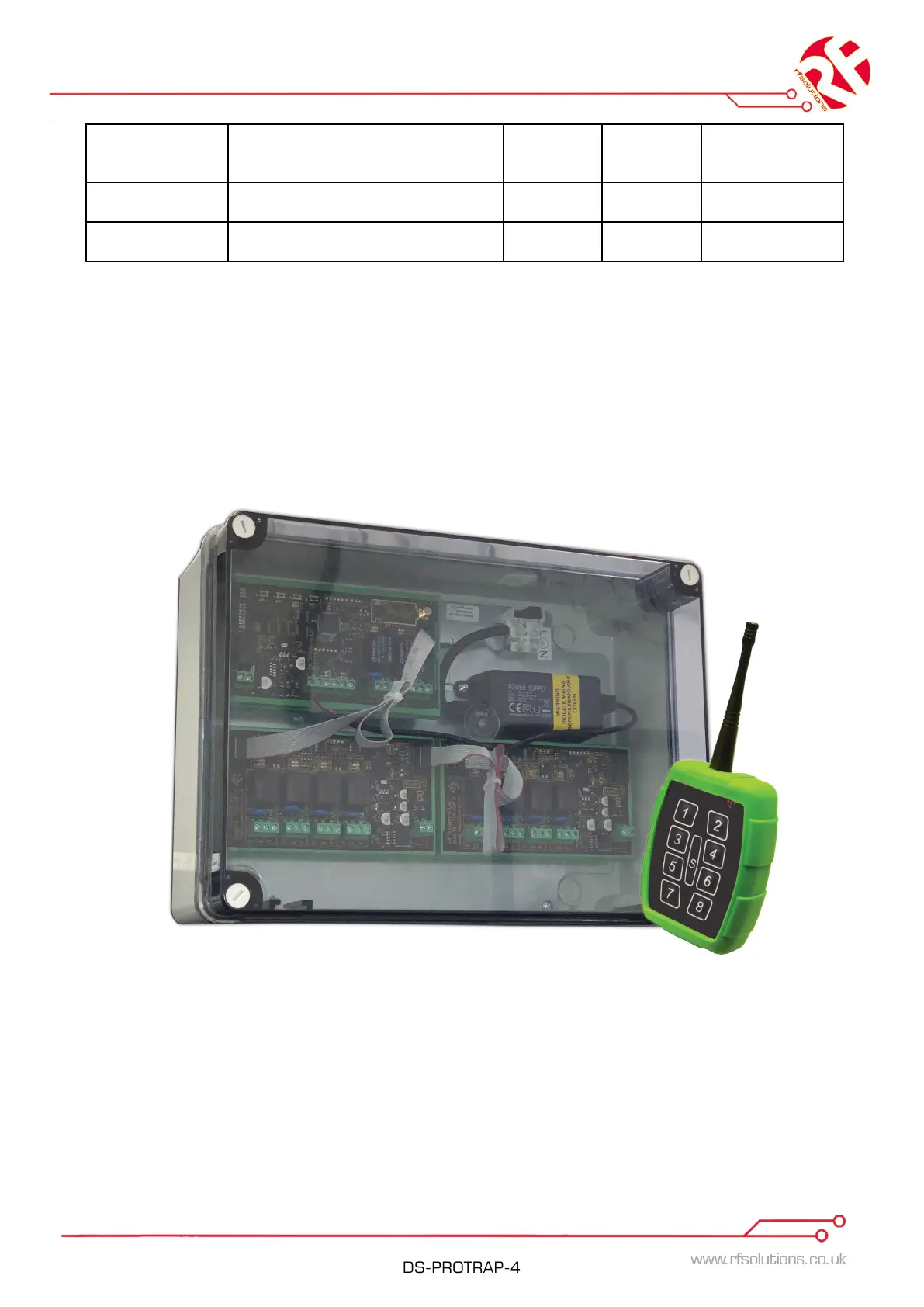

PROTRAP-8S8
8 channel Remote Control Sys-
tem
2000 869.5 8 x 10A
PROSABRE-
8S8
8 channel Remote Control Sys-
tem
4000 869.5 8 x 10A
Receiver Unit
DIN Rails mounted on steel plate
Integrated 12Vdc moulded Power Supply
5 Amp Fused terminal block
Material GW PLAST 120 °C
Enclosure Dimensions
External 315 x 235 x 130mm
Internal 300 x 220 x 120mm
Learning Capacity: The receiver has the capacity
to learn up to 31 units (Where 1 unit is defined
as a button on a transmitter)
PCB Dimensions
725-TRX 136 x 78 x 42mm
725-OP 136 x 78 x 42mm
A 12Vdc power supply is incorporated. 12Vdc is presented on a fused terminal block. A Gland is
supplied to enable power to enter the enclosure.
** Range stated is optimum, direct line of sight. In worst conditions this can be reduced by up
to 50%
Receiver Unit
The receiver consists of interchangeable modules which are connected via ribbon cables.
(as shown below).
Antenna
The Antenna is held internally, this is to save drilling the enclosure on the top. This may have
some effect to the range for specific applications which may require the antenna externally
mounted. At all times please ensure that antenna is pointing in a vertical direction and away
from high interference sources.
