RF SOLUTIONS PRO TRAP Series - Page 3

Professional Radio Control
DS-PROTRAP-4

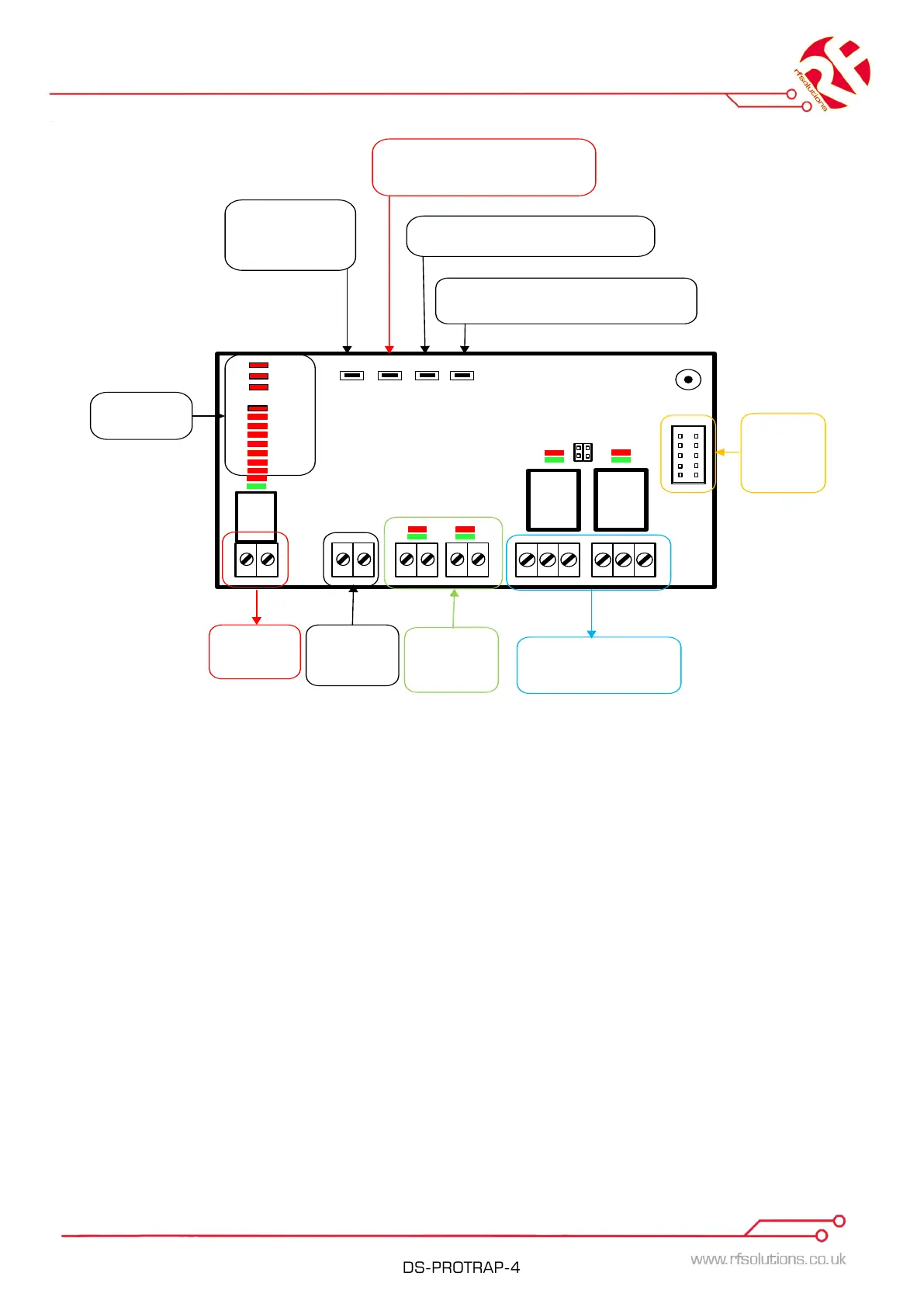

Timer
WatchDog Mode Pair
Power
Tx
Rx
50%
100%
10%
Digital
Input
1
Digital
Input
2
Relay
Output
1
Relay
Output
2
Signal Strength
Outputs
changeover contacts
12V 10A
230V 5A
Inputs
unused in
PRO systems
Power Supply
9-32V
AC or DC
Received
signal strength
LED’s
WatchDog
Press to initiate watchdog
transmissions (also used for range
test)
Antenna
Connect
Additional
Modules
Here
Pair
Press once to auto sync. See Advanced
operation for other pairing and erase
options.
Mode
Select power output and operating
Mode.
Timer
Sets ouput timers
see timer settings
for more details
NO COM NC NO COM NCNO COM
Watchdog
unused in
PRO system
Overview of Features
PRO-TRAP/SABRE has many ‘optional’ features. These are summarised below and
explained in detail later in this document.
Auto or Manual Pairing: Modules can be auto paired together in banks or any individual button can
be paired to any individual output(s).
TIMER: The outputs can be set to Momentary/Latching /Timed
Additional Modules: Additional Output modules or can be connect (max 16 of each)
Please note: When using more than 2 output boards VCC must be connected to the 725-OP boards.
Please note: Inputs and watchdog are unused on the 725-TRX in the PRO systems.
