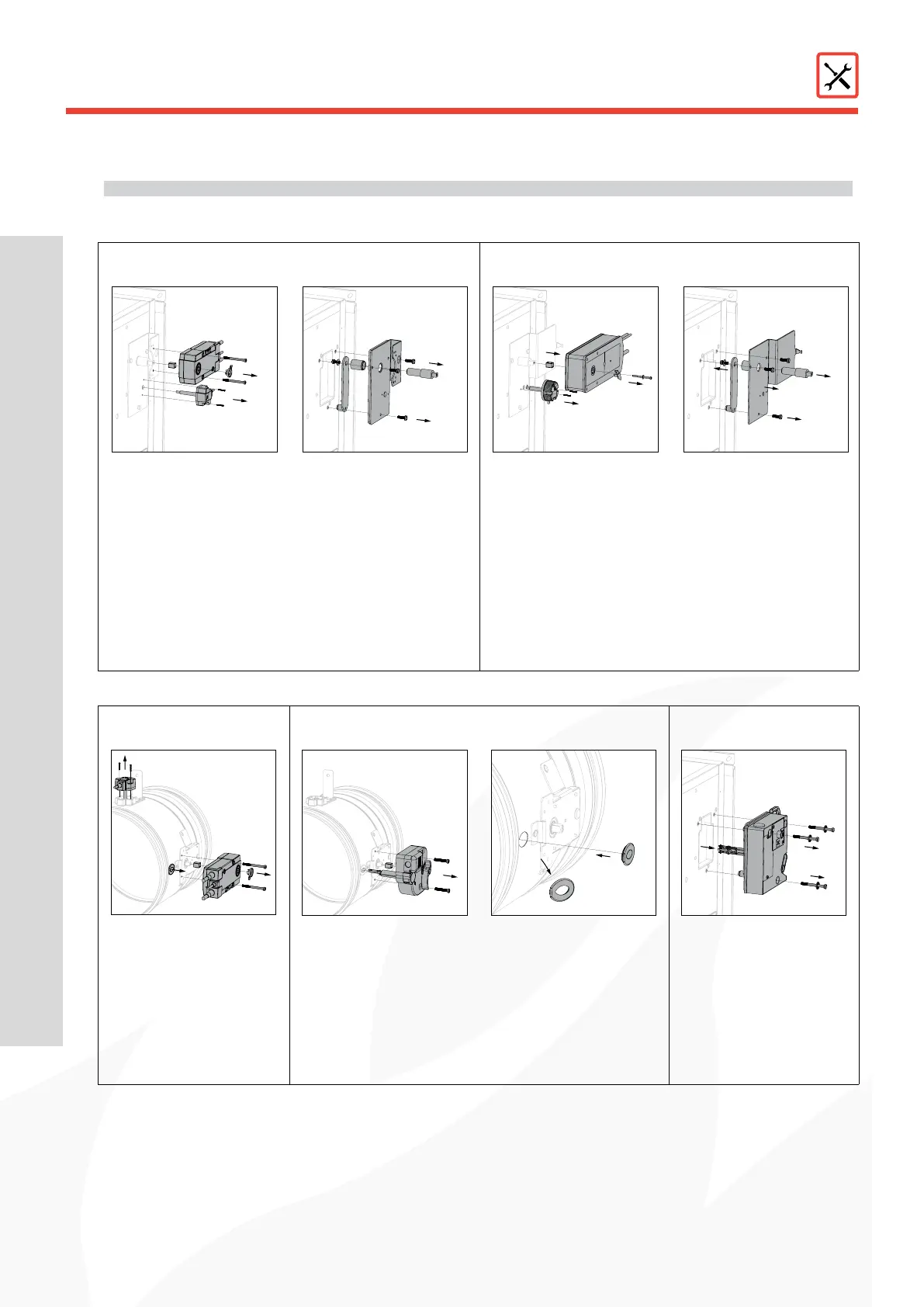

dismantlinG the PreviOus mechanism
Type BFL(T) and BFN(T) on
CR2/CU2/CA2/CU4/CU2-15:
Type B(L)F(T) on
CR2/CU2/CA2/CU4/CU2-15:
1. Unlock the motor by
interrupting the power
supply.
2. Loosenthexingscrews
of the motor and remove
the old motor.
3. For types BFLT/BFNT:
Unscrew the thermo-
electric fuse and remove
it.
4. Loosen the three screws
and remove the base
plate.
Set aside the operating
arm, screw and washer
to use on the new base
plate.
1. Unlock the motor by
interrupting the power
supply.
2. Loosenthexingscrews
of the motor and remove
the old motor.
3. For type B(L)FT: Unscrew
the thermo-electric fuse
and remove it.
4. Loosen the three screws
and remove the base
plate.
Set aside the operating
arm, screw and washer
to use on the new base
plate.
Type BFL(T)/BLF(T) on
CR60/CR120/CU-LT(1s):
Type MFUS(P) on
CR60/CR120/CU-LT(1s):
Type CFTH on
CR2/CU2/CA2/CU4/CU2-15 :
1. Unlock the motor by
interrupting the power
supply.
2. Loosenthexingscrews
of the motor and remove
the old motor.
3. For types BFLT/BLFT: un-
screw the thermo-electric
fuse and remove it.
4. Remove the old
membrane.
1. Unlock the existing
mechanism by pressing
the unlocking button.
2. Loosenupthetwoxing
screws and dismantle
the mechanism.
3. Replace the old
membrane by the new
(unperforated) one.
1. Unlock the existing
mechanism.
2. Loosen up the
threexingscrews
and dismantle the
mechanism.
