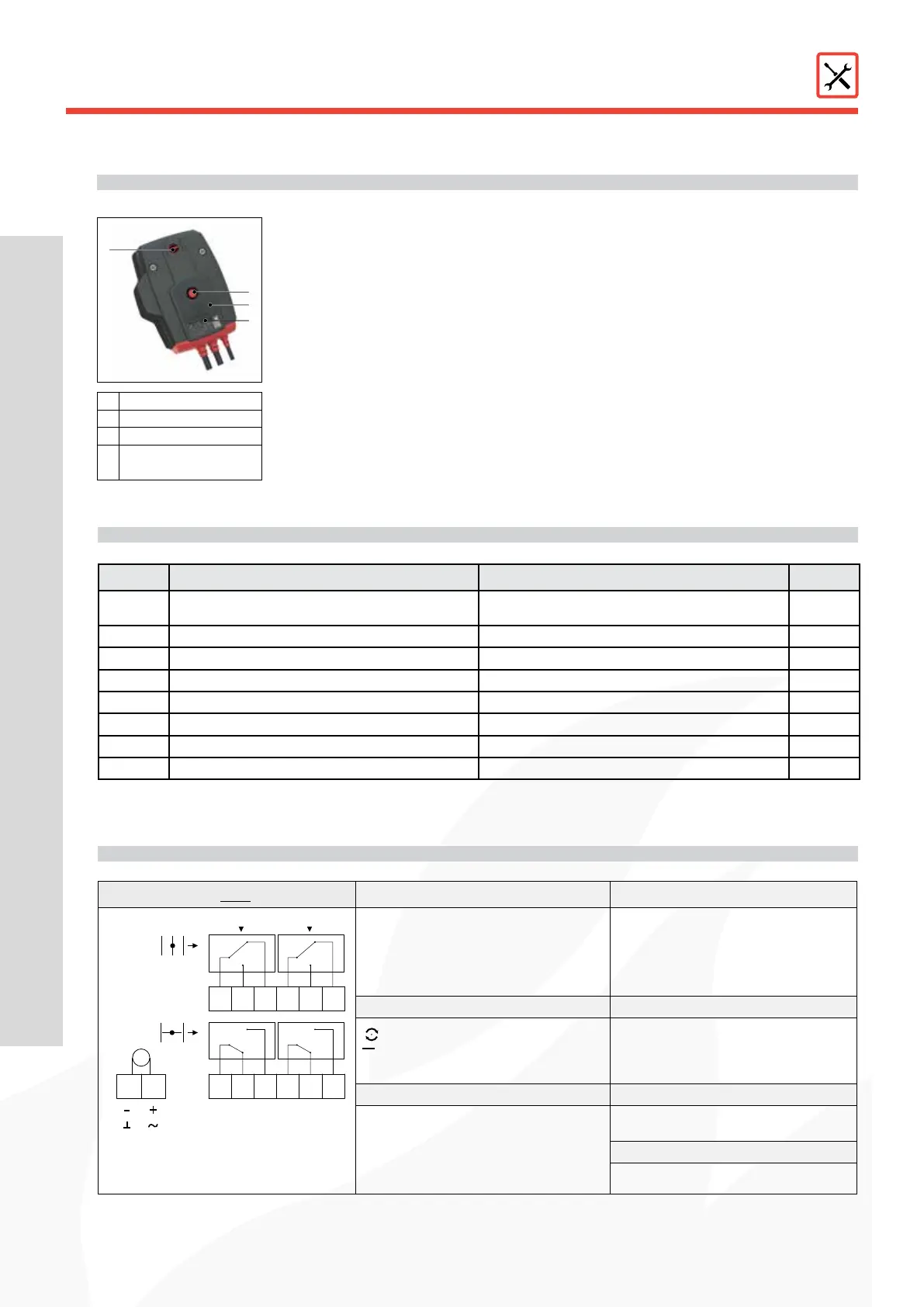

Rf-t ONE Series User Manual

12
ONE
Actuator
K132-D
01/2018
English
detailed characteristics
list Of Parts
2
1
3
4
ONE
Nominal voltage Running time
ONE T 24 FDCU: 24VAC/DC -10%/+20%
ONE T 24 FDCB: 24VAC/DC -10%/+20%
ONE T 230 FDCU: 230VAC ±15%
ONE T 230 FDCB: 230VAC ±15%
motor: (Cabled) <75 sec
motor: (Battery 9V) <85 sec
spring: 7Nm <30 sec
Power consumption Noise level
4,0W
0,1W
motor: max 58 dB (A)
spring: max 60 dB (A)
Switches Degree of Ingress Protection
max 1A 60V
IP 54
Cable cross-section
0,75 mm²
DC FC
24VDC
24VAC
230VACN L
65
4
3
1
2
6543
1
2
M
BK RD
DC : Schakelaar open positie brandklep
FC : Schakelaar gesloten positie brandklep
paars
rood
wit
oranje
roze
grijs
PrOduct PresentatiOn
1 Unlocking button
2 Blade position indicator
3 LED
4
Battery compartment
(to reset motor)
Description Code Quantity
1 Actuator
ONE T 24 FDCU / ONE T 24 FDCB /
ONE T 230 FDCU / ONE T 230 FDCB
1
2 Fastening screw motor DIN 912 M6x65 2
3 Membrane PL AME-D218 1
4 Base plate motor FE-VOOR-265 1
5 Axis motor PLAME-D027 1
6 Fastening screw base plate DIN 933 M6x20 3
7 Fusible link FUS72 ONE 1
8 KIT label (yellow) ETIK-D042 1
Thespring-returnactuatorONEisdesignedtosimplyoperateRf-tredampersofallsizes,
automatically or remotely.
When powered, the actuator moves the damper blade into its stand-by position. When
the power is interrupted or when the temperature in the duct exceeds 72°C, the internal
armed spring brings the damper blade back into its safety position. The motor can be reset
manually by using a standard 9V battery.
An integrated LED indicates the open or closed position of the motor. The (included)
beginning and end of range switches indicate the position of the damper blade (on a
controller panel).
Four models are available, 24 or 230 volts, with FDCU or FDCB position switches.
PATENT PENDING
