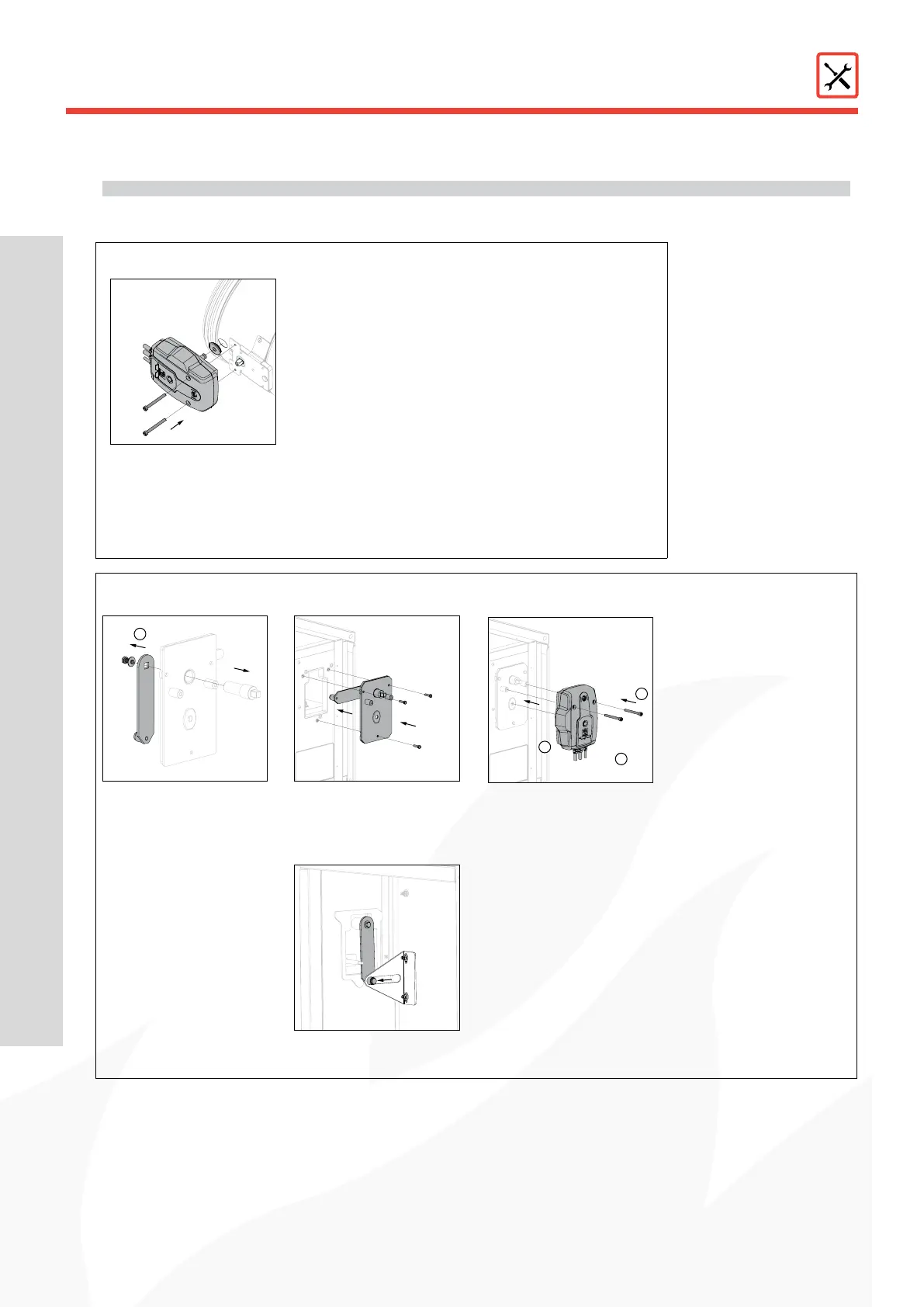

mOuntinG the new mechanism
On CR60/CR120/CU-LT(1s)
1. Put the new membrane
in place.
2. Make sur the damper
blade is closed.
3. Fasten the ONE on
the damper with the
supplied (2) M6 screws.
4. Connect the motor
according to the wiring
diagram.
5. Test the functioning of
the motor.
6. Apply the label 'KIT' to
the motor.
On CR2/CU2/CA2/CU4/CU2-15
1
1. Retrieve the operating
arm, bolt and washer
of the old mechanism
and mount them with
the newly supplied axis
on the base plate (use
universal grease around
the axis).
2. Fasten the base plate
with the 3 supplied
screws. Please use the
indicated holes.
3. Caution: make sure the
operatingarmisttedin
the transmission arm.
4. Make sur the damper
blade is closed.
5. Fasten the ONE on
the damper with the
supplied (2) M6 screws.
6. Connect the motor
according to the wiring
diagram.
7. Test the functioning of
the motor.
8. Apply the label 'KIT' to
the motor.
3
6
5
If the product is manipulated in any other way than described in this manual, Rf-Technologies
will decline any responsibility and the guarantee will immediately expire!
