HYBRID I/O
The Hybrid I/O module provides three BNC connectors. All three have a spark gap protection device.
The middle port (J2) is the line port for both the X-Hybrid and the Skewed Hybrid. Ports J1 and J3 are
TX (input) ports when an X-Hybrid is connected. J1 is the TX (input) port and J3 is the RX (output)
port when the Skewed Hybrid is connected.
(99134)
HYBRID I/O
J2J3 J1

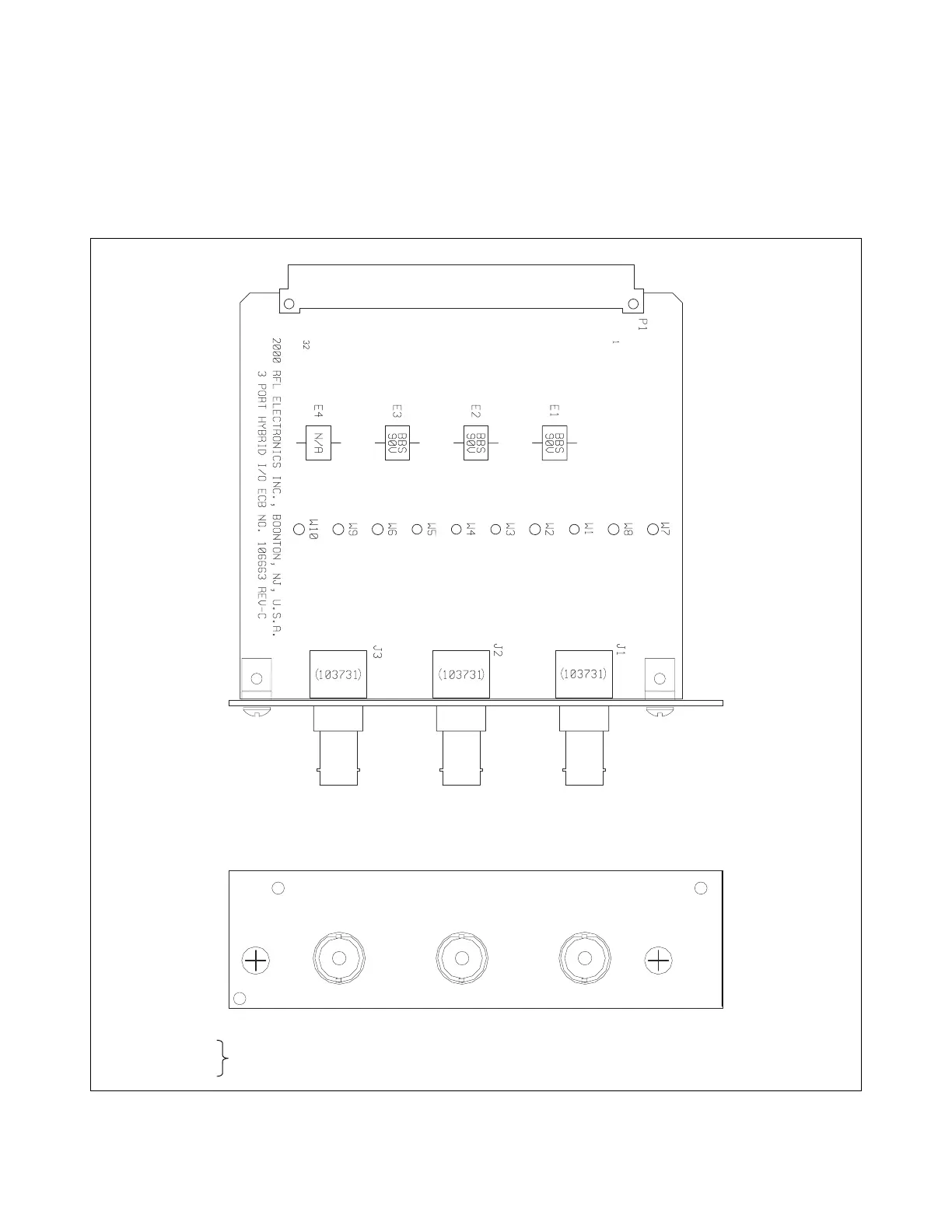

Figure 6. RFL 9780 3-Port Hybrid I/O (C-106660-C)
Typical TX2 Line TX1 X-Hybrid
Connections RX Line TX Skewed Hybrid
