12
Ducting
DUCTING
ST-A1220-11-X0
CUT OUT USING
EMBOSSED ANGLES
AS A GUIDE
FOR PROPER SIZE
23” X 14”
A
I
R
F
L
O
W

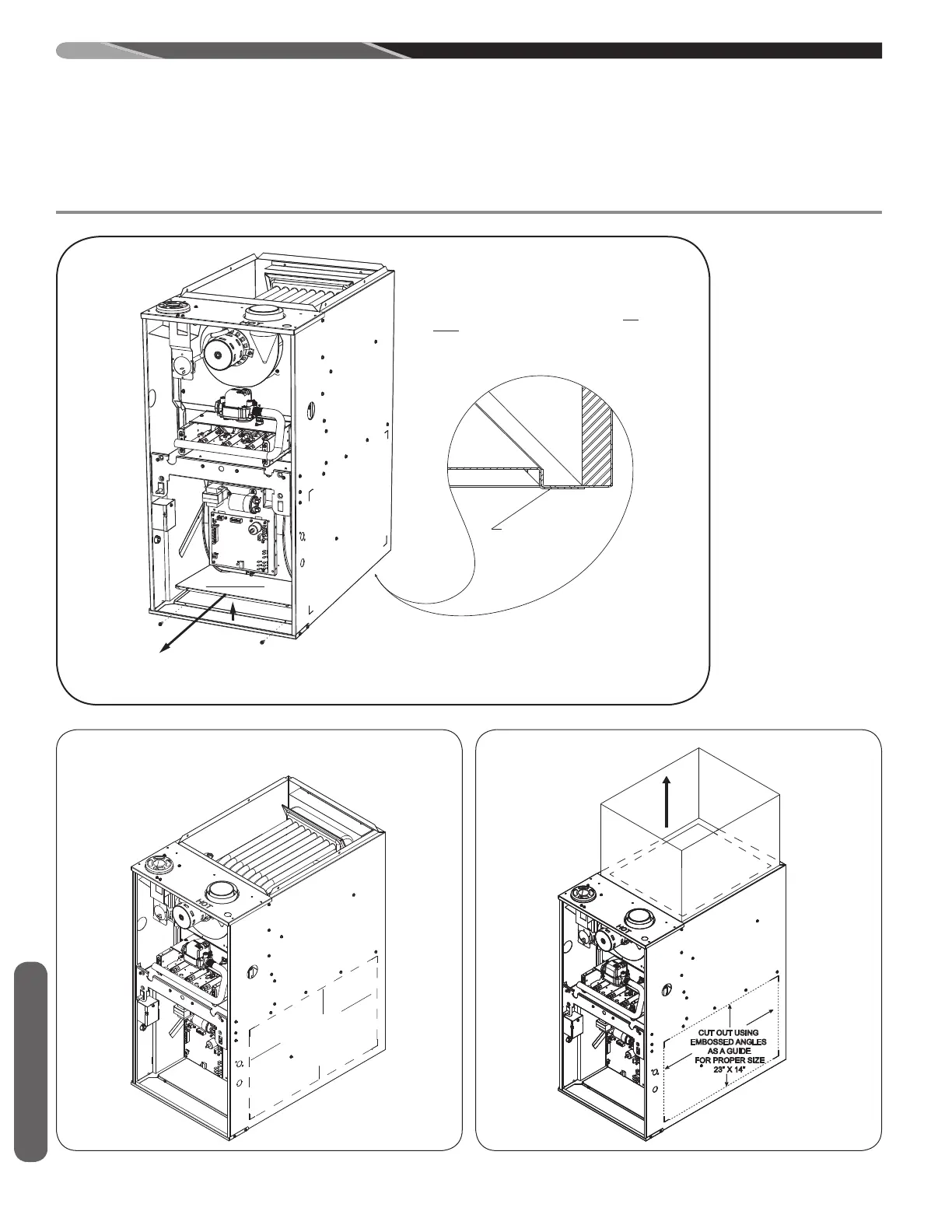

FIGURE 7
ST-A1220-11
CUT OUT USING
EMBOSSED ANGLES
AS A GUIDE
FOR PROPER SIZE
23” X 14”
FIGURE 6
ST-A1220-08
FIGURE 5
NOTE:
SOLID BASE PLATE PROVIDED WITH (-)801P
MODELS ONLY.
WHEN SOLID BASE PLATE IS USED . TAPE
AROUND BOTTOM FLANGES OF CABINET
BEFORE THE UNIT IS INSTALLED.
LIFT UP, PULL OUT
1. REMOVE 2 SCREWS, LIFT BASE UP, SLIDE FORWARD TO REMOVE.
2. INSTALLATION IS REVERSE OF REMOVAL.
** VERIFY REAR FLANGE IS SEALED PROPERLY AS SHOWN IN DETAIL.
ST-A1220-10-X0
SOLID BASE FLANGE
FITS UNDER
CABINET BOTTOM
ST-A1220-10
NOTE:
SOLID BASE PLATE PROVIDED WITH 80%
SINGLE STAGE CONSTANT TORQUE
MODELS ONLY.
WHEN SOLID BASE PLATE IS USED, TAPE
AROUND BOTTOM FLANGES OF CABINET BE-
FORE THE UNIT IS INSTALLED.
