Rheem 802V SERIES

54
Integrated Furnace Control
INTEGRATED FURNACE CONTROL
1
2
R
C
HUM STAT
W1
W2
G
Y1
Y2
B
TWO-STAGE
THERMOSTAT
(NON-COMMUNICATING)
TWO-STAGE / MODULATING
GAS FURNACE CONTROL
CONDENSER
UNIT

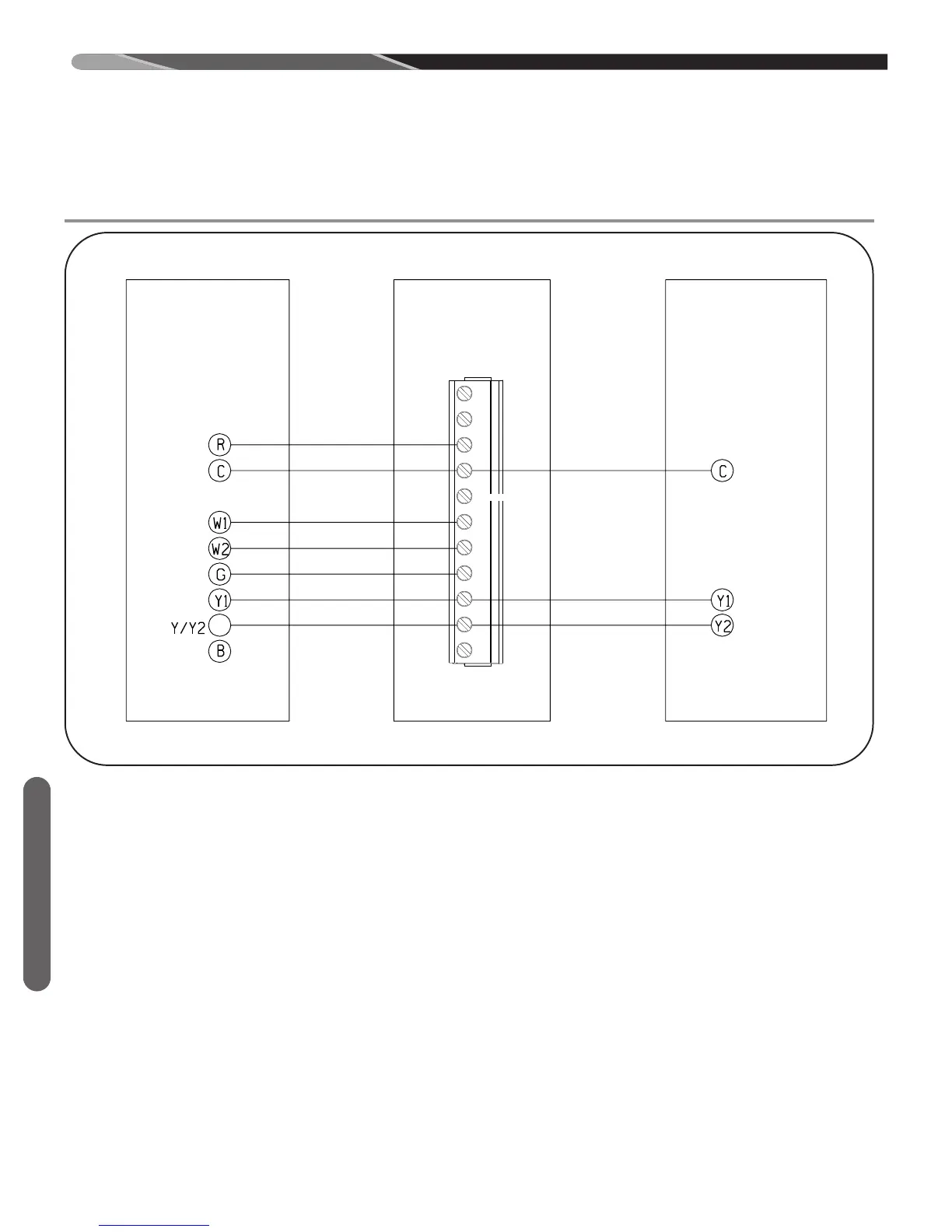

FIGURE 39
WIRING DIAGRAM FOR A LEGACY TWO-STAGE THERMOSTAT.
ST-A1194-62-04
THERMOSTAT WIRING DIAGRAMS-CONDENSING UNIT
(NON-COMMUNICATING)
