INSTALLATION INSTRUCTIONS

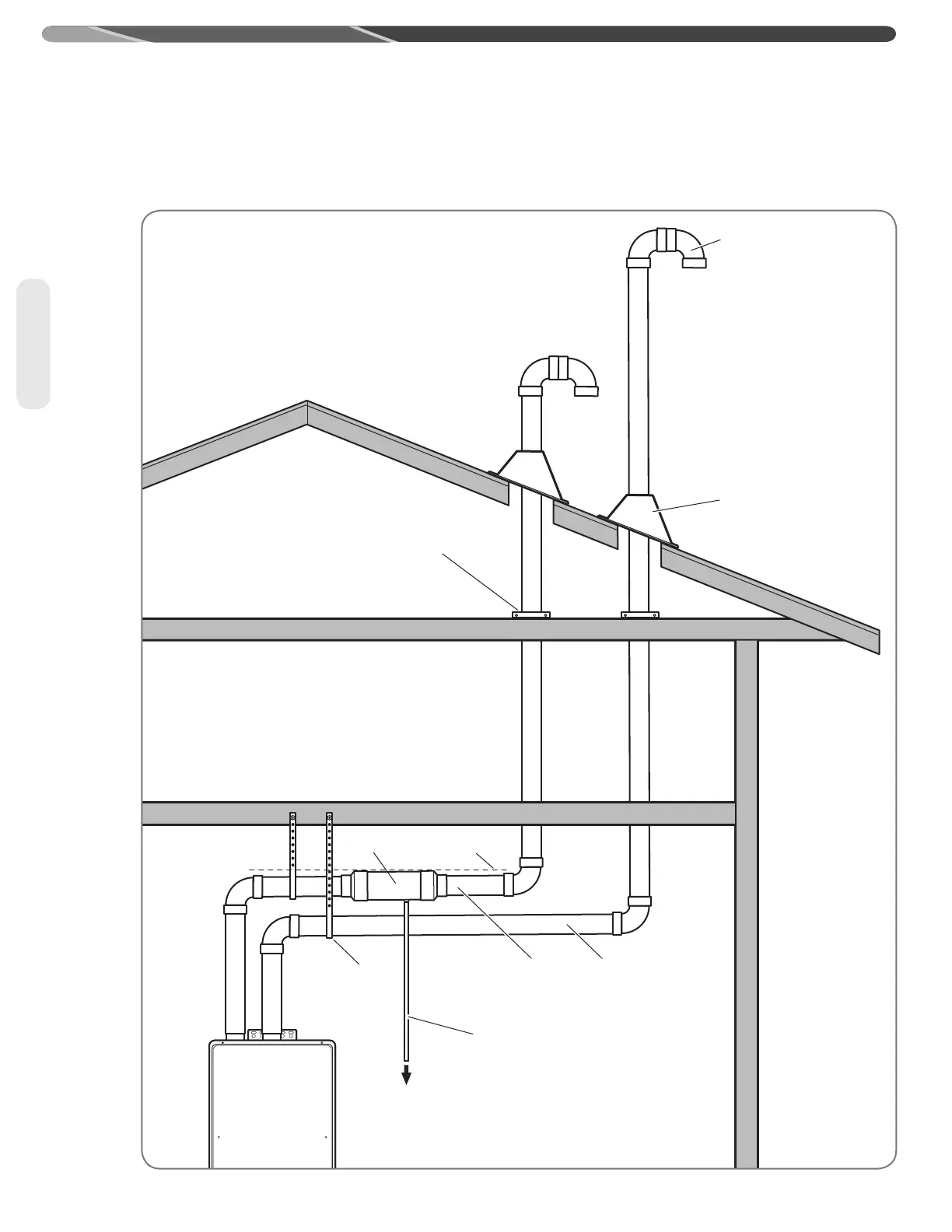

Standard Vertical Vent Termination
To Suitable Drain
Venting
Adjustable Roof Flashing
Support Clamp
Upward Slope
Support Hanger
Air Intake
Pipe
Exhaust Vent
Pipe
*Note: Condensate trap should be installed as close as practical to the water heater.
Condensate
Drain
Optional
Condensate
Trap*
To
Suitable
Drain
A similar condensate trap is allowed as long as it prevents rain, condensate or any
other liquid from entering into the water heater.
