64
Electrical
INSTALLATION INSTRUCTIONS

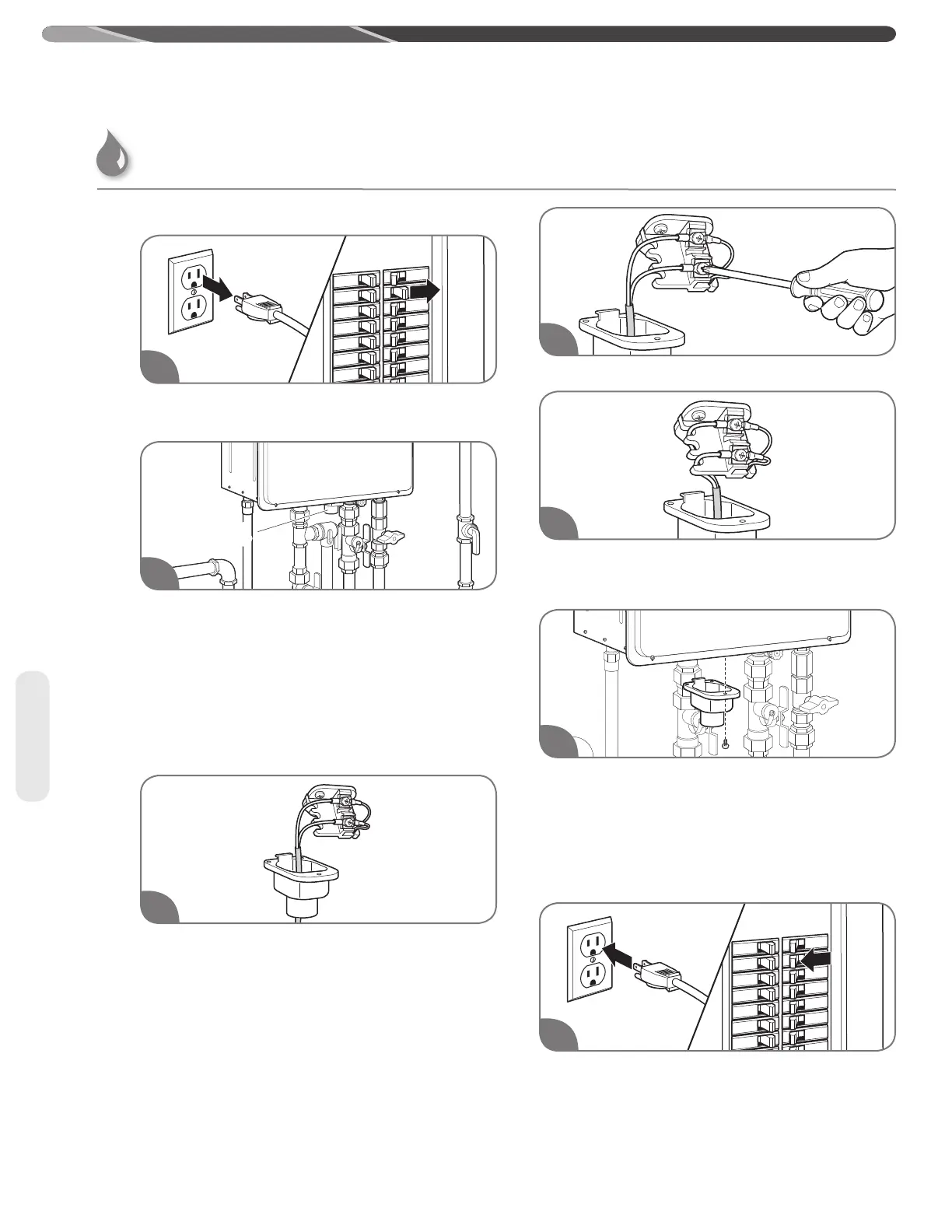

Connecting the Remote Control to the Water Heater:
Ensure that the power to the water heater has been
disconnected.
Loosen the one screw located on the remote control
connection cover. The connection cover is made of
white plastic.
NOTICE:
DO NOT REMOVE FRONT PANEL. Remote control wires are
connected on the bottom of the unit.
There are NO accessible remote control terminals
inside the water heater.
Connect the remote control extension cables from
the remote control to the remote control connection
terminals.
NOTICE:
The remote control wire connection terminals are not
polarity-sensitive.
Firmly tighten the terminal screws by hand.
Secure the remote control extension cable on the hook
located on the side of the remote control connection
base.
Reinstall the remote control connection cover and
secure with the one screw.
NOTICE:
DO NOT connect power until venting installation is
complete.
Switch on the power supply to the water heater.
Check for proper operation of the remote control and
the water heater.
1
3
4
Remote Control
Connection Cover
Remote Control
Connection Cover
2
5
6
7
Electrical Wiring (cont.)
