38
G
B
135
110
55
4
5
1
2
3
6

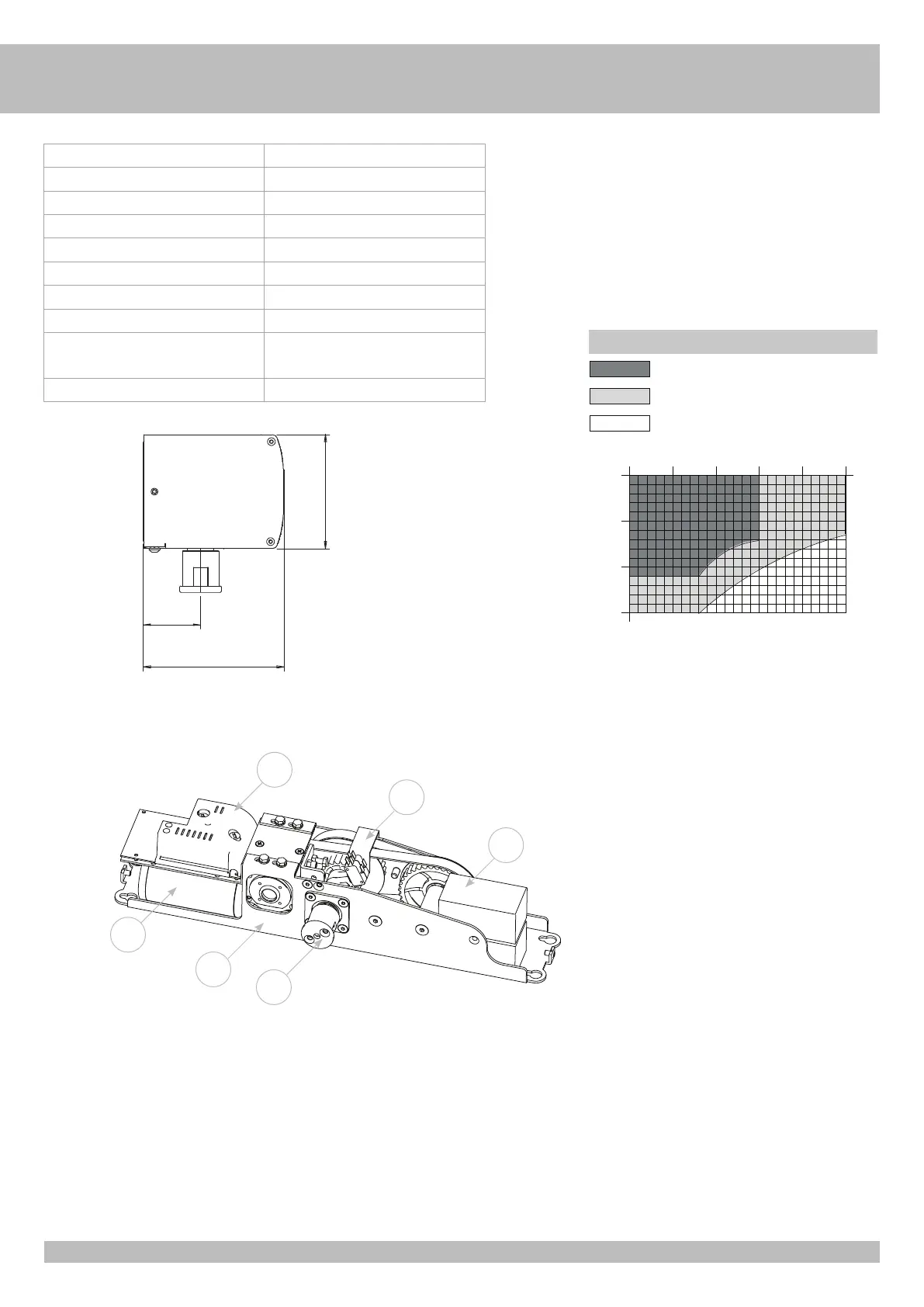

IDENTIFICATION OF THE PARTS
1. UP control panel
2. Reduction group
3. Back-up batteries ACG9631
4. 24 Vdc motor with encoder
5. Operator frame
6. Bush for arm connection
TECHNICAL DATA UP
Opening/closing time 1,5÷8 s / 90°
Maximum torque 45 Nm
Power supply full range 115/230 Vac 50/60 Hz
Stand-by Absorption 3 W
Maximum Absorption 100 VA
Accessories power supply 24 Vdc = 0,5 A max
Service 100%
Operating temperature -20°C / +55°C
(batteries: -10°C / +50°C)
Protection degree IP 31
Using the automation with the maximum weight could reduce its
performances.
The frequency of use is only indicative.
Data are collected under average conditions of use and cannot be
defined for each single case.
Each automatic access may be affected by variable elements
such as: friction, balancing and environmental factors which
may substantially alter both the duration and the performance
characteristics of the automatic access or parts thereof.
The installer shall be responsible for adopting suitable safety
conditions for each particular installation.
Conditions of use
Recommended dimensions
Limit dimensions
Use not allowed
0
0
500
1000
1500
mm
50 100 200 150 250
kg
INSTALLATION LAYOUT
