Ribind UP - Limit Switches Adjustment; Stop and Safety Adjustment for Opening Limit Switches

45

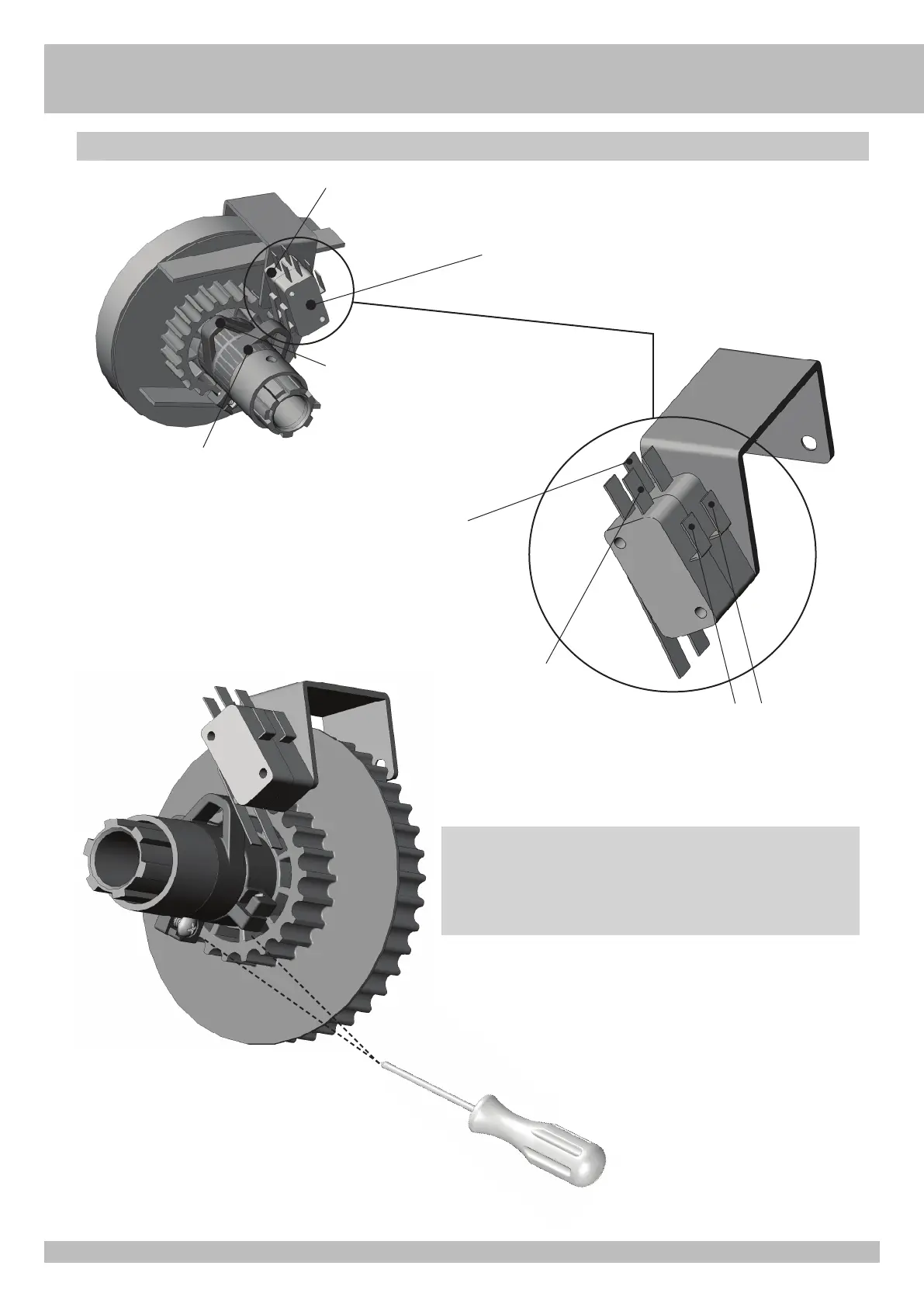

Stop and exclusion safety in opening limit switches adjustment
“A” limit switch that excludes the safety sensor in opening
“B” limit switch for maximum opening stop
Cam that activates the limit switch for maximum opening stop
Cam that activates the limit switch that excludes the safety sensor in opening
NC terminal FCA11
NO terminal PHOTO RAL 12
COM terminal COM10 or 31
A
B
WARNING:
In order to adjust the cams, loosen the screws 1 and 2 (pic.A).
The cams adjustment must be done operating manually the leaf, before
doing the set-up.
Once the adjustments are over, tighten the screws.
Pic. A
1
2
G
B
LIMIT SWITCHES ADJUSTMENT (to perform only without power supply)
