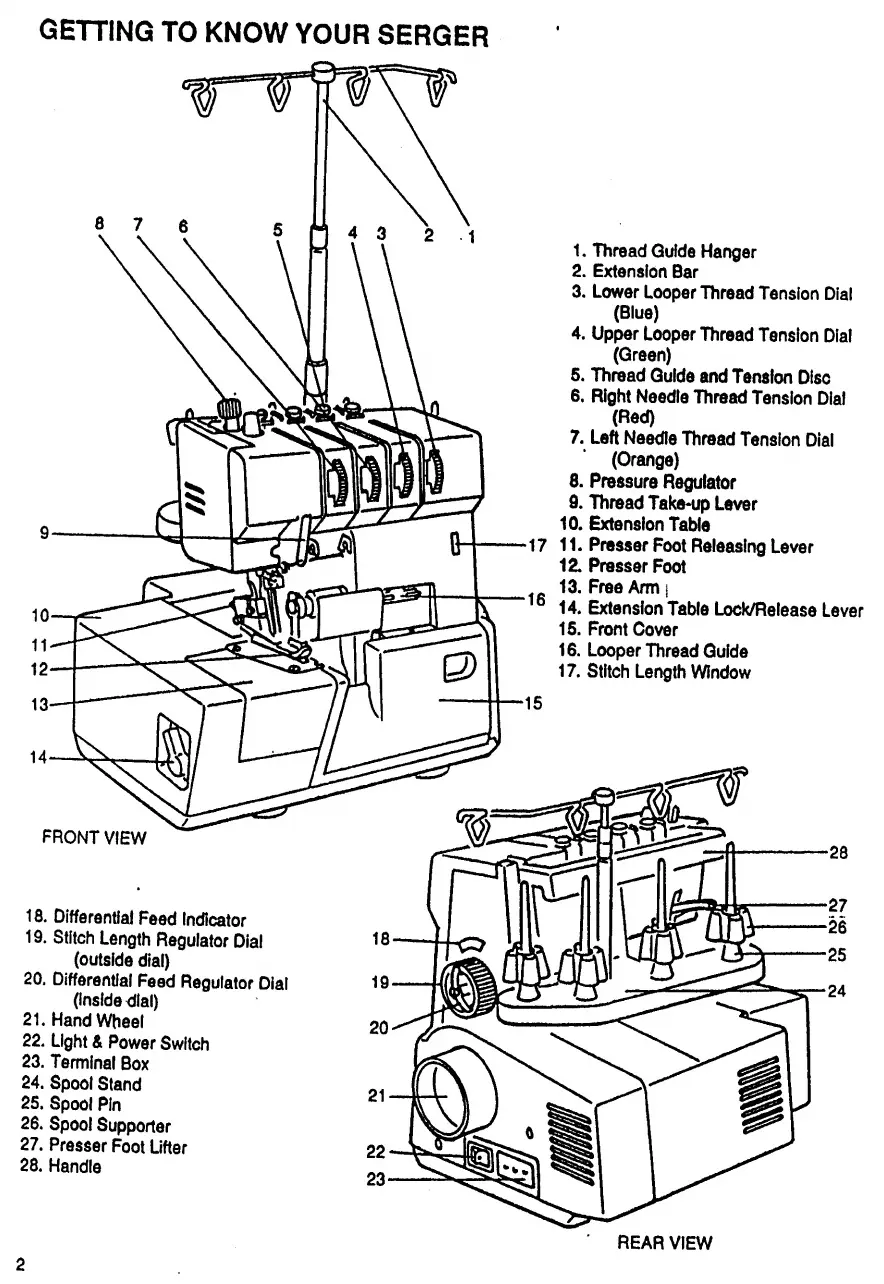

GETTING TO KNOW YOUR SERGER
1. Thread Qutde Hanger
2. Extension Bar
3. Lower Looper Thread Tension Dial
(Blue)
4. Upper Looper Thread Tension Dial
(Qreen)
5. Thread Guide and Tension Diso
6. Right Needle Thread Tension Dial
(Red)
7. Left Needle Thread Tension Dial
(Orange)
8. Pressure Regulator
fi. Thread Take-up Lever
10. Extension Table
11. Presser Foot Releasing Lever
12. Presser Foot
13. Free Arm i
14. Extension Table Lock/Release Lever
15. Front Cover
16. Looper Thread Guide
17. Stitch Length Window
FRONT VIEW
18. Differential Feed Indicator
19. Stitch Length Regulator Dial
(outside dial)
20. Differential Feed Regulator Dial
(Inside dial)
21. Hand Wheel
22. Light & Power Switch
23. Terminal Box
24. Spool Stand
25. Spool Pin
26. Spool Supporter
27. Presser Foot Lifter
28. Handle
REAR VIEW
