Riccar SUPRALITE RSL1A User Manual

8
9
Assembling the Vacuum
Model: RSL1A and RSL1AC cont.
3. Place the handle bracket back into position
(figure 3).
4. Secure with two screws removed in step 1.
Postioning the Power Cord:
1. Loosen, but do not remove, the screw holding
the upper cord hook (figure 4).
2. Position the cord between the cord hook and
the vacuum tube (figure 5). Re-tighten the
screw.
3. Once the cord is secured by the cord hook,
proceed with wrapping the cord.
4. Wrap the cord clockwise around the top and
bottom cord hooks. Fasten the plug to the
wrapped cord using the channel on the plug.
When not in use, store the vacuum indoors in
a clean, dry area where it can not be damaged
or cause injury.

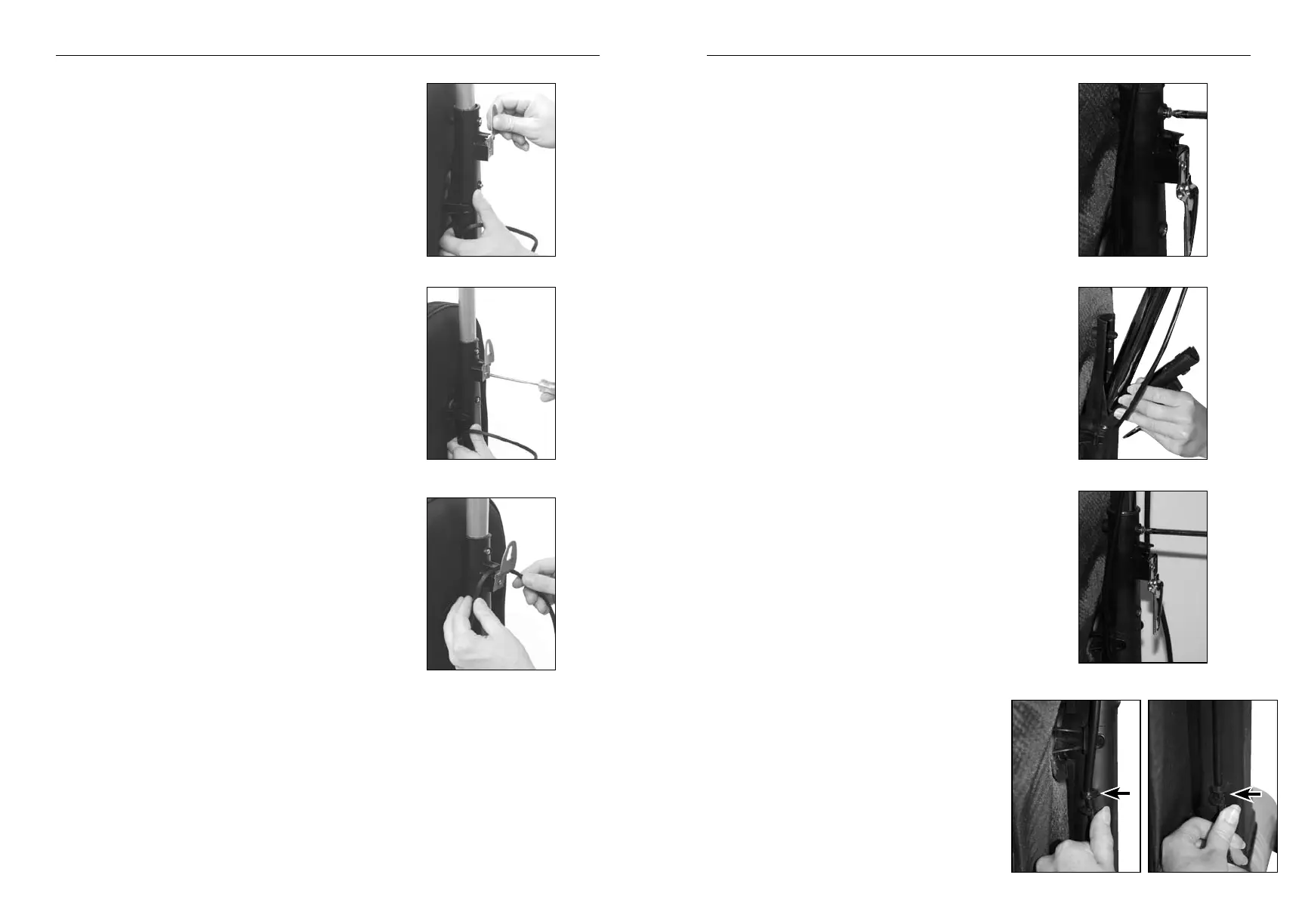

Fig. 3
Fig. 4
Fig. 5
Assembling the Vacuum
Models: RSL3, RSL4, RSL5, RSL3C and RSL5C
The vacuum cleaner handle is packed as a
separate component that requires assembly.
Installing the Handle
1. Release the handle bracket from the handle tube
by removing the two screws (figure 6).
2. Place handle onto the handle tube, aligning holes
with pegs (figure 7).
3. Place the handle bracket back into position
(figure 8).
4. Secure with two screws removed in step 1.
5. Thread cord through cord guides and proceed
with wrapping the cord (figures 9a & 9b).
6. Wrap the cord clockwise around the top and
bottom cord hooks. Fasten the plug to the
wrapped cord using the channel on the plug.
When not in use, store the vacuum indoors in
a clean, dry area where it can not be damaged
or cause injury.
Fig. 6
Fig. 7
Fig. 8
Fig. 9a Fig. 9b
