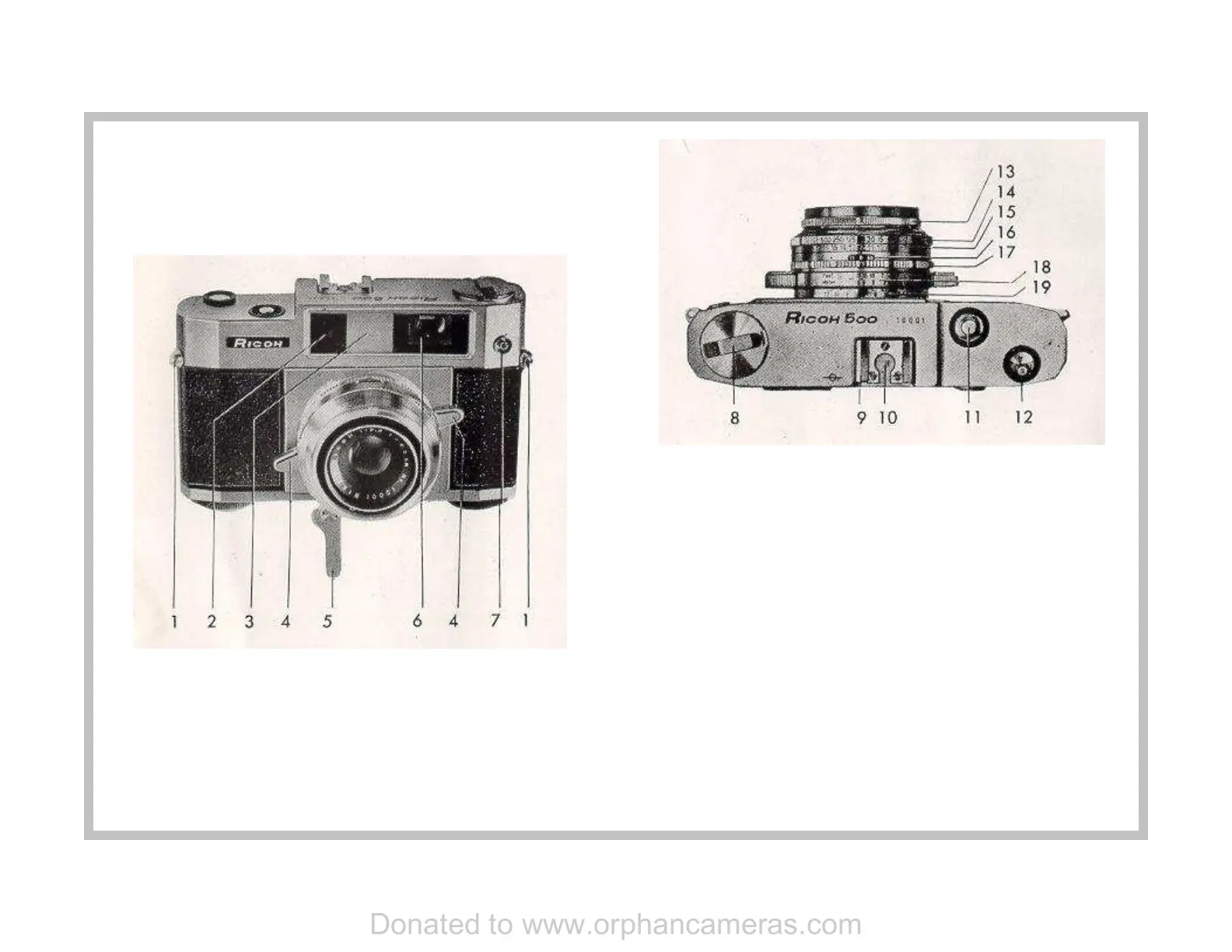

Ricoh 500 Owner’s Manual Page 2 of 14
1 Eyelet
2 Range-finder window
3 Bright-frame window
4 DUO-LEVER focusing controls
5 Triggermatic-Action lever
6 View-finder window
7 Flash terminal (European standard)
8 Rapid rewinding crank
9 Accessory shoe
10 Cordless flash contact
11 Shutter release button
12 Film counter
13 Combined synchro setting and self-timer ring
14 Shutter speed setting ring
15 Light value figures
16 Diaphragm setting ring window
17 Light value adjusting ring
18 Distance scale
19 Depth-of-field scale
20 Rewinding spindle
21 View-rangefinder eyepiece
22 Film rail
23 Rewinding release button
24 Sprocket
25 Take-up spool knob
26 Take-up spool slot
27 Back cover locking disc
