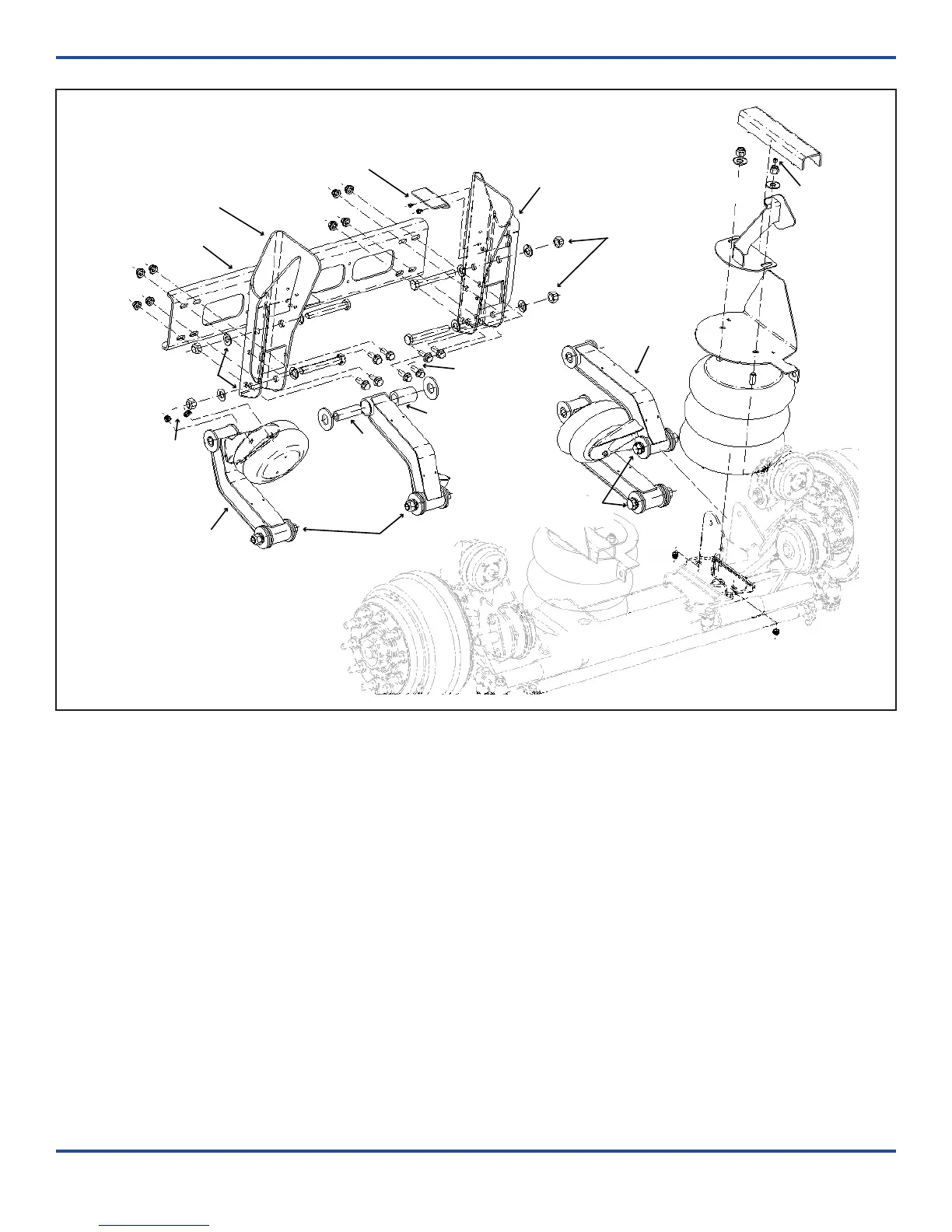

Figure 3.
RSS-233 20K Truck Suspension – Standard/Wide Frame Width - Drum Brakes
Refer to the engineering drawing for the individual component part number.
Cross Channel
Hanger
(Left-Hand)
Air Spring
(Lift)
Bolt
(Air Spring)
Torque Rod
(LH Upper)
(LH Lower)
Torque Rod
(RH Upper)
(RH Lower)
Lock Nut
(Hanger-LH)
Wear Washer
Hanger
(Right-Hand)
Mounting Bracket
(Air Spring-RH)
Pivot Bolt/Washer/Pivot Nut
(HHCS/FlatWasher/Lock Nut)
Bolt
(Air Spring)
Air
Spring
(Load)
Lock Nut
(Hanger-RH)
Pivot Bushing
Wear Washer
Mounting Plate
(Air Spring-RH)
2” Spacer
(Air Spring-RH shown)
Hanger Locator Flange-(RH shown)
Flanged Screw (Self-Tapping)
Pivot Bolt/Washer/Pivot Nut
(HHCS/FlatWasher/Lock Nut)
Drum Brake Axle Assembly
(Steer Lock)
Pivot Bolt/Washer/Pivot Nut
(HHCS/FlatWasher/Lock Nut)
Flanged Lock Nut
(Air Spring)
Bushing
Inner Sleeve
Flanged Bolt
(Hangers)
Pivot Bolt/Washer/Pivot Nut
(HHCS/FlatWasher/Lock Nut)
Pipe Plug
(Hex Socket)
Lock Nut
Flat Washer
NOTE:
Spacer Kit for
standard drum brake
includes air spring
spacer plates only
