Ridewell Suspensions RSS-233 - Drum Brake Axle Assembly

233-Truck-20K-ISM-RevB-07-06-18 Page 9 ENG

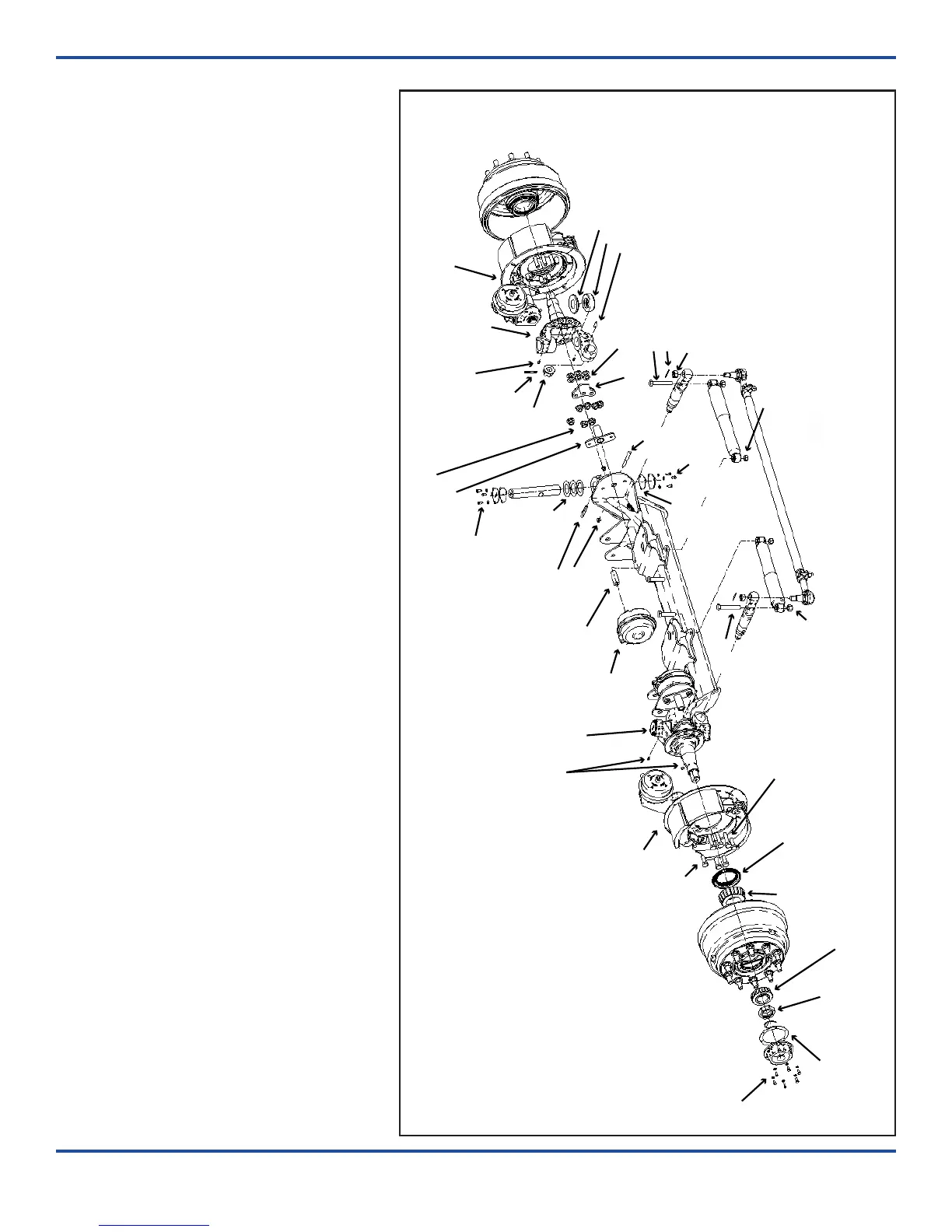

Figure 4.
RSS-233 - 20K Truck Suspension
With Drum Brakes-
Drum Brake Axle Assembly
(Steer Lock version)
Refer to the Steer Lock (S) version
of the engineering drawing for the
individual component part number.
Cotter Pin Castle Nut
Lock Nut
Bolt Hub Cap
Tie Rod
Washers
Steer Lock Stop Plate
Gasket Spindle Nut Bearing Assembly (Outer)
Bearing Bearing Assembly Seal (Inner)
Bolt
Steer Lock Brake Plunger Chamber
Cap
Gasket
King Pin
Shims
Lock Nut
Steer Lock Tube Assembly
Hub & Drum
(Options Avail.)
Brake Assembly (LH)
Draw Key
Lock Nut
Bolt Cotter Pin Lock Nut Tie Rod Arm
Hub & Drum
(Options Avail.)
Steering
Damper
Bolt
Bolt
Flat Washer
Gasket Cap
Grease Fitting Knuckle
(LH)
Lock Nut
Bolt
Cotter Pin
Lock Nut
Tie Rod Arm
Grease Fitting Knuckle
(RH)
Bearing Seal
Thrust Bearing
Woodru Key
Flat Washer Bolt
Lock
Pin
Brake
Assembly
(RH)
