Repair Parts
21

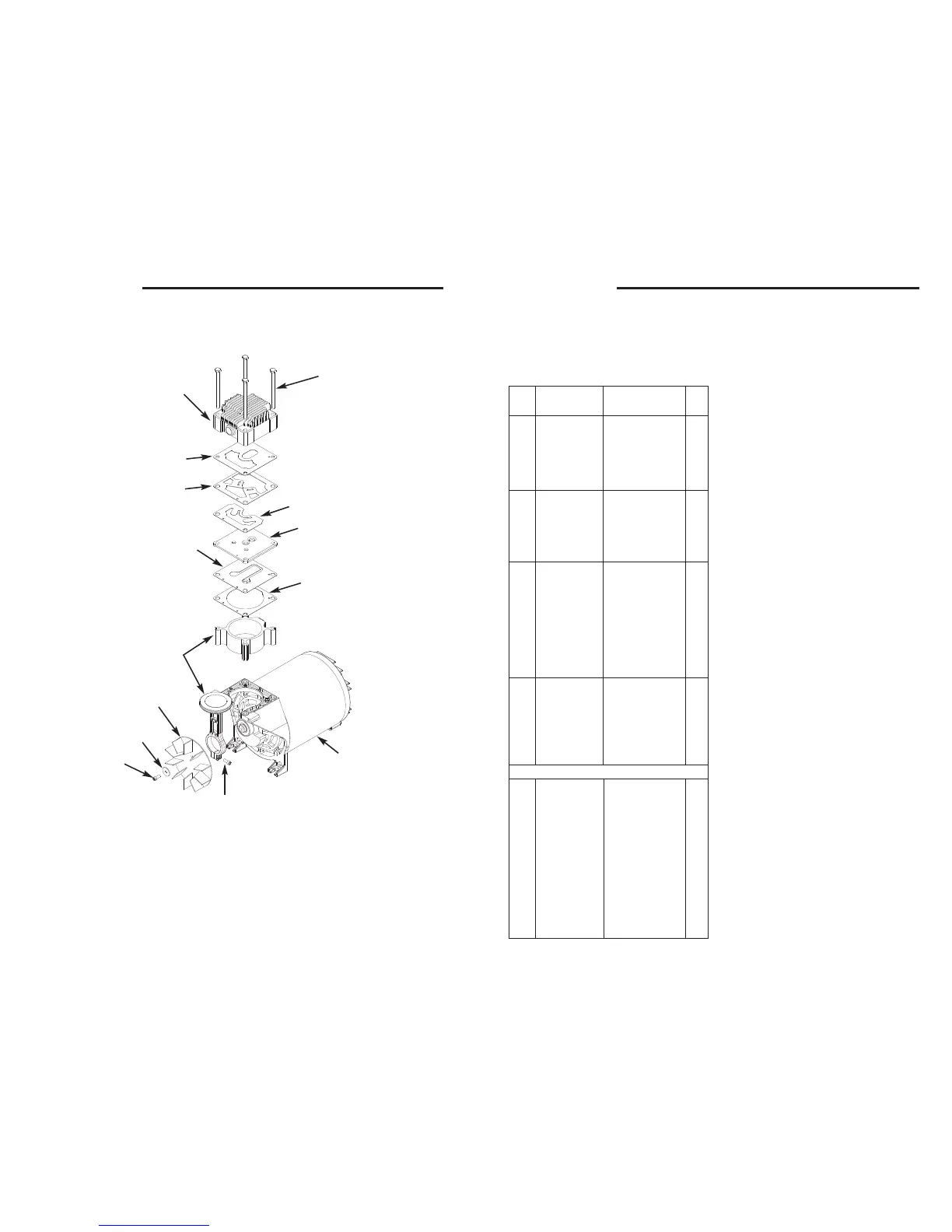

Repair Parts
20
For Repair Parts, Call 1-800-4-RIDGID
Please provide following information:
-Model number
-Serial number (if any)
-Part description and number as shown in parts list
Key Part
No Number Descriptons Qty
1 WL010500AV Head 1
2 l Head bolts 4
3 s Exhaust valve 1
4 s Valve plate 1
5 XA012100AV s Cylinder gasket 1
6 MC302300AJ Motor assembly
(includes
eccentric/
bearing
assembly) 1
7 (Included with M5 x .8 x 20
piston HH cap screw 1
assembly, Ref.
No. 11)
8 n M5 x .8 x 12
HHCS (L.H.) 1
9 n Washer 1
10 n Fan 1
11 WL210300AJ Piston assembly
(includes. #7) 1
12 s Intake valve 1
13 XA010800AV s Head gasket 1
14 XA012001AV s Discharge valve
gasket 1
REPAIR PARTS KITS
l WL602801AJ Head bolt kit
(set of 4) 1
s WL201405AJ Valve plate kit
(Includes #2-5,
12-14) 1
n WL209802AJ Fan kit
(includes #8-10) 1
13
1
3
4
12
5
11
7
6
10
9
8
2
14
