5) Accessory Connecting Cable For Split Systems
Legend:
S1 cooling room lighting switch X1 clamping strip, terminal box
S2 refrigeration switch X2 clamping box, evaporator
H1 cooling room lighting X3 condenser unit terminal box
B1 sensor, PTC cooling room X4 temperature sensor condenser terminal box
B2 sensor, PTC evaporator X5 temperature sensor evaporator terminal box
M1 evaporator fan
E1 heating condenser
E2 heating drainage
E3 heating door frame (provided by client, GEKT)
1) Cable no. 10.1 and door frame heating only for GEKT
2) Individual connecting cables are not included in delivery, but can be ordered in varying lengths if desired
3) Connection terminal for cooling room lighting
4) Wiring for remote control
Switch
S2
Switch
S1
Terminal box
Controller
Condenser
Connecting cable
Evaporator cooling cell

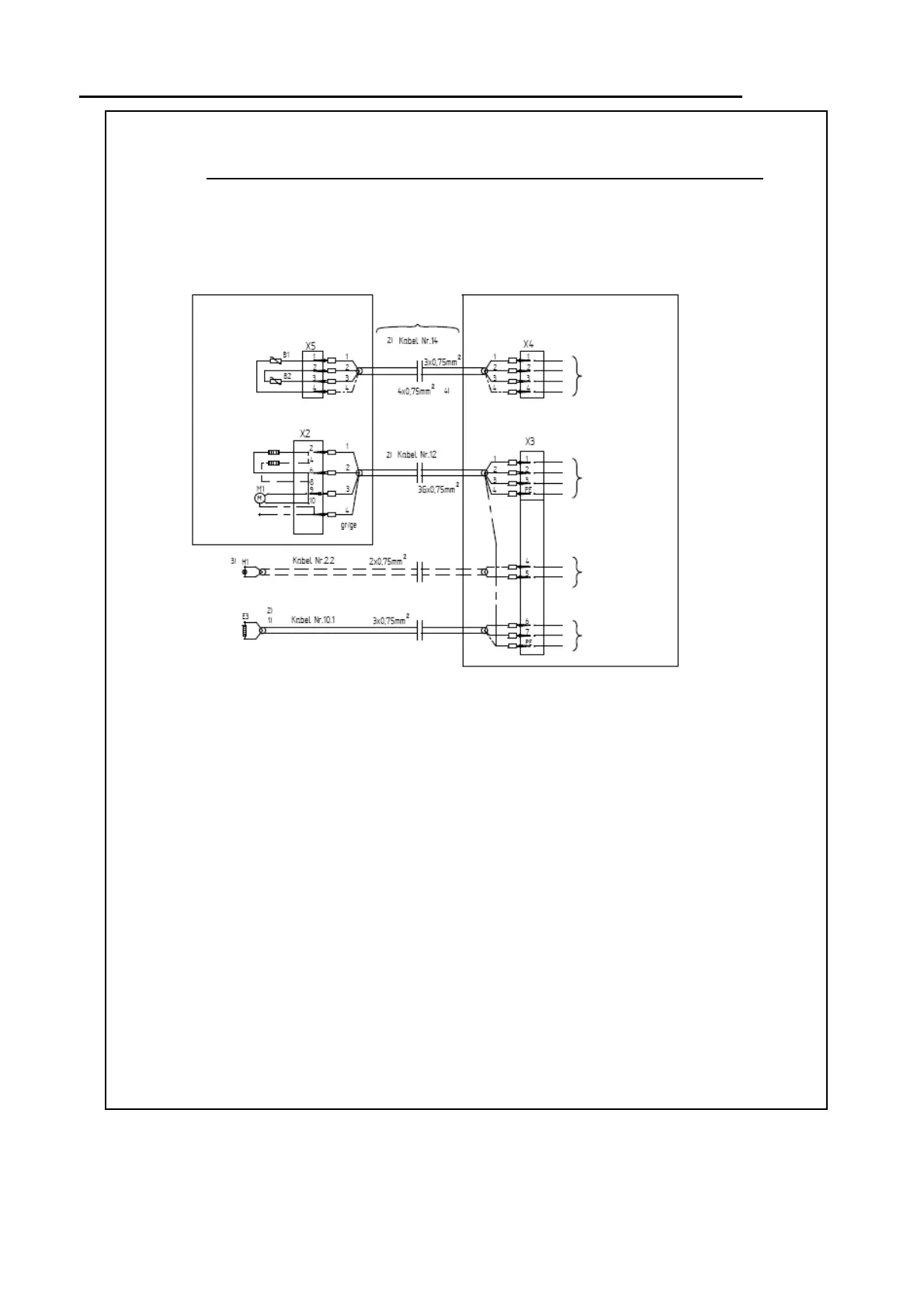

The split unit evaporator and condenser units are wired as pictured in the diagram below.
ACCESSORY CONNECTING CABLE FOR SPLIT SYSTEMS
-7-
