1200 Series SmartPanels 1.1 User Manual
01-000HB03EG-B00
2.5
Volume
Master Volume
The right red rotary encoder is used to adjust the master volume of the SmartPanel. The volume level
is temporarily visualized by a vertical bar on the right side of the Info-display.
If the Headset mode is enabled, the volume of the connected headset is adjusted. The volume levels of
speaker and headset can be set independently.
Pushing the right rotary encoder will mute the speaker. This is indicated by a blinking LED inside this
rotary encoder.

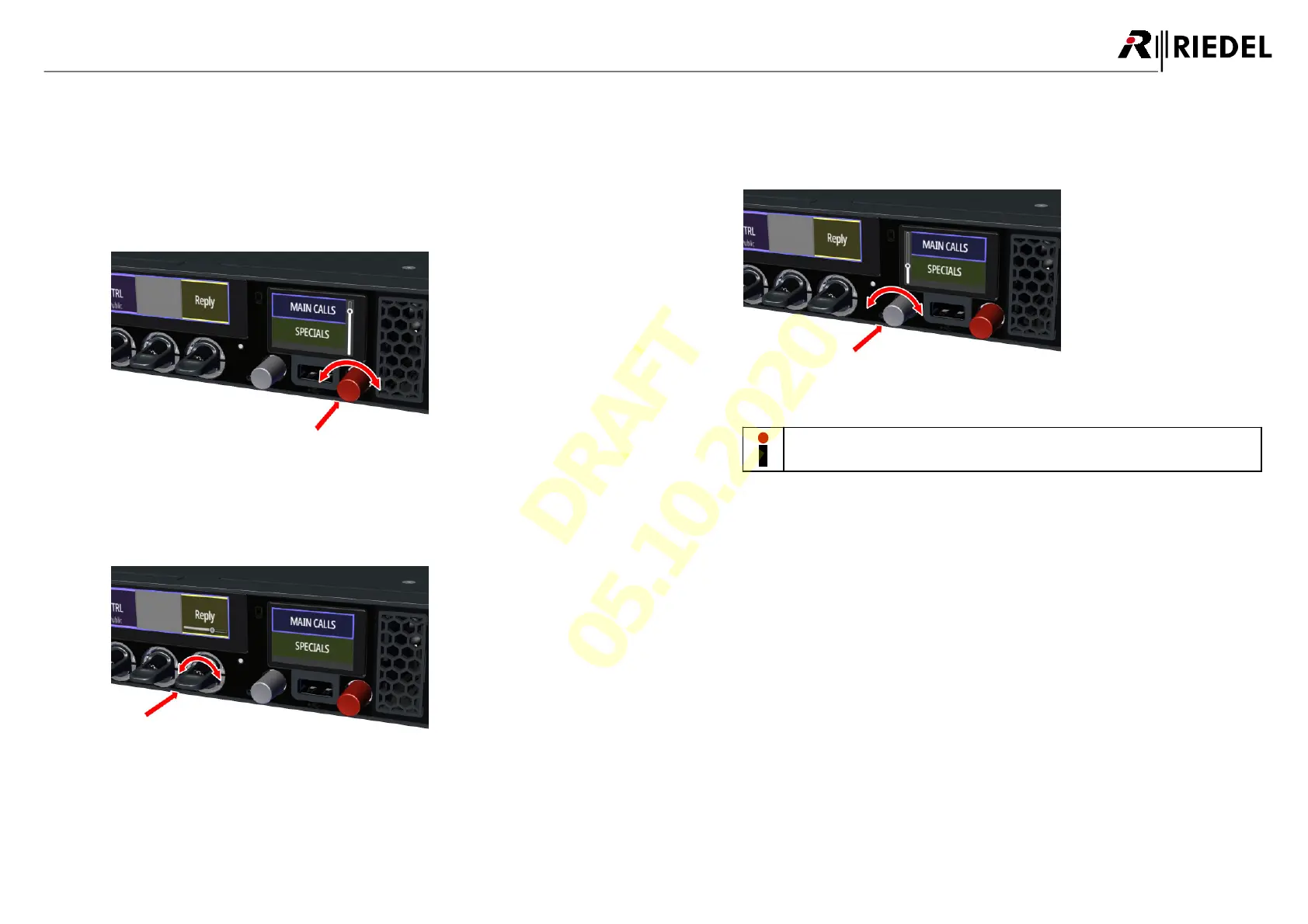

figure 13: Master Volume (RSP-1216HL)
Port Volume
The individual port volume is adjusted by turning the integrated rotary encoder in the respective lever
key. The volume level is temporarily visualized by a horizontal bar on the corresponding Key-display.
Pushing the rotary encoder will mute the corresponding port. Muting is also possible by turning down
the volume completely. This is indicated by a mute icon in the corresponding Key-display.
figure 14: Port Volume (RSP-1216HL)
Sidetone Volume
The left grey rotary encoder is used to adjust the sidetone level of the SmartPanel. The volume level is
temporarily visualized by a vertical bar on the left side of the Info-display.
Pushing the left rotary encoder will mute the microphone. This is indicated by a blinking LED inside
this rotary encoder.
figure 15: Sidetone Volume (RSP-1216HL)
The Sidetone function is always active on 1200 SmartPanels and must not be additionally
configured in the Director.
