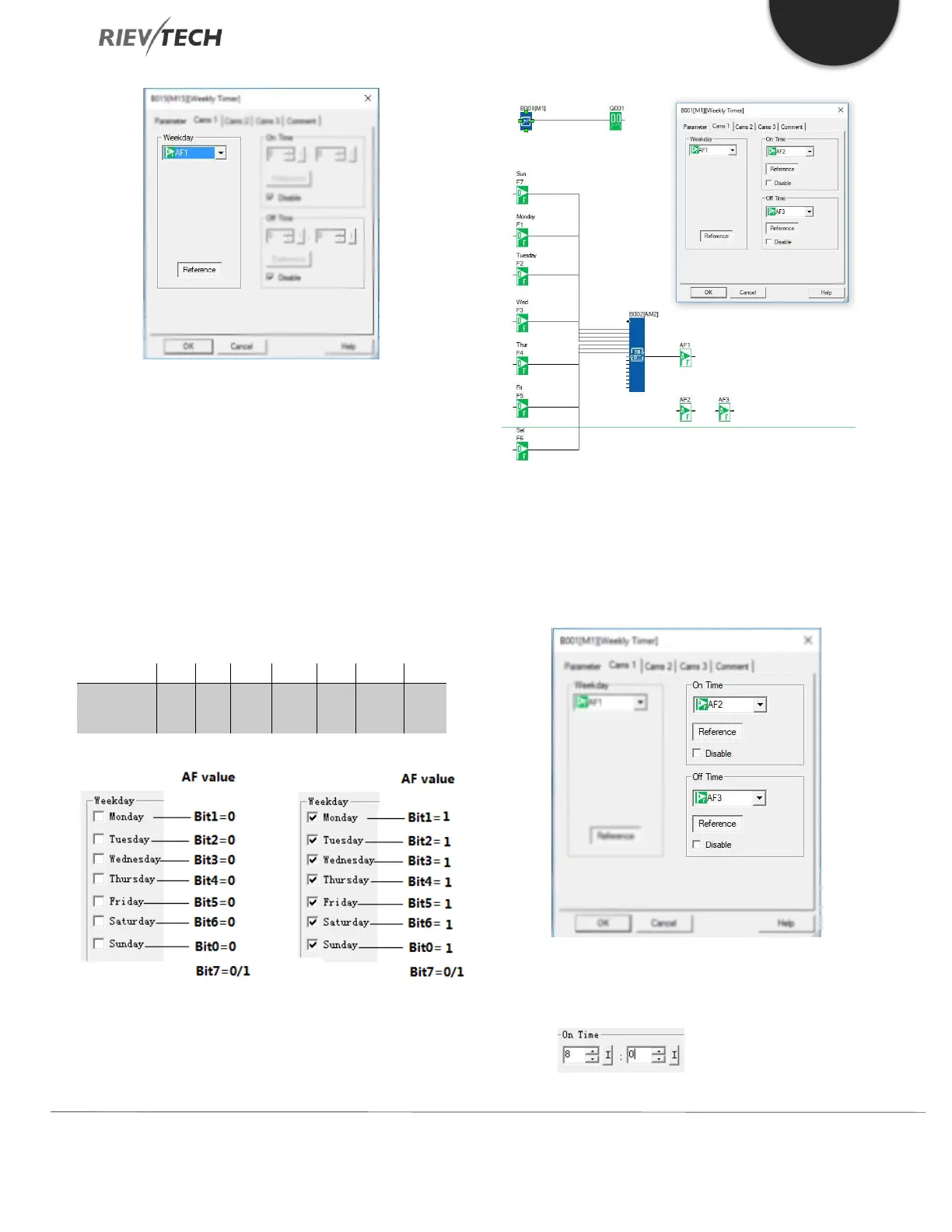

In order to set the weekly timer parameters via
MODBUS, they can be assigned to an Analogue flag, AF,
which would hold a value to represent the bits for each
day of the week.
Weekday parameter.
For example, use AF1
AF has a 16-bit type value, the weekday uses the low 8-
bits status as the parameters:
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
0
(Reserved)
SAT
FRI
THU
WED
TUE
MON
SUN
You can program as above, use one Bit to word block
and then, you can set the F1--F7 at the touch screen to
change the weekday settings.
On time/Off Time settings--Reference AF value.
For example,
 If AF2 =800, then the On time would be 08:00;
