 If AF2=2105, then the On time would be 21:05;
 If AF3=1023, then the OFF time would be 10:23;
NOTICE:
If the AF value is over 2323, it will be not
available for the On/Off time, the output of the weekly
timer will be 0.

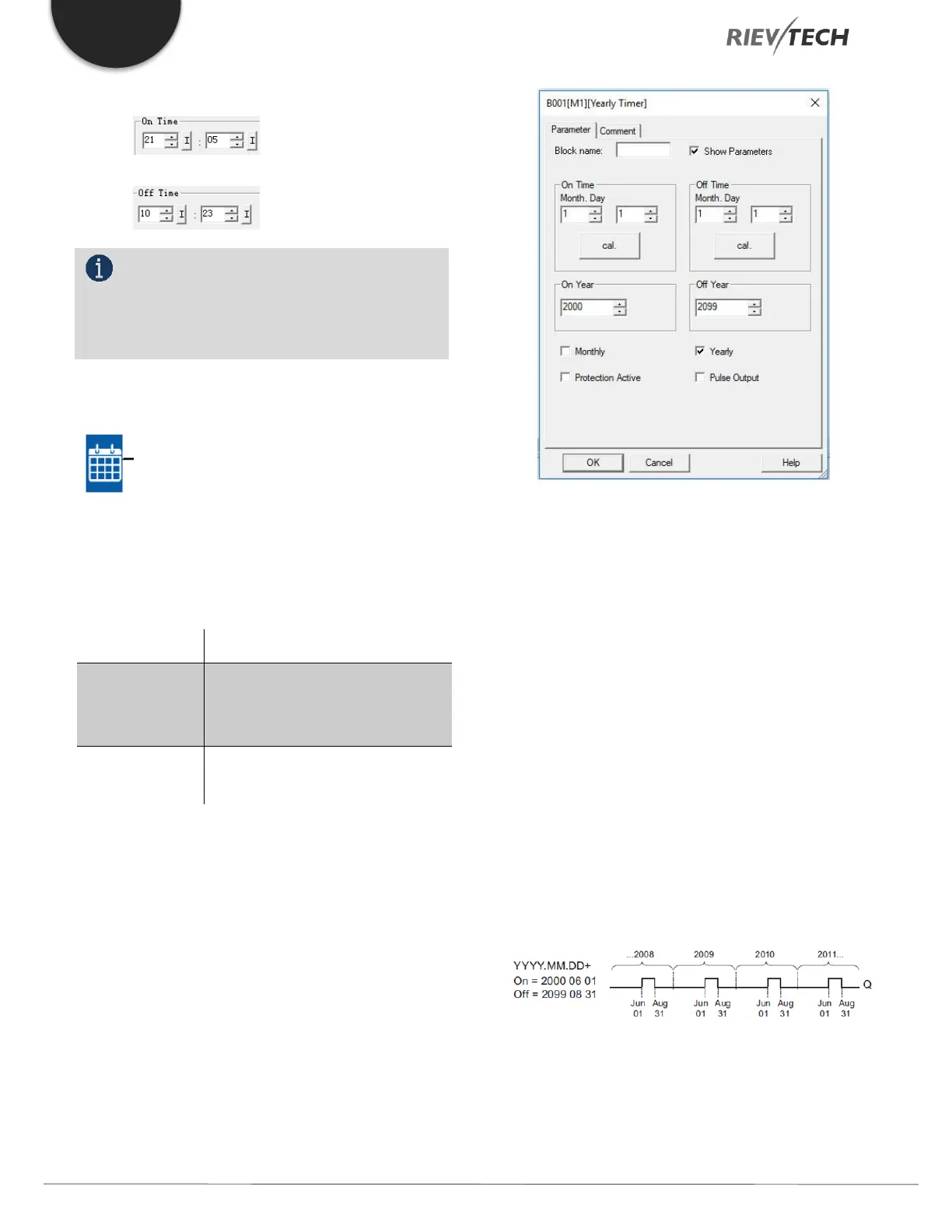

Yearly Timer
Description of function
The output is controlled by means of a configurable on/off
date
Connection
Description
Parameter
At the No (cam) parameter you set
the on and off trigger for the cam
of the yearly timer.
Output Q
Q is set on when the configured
cam is switched on.
Parameter
The on and off trigger for the cam of the yearly timer can
be set/modified in parameter mode and you can configure
what you need. For information about how to modify,
please refer to chapter 5.2.2.
Timing diagrams
Example 1: Yearly mode on, Monthly mode off, Pulse Off,
On Time = 2000-06-01, Off Time = 2099-08-31: Every year
on June 1 the timer output switches on and remains on
until August 31.
