edge (0 to 1 transition) at the input
Lap.
A positive edge (0 to 1 transition)
resets the value at output AQ to 0.
Parameters Time Base
You can configure the time base for the analogue output:
The time base for the elapsed time can be in hours,
minutes, seconds, or 1/100ths of seconds (units of 10
milliseconds). The smallest time base, and therefore the
resolution, is 10 milliseconds, or 1/100ths of a second.

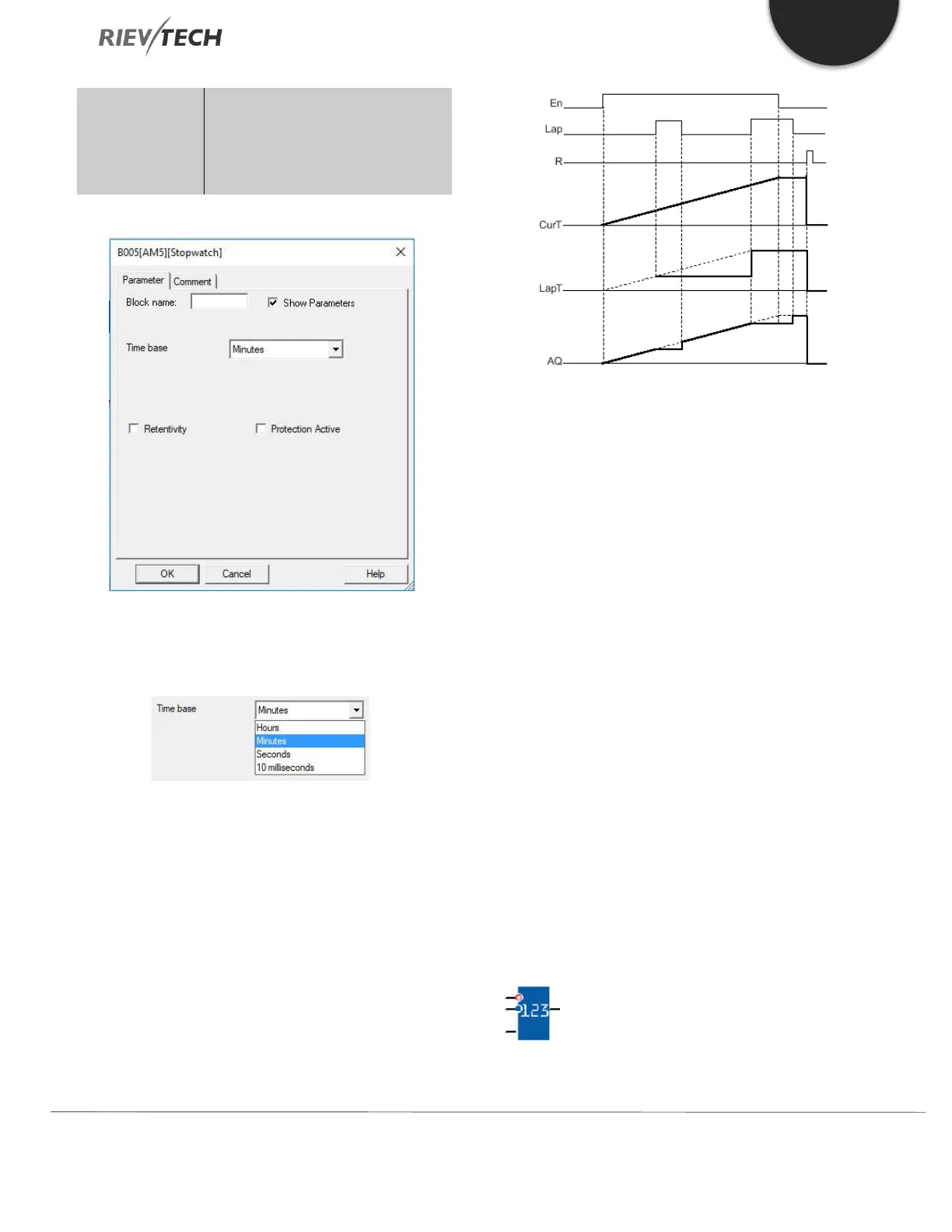

Timing diagram
Description of the function
When En = 1, the current time increases.
When En = 0, the current time counting pauses.
When En = 1 and Lap = 0, the output AQ outputs the
value of the current elapsed time.
When En = 1 and Lap = 1, the current time continue
increasing, but the output AQ outputs the value of the Lap
time.
When En = 0 and Lap =1, the output AQ outputs the value
of the Lap time.
When En = 0 and Lap = 0, the output AQ outputs the
value of the latest current time.
When R = 1, both the current time and the Lap time are
reset.
Up/Down Counter
Description of function
