S1 = 1 and S2 = 1: The value 4 is
issued
Parameter
V1...V4: Analog values (Value) that
will be issued.
Value range: -32768...+32767
p: Number of decimal places
value range: 0, 1, 2, 3
Output AQ
Analog output
Value range for AQ: -
32768...+32767
Parameters V1…V4
The values for V1…V4 can be provided by the value of
another already-programmed function such as:
Analog comparator (Ax – Ay) Analog threshold trigger
(Ax)
Analog amplifier (Ax) Analog multiplexer (AQ)
Analog ramp (AQ) Mathematic instruction
(AQ)
PI controller (AQ) Up/down counter (Cnt)
Analog filter (AQ) Average value (AQ)
Max/Min (AQ) On-delay (Ta)
Off-delay (Ta) On-/off-delay (Ta)
Retentive on-delay (Ta) Wiping relay(pulse output)
(Ta)
Edge triggered wiping relay (Ta)
Asynchronous pulse generator (Ta)
Stairway light switch (Ta) Multiple function switch
(Ta)
Stopwatch (Ta)

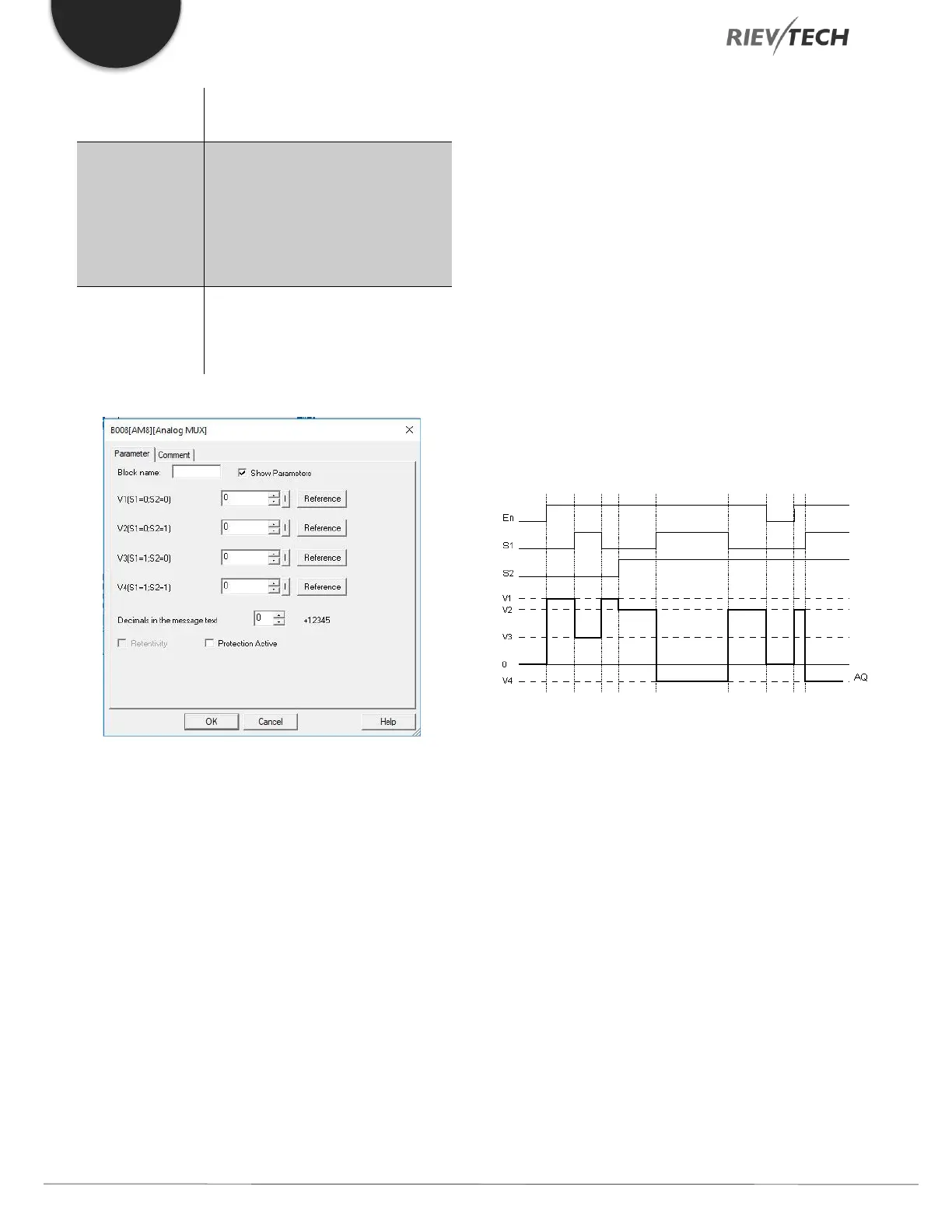

Timing Diagram
Description of Function
If input En is set, then the function issues one of 4 possible
analogue values V1 to V4 at the output AQ, depending on
the parameters S1 and S2.
If the input En is not set, then the function issues the
analogue value 0 at output AQ.
Analogue output
If you interconnect this special function with a real
analogue output, note that the analogue output can only
process values between 0 and 1000. To do this, you may
