AQ outputs a minimum, maximum,
or actual value depending on the
inputs, or is reset to 0 is configured
to do so when the function is
disabled
Analog inputs: 0 to 10 V
corresponds with 0 to 1000
(internal value).

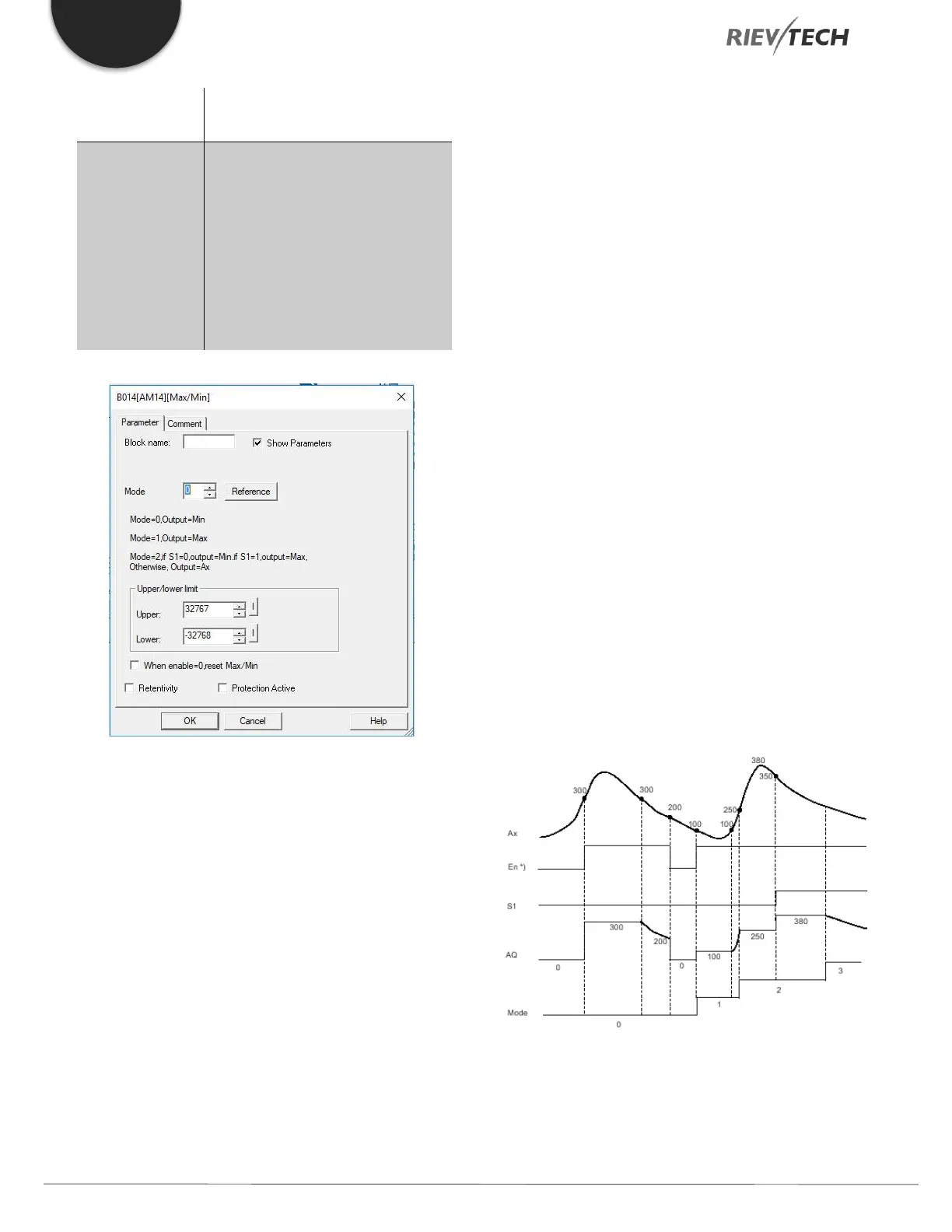

Parameter Mode
You can set the values for parameter Mode based on the
actual values of another already-programmed function:
Analog comparator (Ax – Ay) Analog threshold trigger
(Ax)
Analog amplifier (Ax) Analog multiplexer (AQ)
Analog ramp (AQ) Mathematic instruction
(AQ)
PI controller (AQ) Up/down counter (Cnt)
Analog filter (AQ) Average value (AQ)
Max/Min (AQ) On-delay (Ta)
Off-delay (Ta) On-/off-delay (Ta)
Retentive on-delay (Ta) Wiping relay(pulse output)
(Ta)
Edge triggered wiping relay (Ta)
Asynchronous pulse generator (Ta)
Stairway light switch (Ta) Multiple function switch
(Ta)
Stopwatch (Ta)
You can select the required function by the block number.
Timing diagram
Description of the function
If you select the check box "when En = 0, reset Max/Min":
