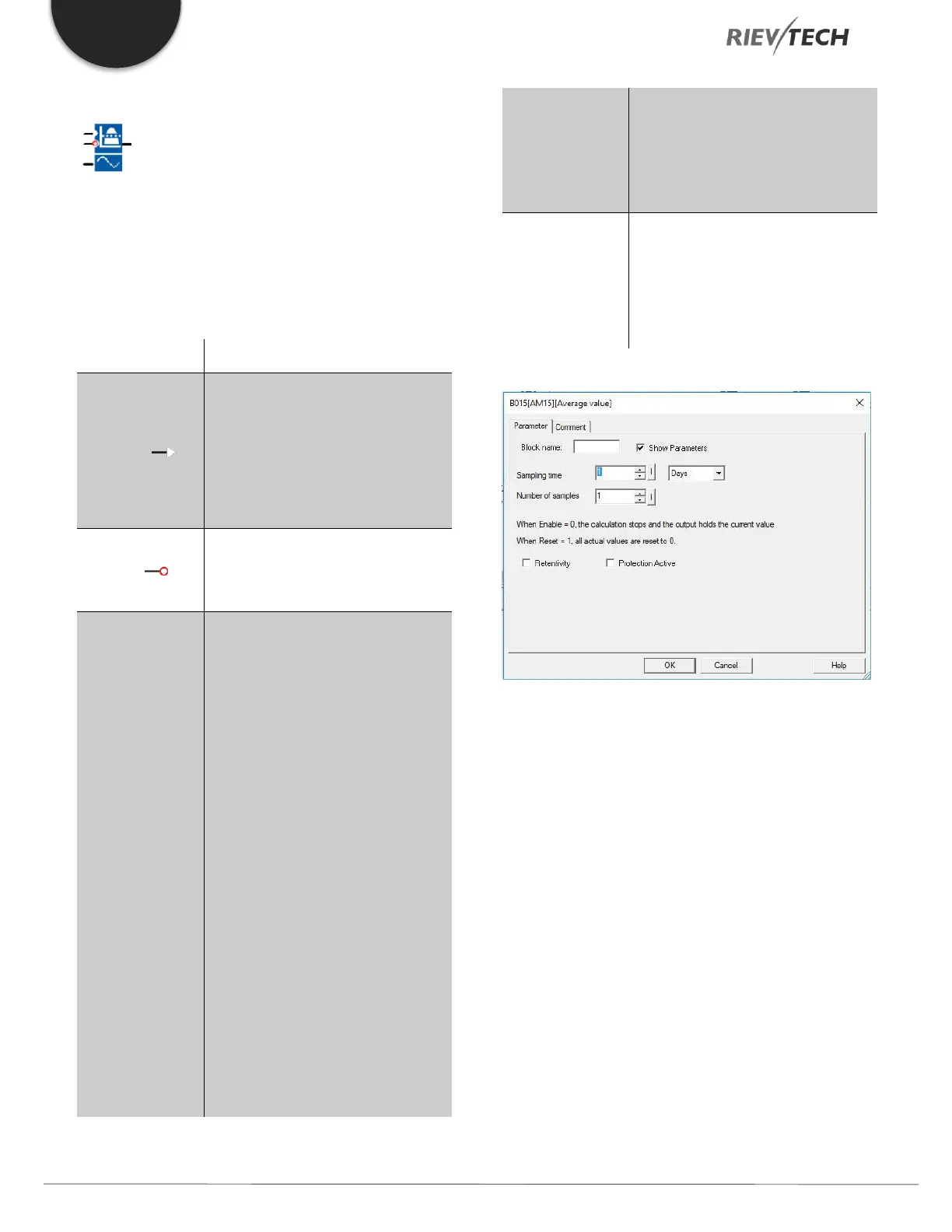

Average Value
Description of function
The average value function samples the analogue input
signal during the configured time period and outputs the
average value at AQ.
Connection
Description
Input En ( )
A positive edge (0 to 1 transition) at
input En (Enable) sets the output AQ
to the average value of input Ax
after the configured time. A negative
edge (1 to 0 transition) holds the
output at its last calculated value.
Input R ( )
A positive edge (0 to 1 transition) at
input R (Reset) resets the output AQ
to 0.
Parameter
St (Sampling time): You can set it to
Seconds, Days, Hours or Minutes.
The range of values:
If St = Seconds: 1 to 59
If St = Days: 1 to 365
If St = Hours: 1 to 23
If St = Minutes: 1 to 59
Sn (Number of samples):
The range of values:
If St = Seconds: 1 to St*100
If St = Days: 1 to 32767
If St = Hours: 1 to 32767
If St = Minutes and St ≤ 5 minutes:
1 to St*6000
If St = Minutes and St ≥ 6
minutes: 1 to 32767
Output AQ
AQ outputs the average value over
the specified time of sampling.
* Analog Inputs: 0 to 10 V
corresponds with 0 to 1000
(internal value).
Parameter St and Sn
Parameter St represents the sampling time and parameter
Sn represents the number of samples.
