line using the cursor keys or the mouse. Hit the [ENTER]
key to confirm all your entries in the block properties
dialogue and to close the dialogue.

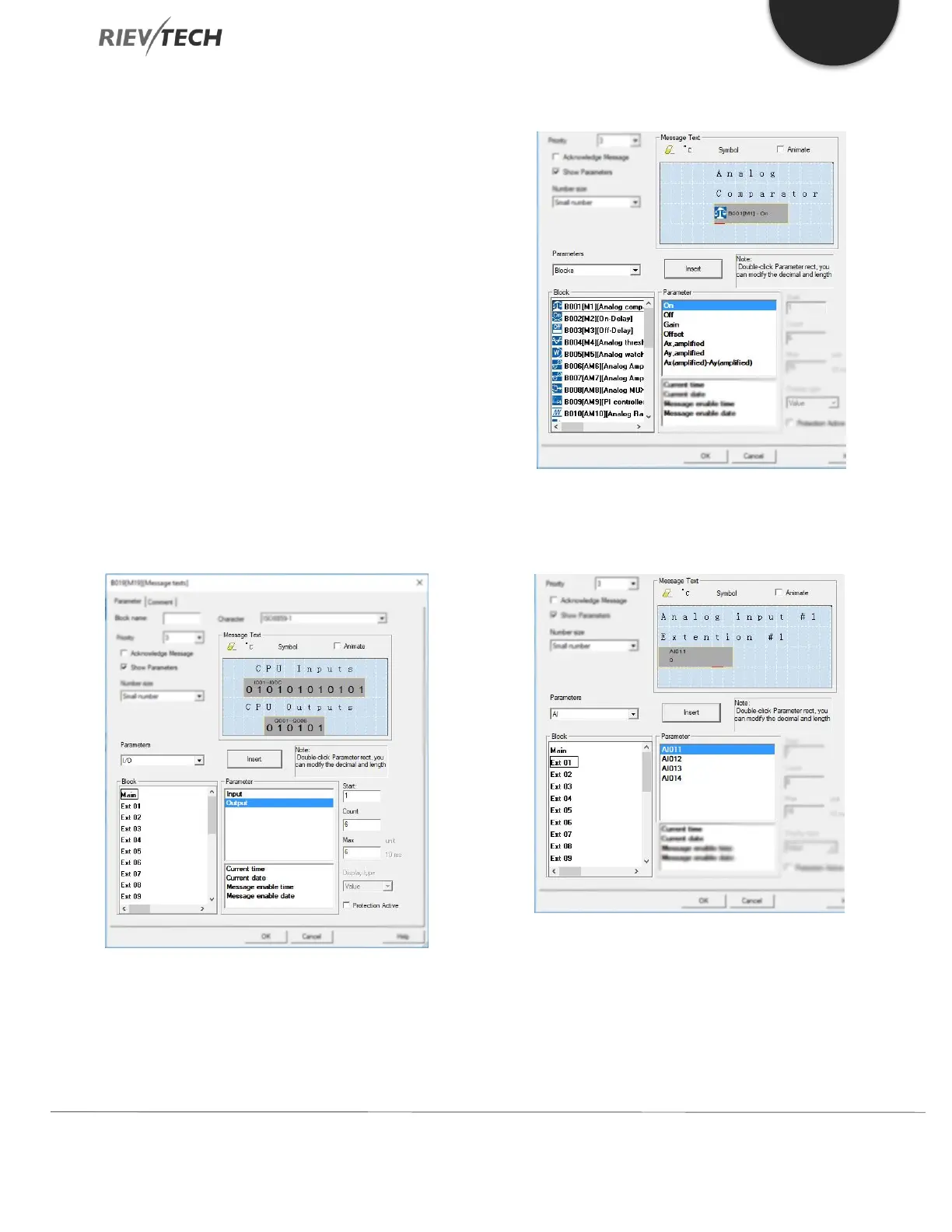

You may also enter the actual values of other blocks in the
text lines. To do so, select the relevant block from the Block
dialogue. A Parameter dialogue opens to display a list of
all parameters available for the selected block. The block
parameter you select in this dialogue is written to the
selected text line. The actual parameter value is now
included when you call the message text.
Set the "Acknowledge message" attribute to specify
whether a message is being acknowledged before it is
closed.
A. I/O status of CPU and extensions
B. Blocks
C. Analog input value of CPU and extensions
