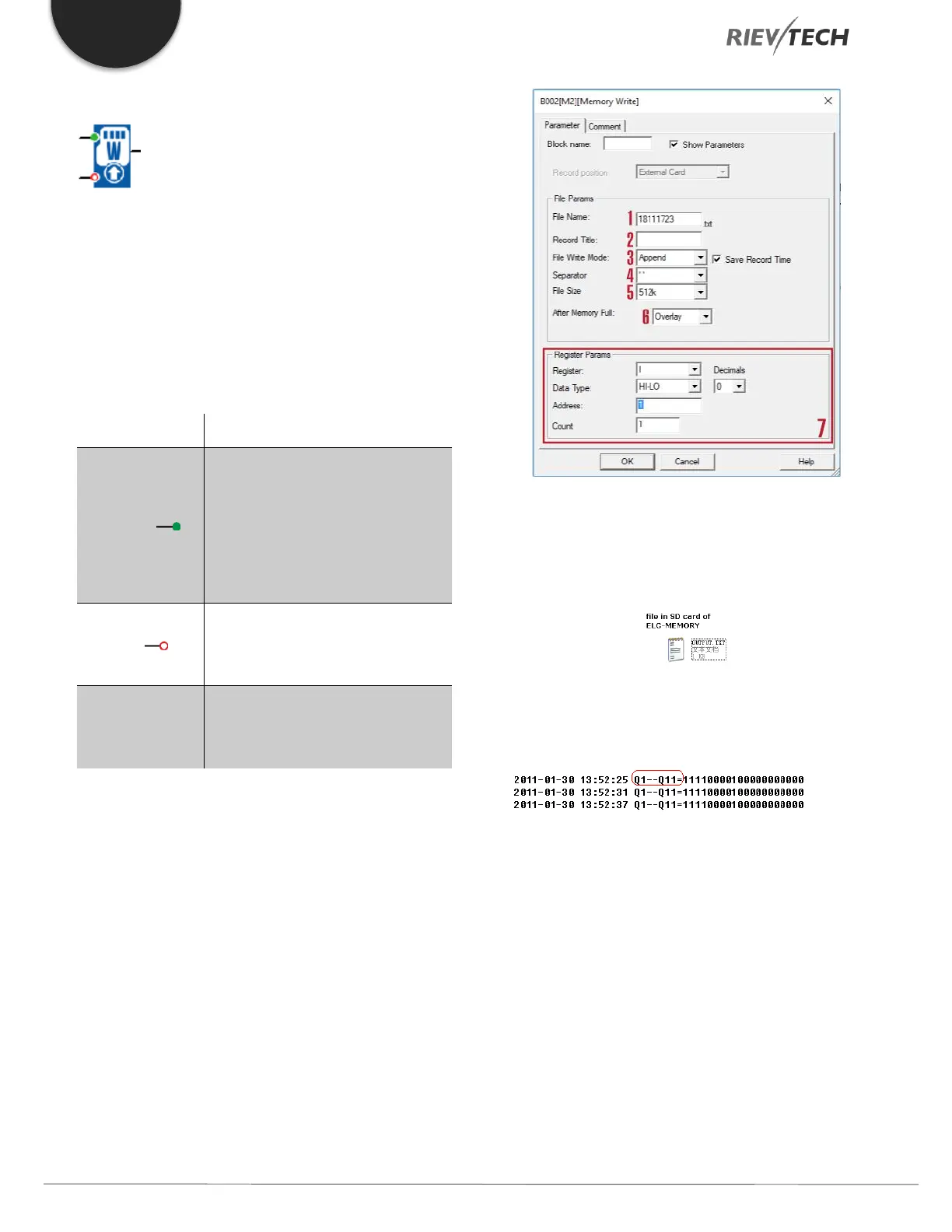

Memory Write
Description of function
Only when there is a low to high trigger at Trg pin, the
Memory Write block will be activated and the pre-
configured record action will be performed, at the same
time the output will switch on if the record action had
been done successfully.
Connection
Description
Trg input ( )
Only when there is a low to high
trigger at Trg pin, the Memory Write
block will be activated and the pre-
configured record action will be
performed. Each trigger only writes
once.
Input R ( )
Reset the Memory Write block and
set the output to 0 via the R (Reset)
input. Reset has priority over Trg
Output Q
Q switches on only after Write
function had been executed
correctly.
Description of Memory write block’s property dialogue
box:
1. Filename
Place where you can set the name of the file used to save
the registers’ data
Above is an example of the “OUTPUT.TXT”
2. Record title
The above range circled in red is just pre-set contents in
the “Record title” of the Memory write block’s property
dialogue box.
3. File Write Mode
Two options available:
Option A. Append (This option would be selected if a
certain file already exists in the Mini SD card inserted in
ELC -MEMORY)
