and VALUE 2 is true and if the En
input is active or not connected.
The output does not change state
if the En input changes from Active
to Inactive state.

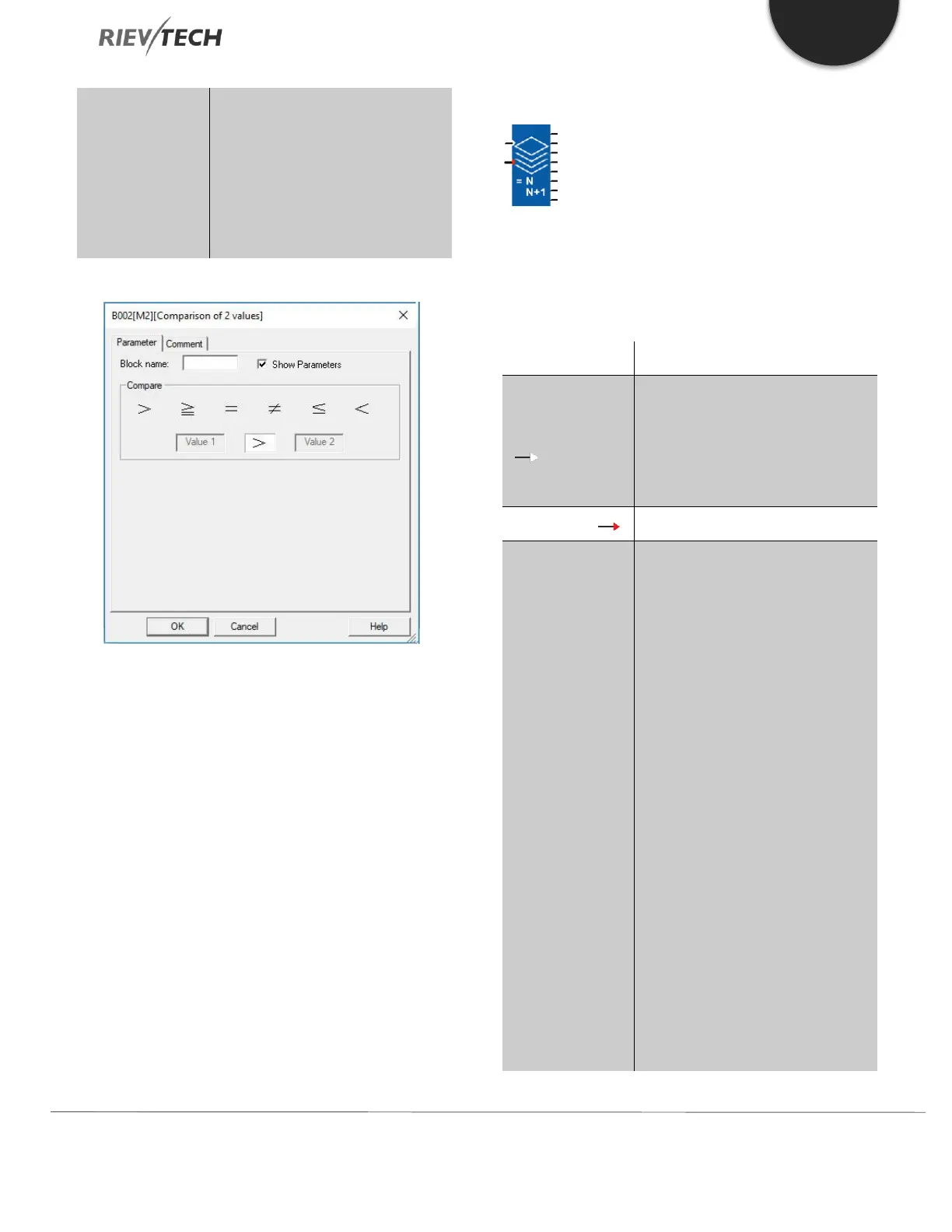

Multi-Compare
Description of function
This function is used to activate the output corresponding
to the value present on the "Value" input.
Connection
Description
Input Validation
( )
Function validation input. Until this
input is activated, the function
remains inert. Validation is active
implicitly if it has not been
connected.
Input Value ( )
Value to be compared.
Outputs Value N
VALUE N:
Output ON if Value = Value N.
VALUE N + 1:
Output ON if Value = Value N + 1.
VALUE N + 2:
Output ON if Value = Value N + 2.
VALUE N + 3:
Output ON if Value = Value N + 3.
VALUE N + 4:
Output ON if Value = Value N + 4.
VALUE N + 5:
Output ON if Value = Value N + 5.
VALUE N + 6:
