Conversion Word to Bits
Description of function
When the "En" is high, The DEC/BIN function breaks down
an integer (16-bit) type input into 16 bit-type outputs.

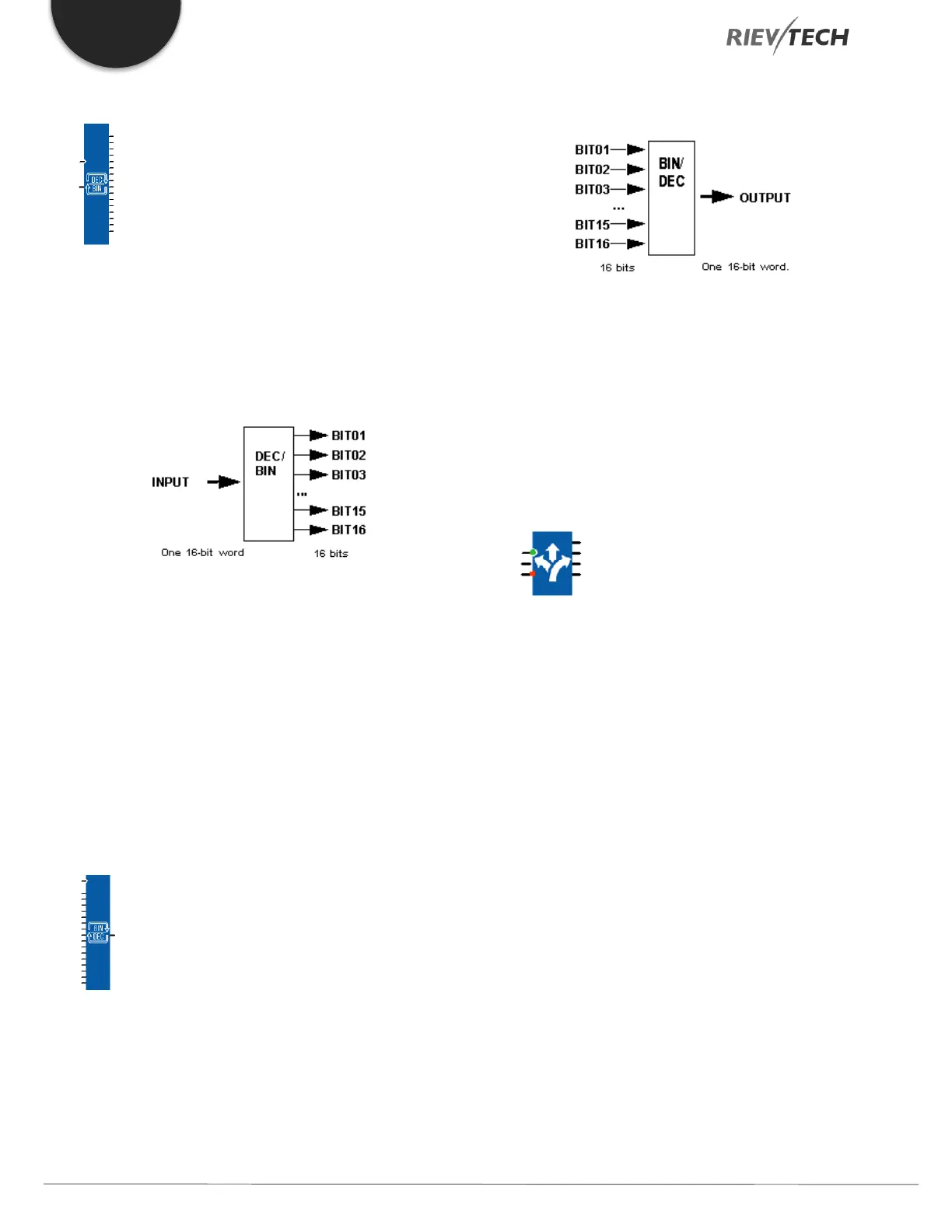

Illustration:
Inputs/Outputs
This function supports 1 integer type 16-bit input:
This function supports 16 discrete outputs: BIT01 (least
significant byte) ... BIT16 (most significant byte).
Conversion Bits to Word
Description of function
When the "En" is high, the BIN/DEC function produces a
16-bit integer-type output from 16 inputs of the following
type: Bit
Illustration:
Inputs/Outputs
This function supports 16 discrete inputs: BIT01 (least
significant byte) ... BIT16 (most significant byte).
This function supports one 16-bit integer-type output.
De-Multiplexer
Description of function
This function demultiplexers integers. It is used to route
the input value onto one of the 4 OUTPUTS on each rising
edge of the VALIDATION input.
A VALUE copied to an output does not revert to 0 when
a VALUE is written to another ADDRESS.
The BASE ADDRESS parameter allows several blocks to be
used at the same time to multiple outputs.
The Parameters tab contains:
BASE ADDRESS: Contains the address of the ADDRESS 1
output.
Retentivity: Chooses whether or not the function is
reinitialised if the controller power supply is disconnected.
When they are not connected, the ADDRESS and VALUE
inputs are set to zero.
