OFF in the zone: the output
always remains active.
Output Q
The output indicates the result of
the comparison when the En input
is active.
The output does not change state
when the En input is inactive.
Comparison Function

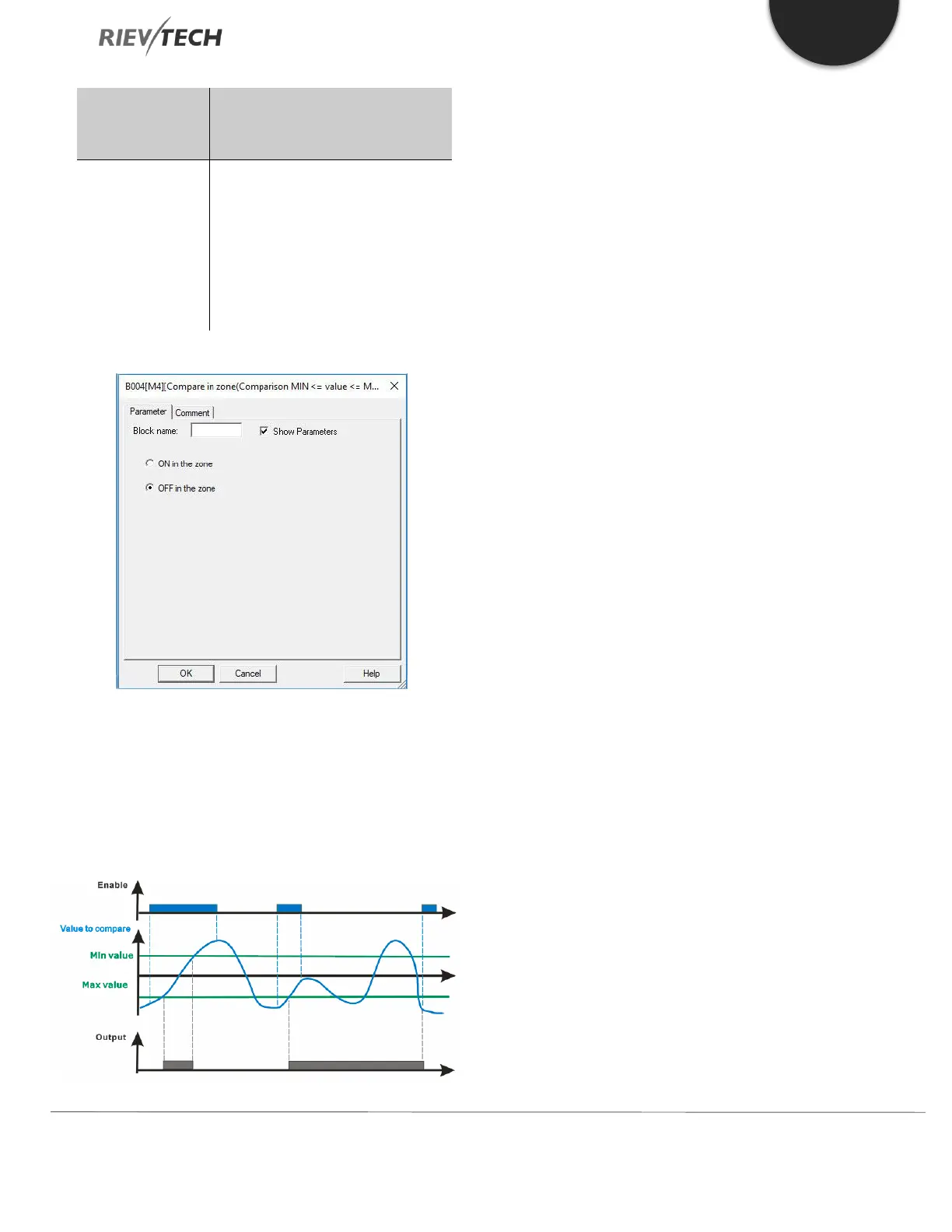

The diagram below shows the different states the output
can take, depending on the input value to compare and
the enable input:
