this case, if the ADDRESS input equals 2 the VALUE of the
third input will be copied to the output.

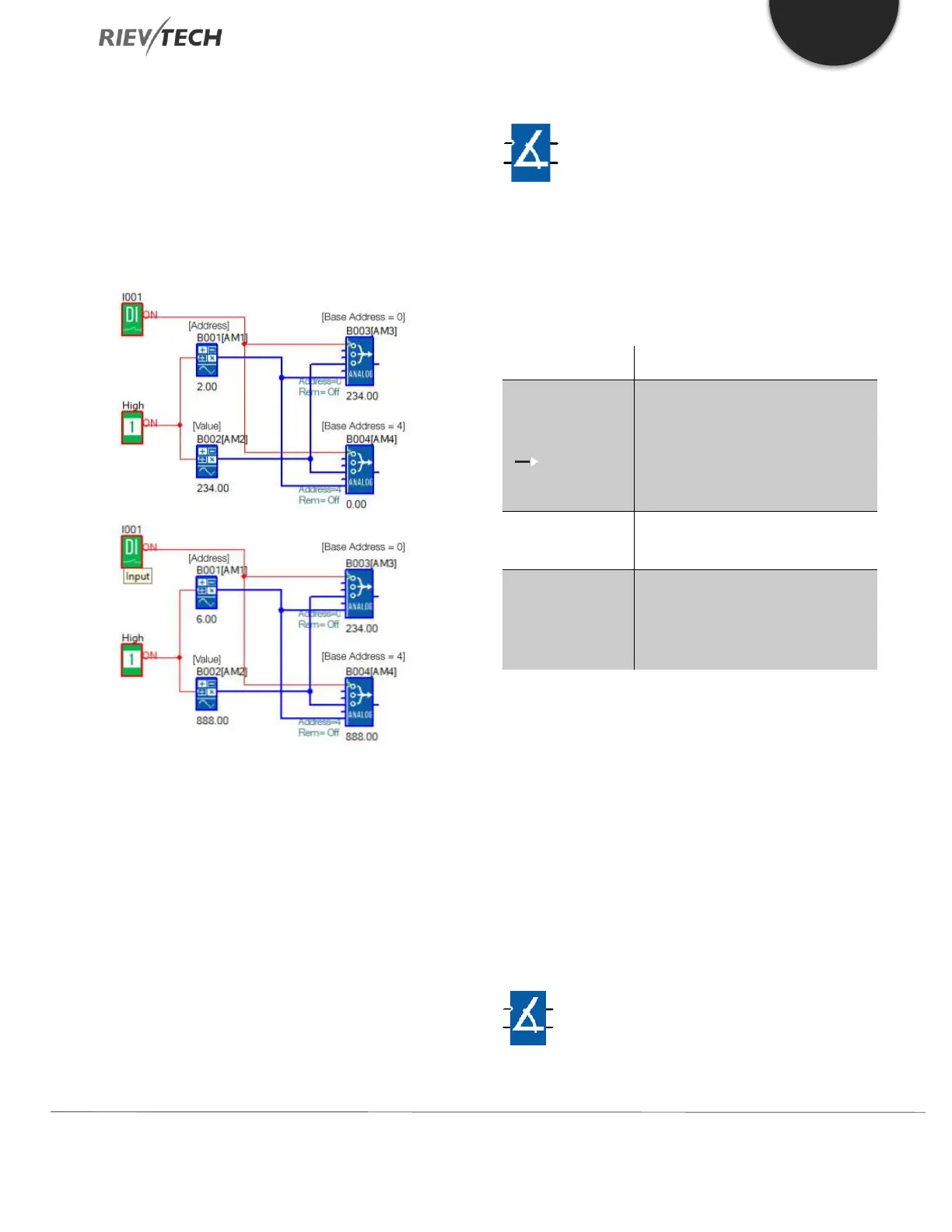

If a second block is being used, 8 inputs can be
demultiplexed by putting the value 4 as the BASE
ADDRESS in the second block and connecting the
VALIDATION and ADDRESS inputs to the same source.
Square Root
Description of function
This function is used to calculate the square root of the
number present as an input with accuracy to two decimal
points.
Connection
Description
Input Validation
( )
Function validation input. Until this
input is activated, the function
remains inert. Validation is active
implicitly if it has not been
connected.
Input Calculation
The value must be between 0 and
32767.
Outputs AQ
Calculation output: The result is
presented in the format "Root" x
100.
Operation:
Example: When X = 20000 => Root of X = 141.42. The
value read as an output of the function is 14142.
If an input number is negative, then the result is 0.
Performance:
The calculation is accurate to 0.01 either way.
Sin & Cos
Description of function
