Programmable Relay User Manual for ELC, EXM and PR Series 213 2020 v6.0 © Rievtech Co.,
Ltd. www.rievtech.com

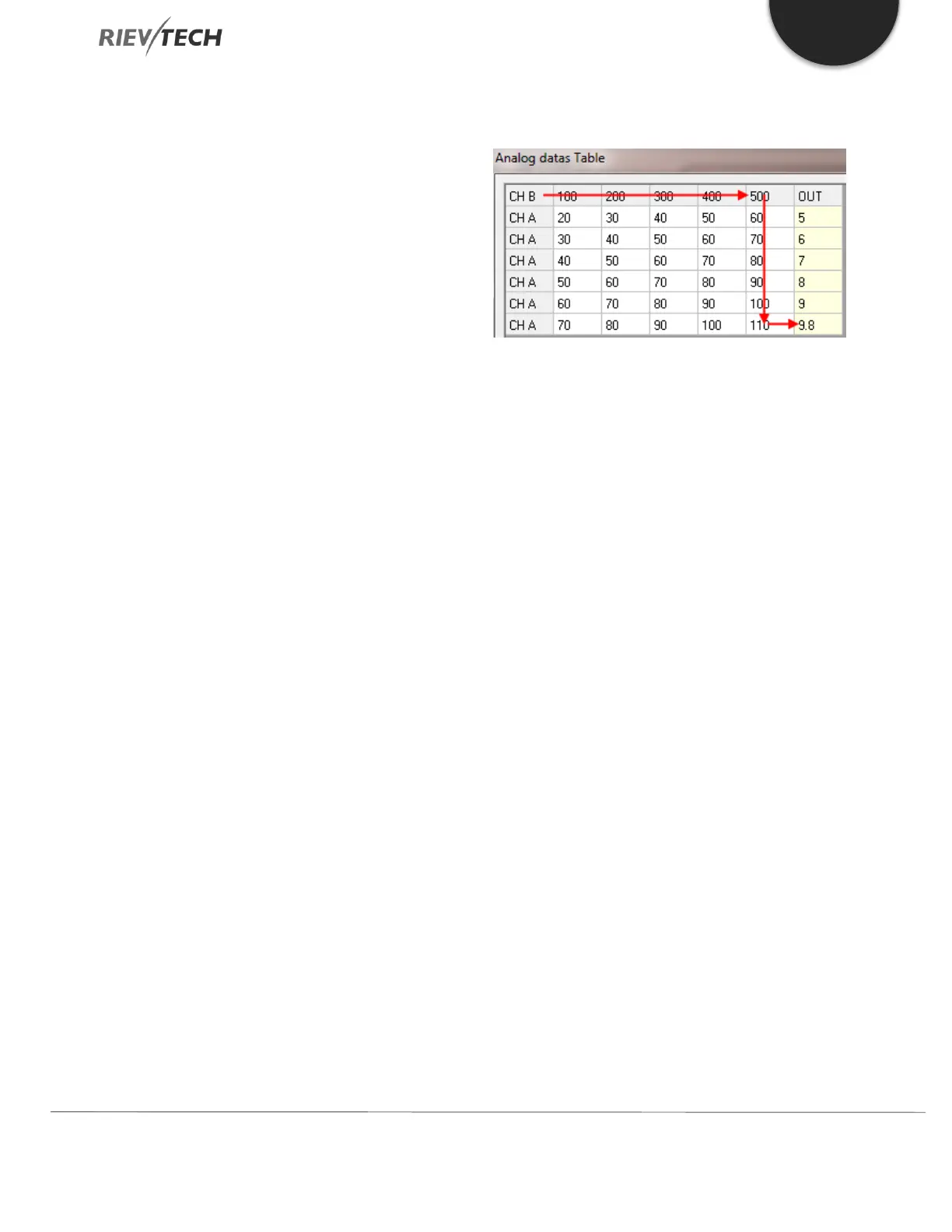

Example 5
Search: Right to Left and Top to Bottom
B = 680 and A = 167
The search from Right to Left would stop at column headed
500 because this is the LAST value in the row.
The search from Top to Bottom would stop at row with 110
because this is the LAST value in the column.
The output value would be 9.8 * 100 = 980.
