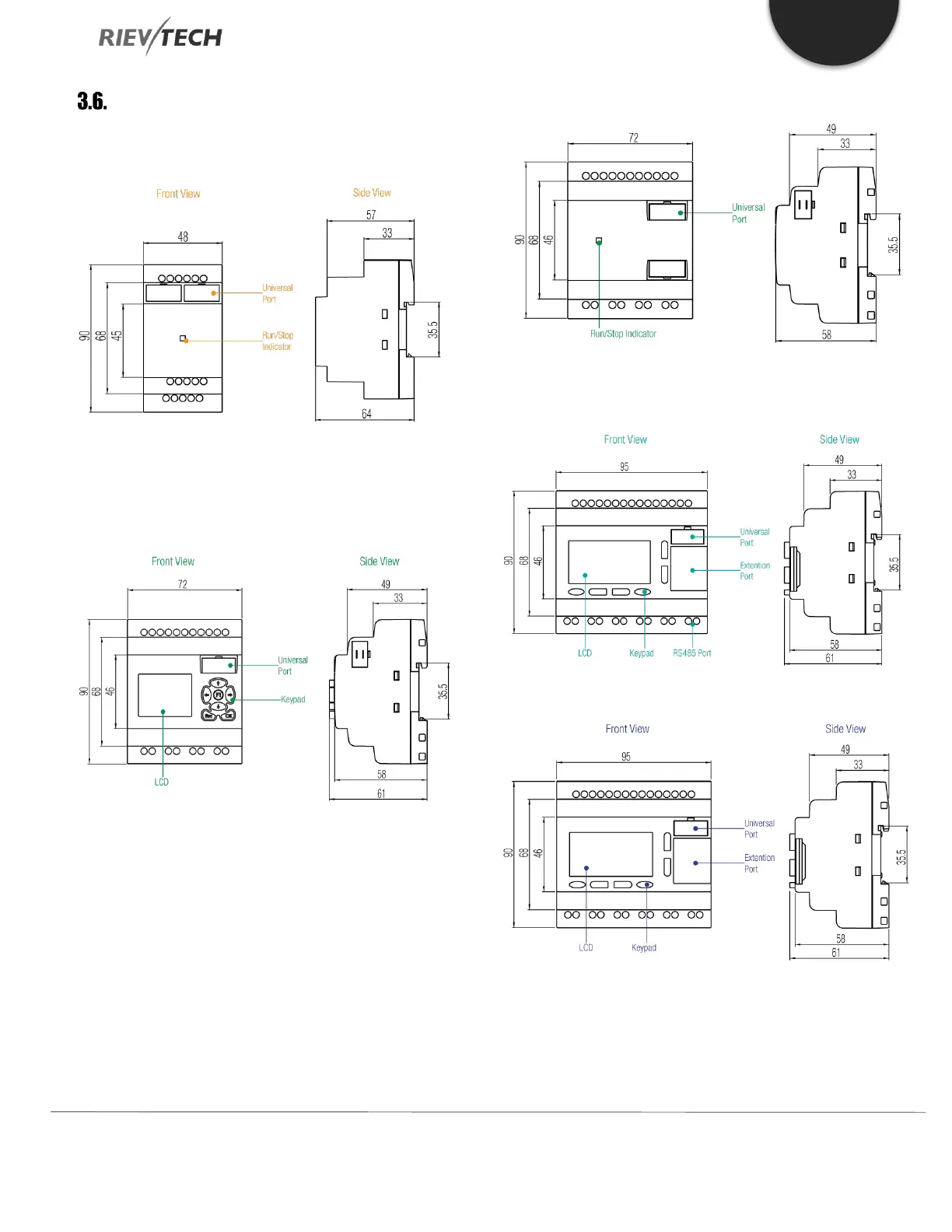

Structure & Dimensions
3.6.1. PR-6 Series CPU and EXM-E
Expansion Modules
Figure 4 PR-6 Series CPU and EXM-E Dimensions
3.6.2. PR-12 Series with LCD
Figure 5 PR-12 Dimensions
3.6.3. PR-12 Series without LCD
Figure 6 PR-12-E Dimensions
3.6.4. PR-14 and PR-18 Series
Figure 7 PR-14 Dimensions
Figure 8 PR-18 Dimensions
