S4 (break contact) Shutdown position sensor
S5 (break contact) Safety bar

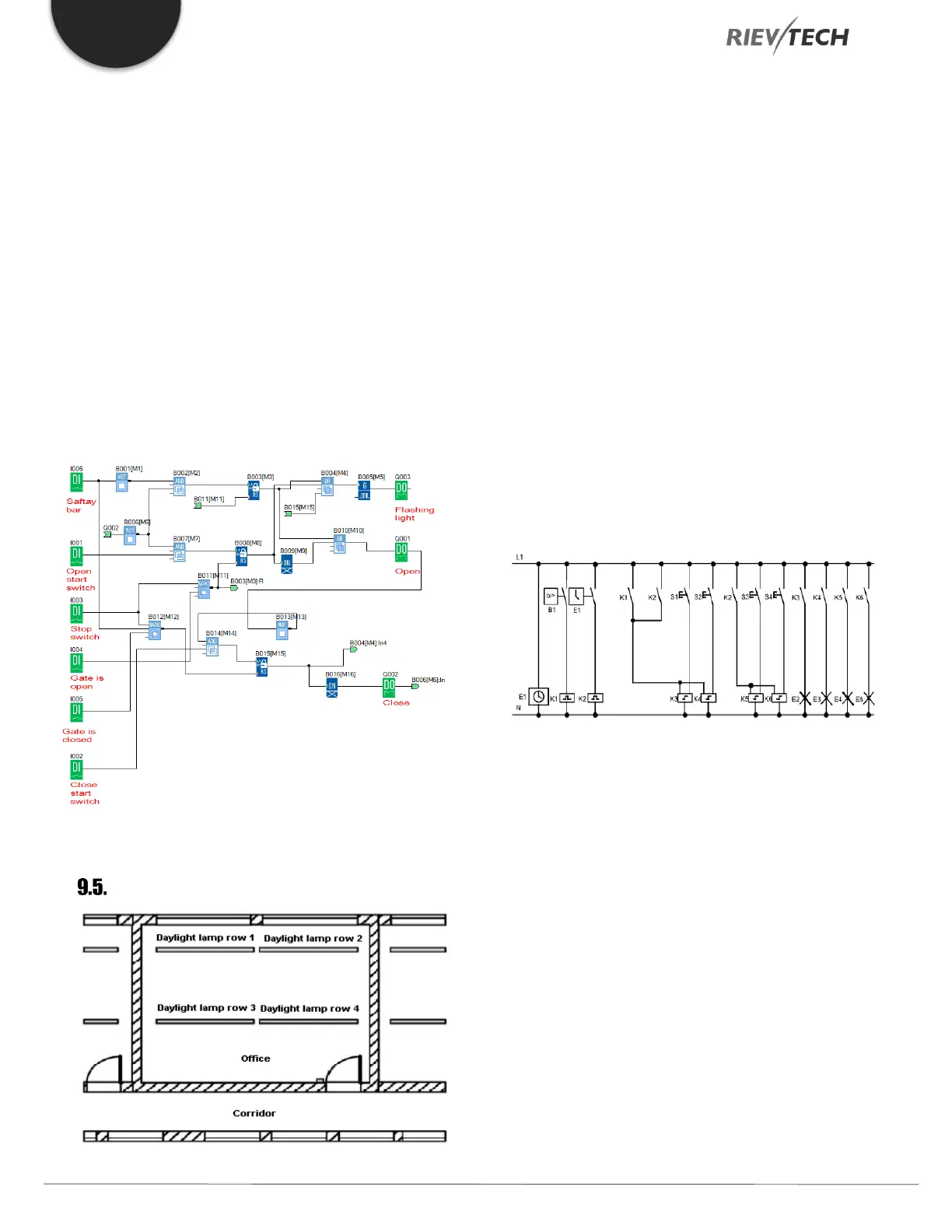

xLogicsoft Solution
The xLogic circuit provides a further feature compared to
standard controls: The actuation of a safety bar interrupts
the closing motion of the gate. Five seconds before the
gate is opened or closed, a flashing light is activated and
signals the start of the movement. It continues flashing
until the gate has stopped.
In contrast to standard solutions, xLogic offers an
economic means of modifying the control system.
Daylight Lamp System
Requirements for Lighting System
Different daylight lamp rows should be able to be
switched on and off easily.
If the window at one side has enough light, the light will
be switched off automatically via photosensor switch.
The light will be switched off automatically at 8:00 p.m.
The light can be switched on and off manually at any time.
Standard Solution
The lighting arrays can be operated by a pulse relay
controlled by a button beside the door. This can be
replaced by means of a timer and photosensor. The pulse
relay may shorten the pulse width of the “off command”.
Required components:
Button S1—S4
Daylight control switch B1
Timer T1
Pulse relay K1 and K2
Pulse switches K3—K6 able to be switched off collectively
