Disadvantages of Traditional Solution:
In order to realize function, it needs plenty of wiring.
Lots of mechanical parts will result in obvious failure over
time and high maintenance costs.
Any modifications could be labour intensive.

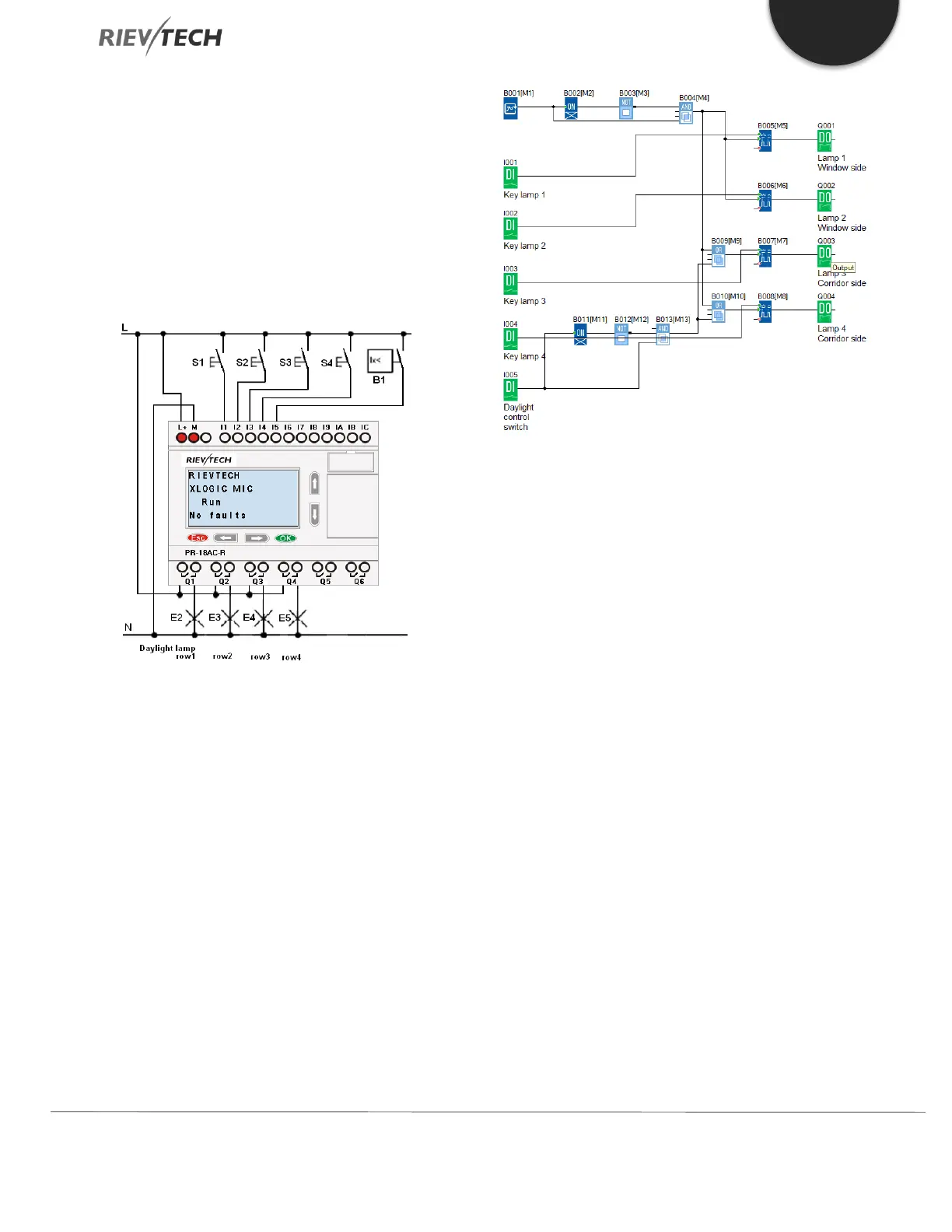

The Scheme of xLogic
Components:
S1—S4 (make contact) Momentary switch
B1 (make contact) Daylight control switch
Circuit Diagram by xLogicsoft
Benefits:
Whilst the power consumption of load does not exceed
the output of the xLogic outputs voltage range, the lamps
can be directly connected to the xLogic main module.
However, if the power consumption of the load exceeds
the output of the switch’s voltage range, then an
additional interposing relay would be required.
The photosensor can be directly connected to the
input of xLogic.
Don’t need an external timer, as this function has
been integrated into xLogic.
It can be installed in a small-sized cabinet, so
quite space-saving.
Less equipment.
Quite easy to modify the lighting system.
Further time controls can be added to provide
extra flexibility.
