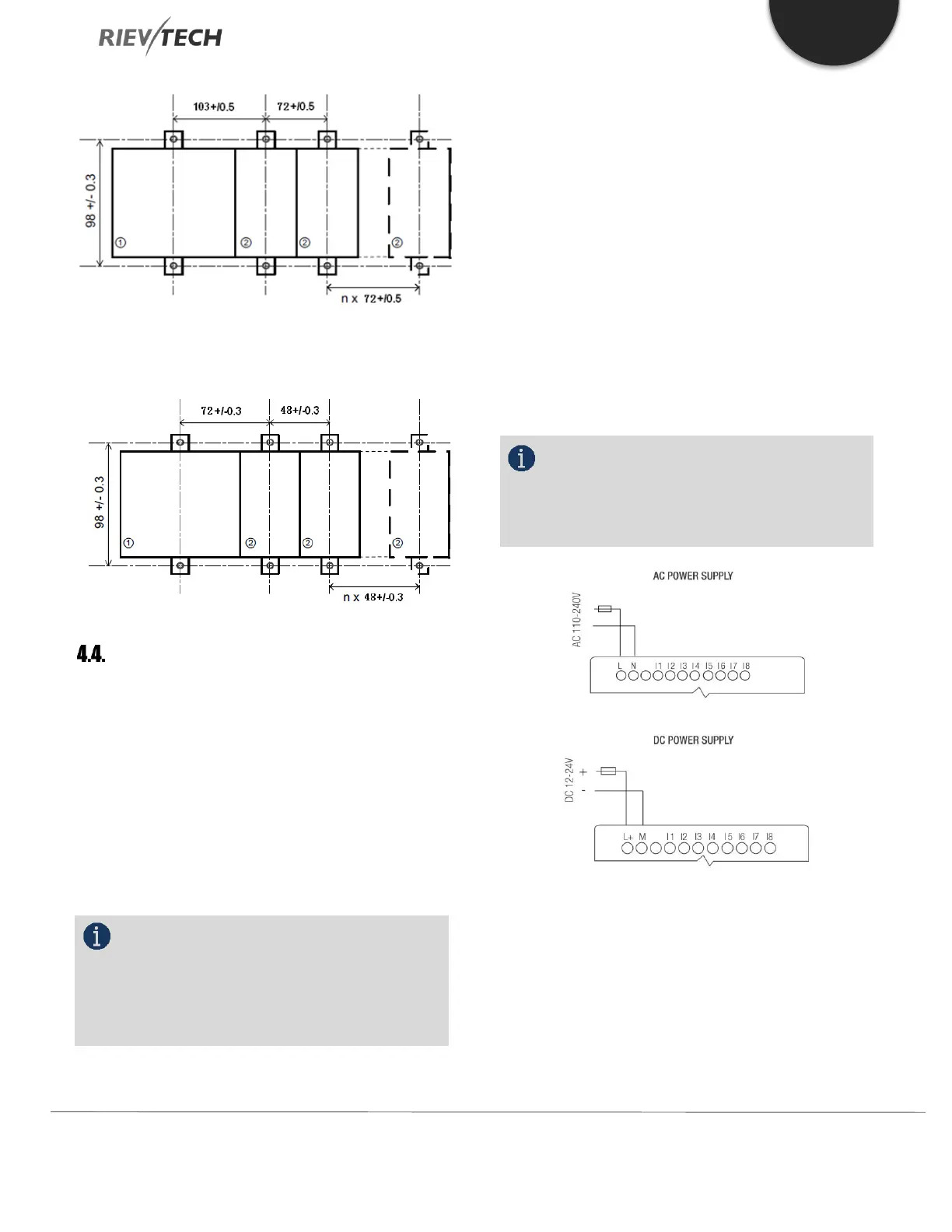

Figure 15 PR-24 Wall Mountings
Figure 16 PR-12-N Wall Mountings
Wiring
Use a screwdriver with a 3-mm blade or adjusting
Rievtech hardware terminals. You do not need wire
ferrules for the terminals. You can use conductors with
cross-sections of up to the following thicknesses:
1 x 2.5 mm
2
2 x 1.5 mm
2
for each second terminal chamber
Tightening torque: 0.4... .0.5 N/m (3. .4 lbs/in)
NOTICE:
Always cover the terminals after you have
completed the installation. To protect against accidental
contact with live parts. Local electrical standards must be
complied with.
4.4.1. Connecting Power
The following hardware is rated for operation with
110/240 VAC supply:
PR-6AC, PR-12AC, PR-14AC, PR-18AC, PR-24AC
and PR-E-16AC
The following hardware is rated for operation with
12/24 VDC supply:
PR-6DC, PR-12DC, PR-14DC, PR-18DC, PR-24DC
and PR-E-16DC
NOTICE:
A power failure may cause an additional edge
triggering signal. Only data from the last uninterrupted
cycle will be stored.
Figure 17 Power Connection
