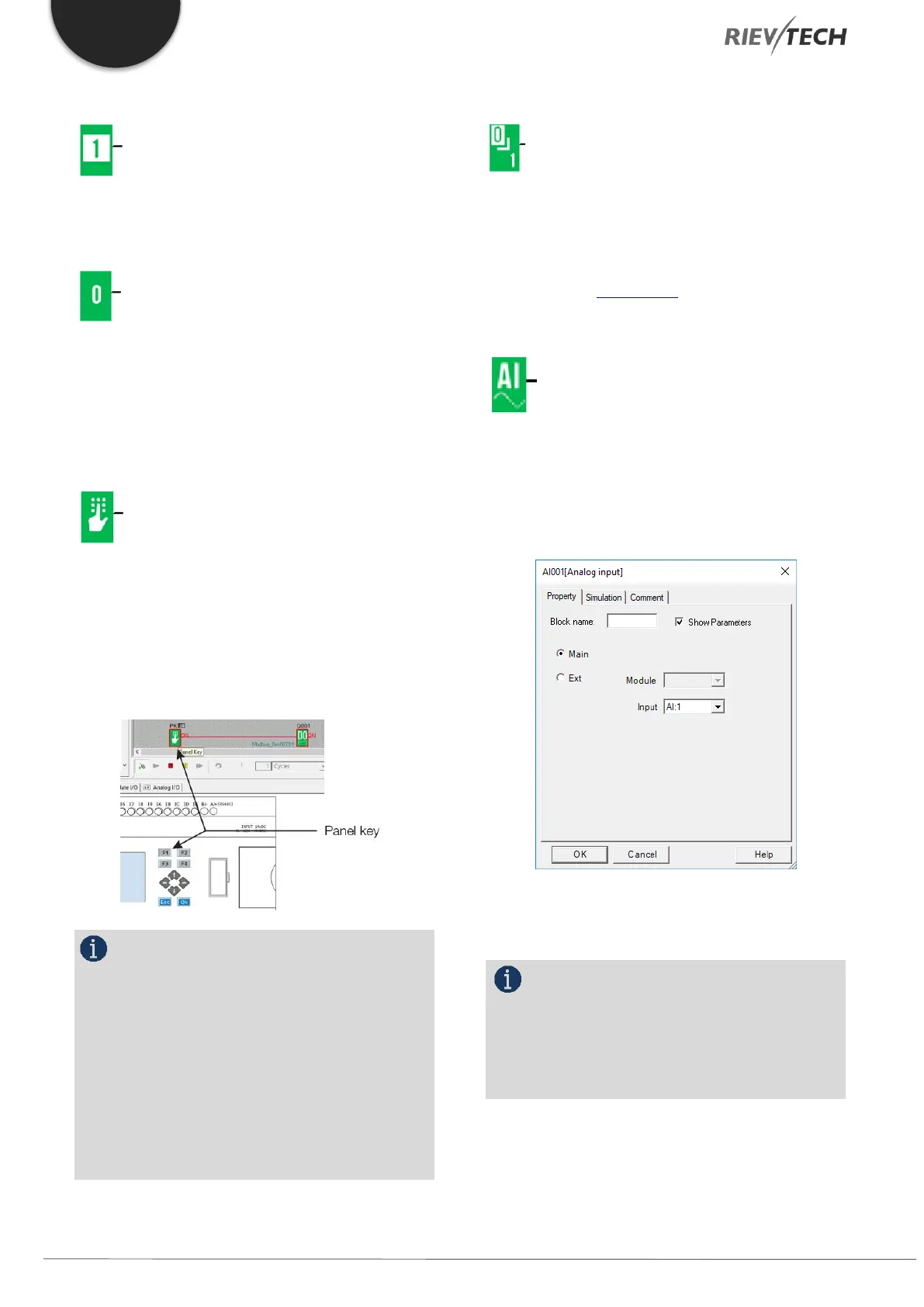

Permanent Logical Levels HI and LO
Set the block input to logical hi (hi = high) to set it
permanently to logical '1' or 'H' state.
Set the block input to logical lo (lo = low) to set it
permanently to logical '0' or 'L' state.
Panel Key
It is the symbol for the Function key on the CPU panel
(F1—F4) where fitted. If one of the function keys is
pressed down, the status of the corresponding symbol
in the program shall turn from 0 to 1. This will give off
one high trigger.
NOTICE:
1. Only one function key can be pressed down
at any one time. If you press down two or more at the
same time, xLogic will not process the keystrokes.
2. If the arrow keys (UP, DOWN, LEFT and
RIGHT), Esc and OK had been applied to the program,
then they would be invalid for menu operation (e.g.
manual programming, parameters modification and
view alarming message etc).
Shift Register Bits
xLogic provides the shift register bits S1 to S8, which are
assigned the read-only attribute in the circuit program.
The content of shift register bits can only be modified
by means of the Shift register special function
Analogue Inputs
You can use up to 36 analogue inputs. In your block
configuration, you can assign a new input terminal to an
input block, provided this terminal is not already used
in the circuit program.
For help on analogue block parameter, refer to
Information on analogue value processing.
NOTICE:
AI11 means the AI1 input of the expansion
with address 1.
AI82 means the AI2 input of the expansion
with address 8.
Based on different analogue input signals, you need
select a different sensor type in the analogue blocks,
you need to use an analogue amplifier with the AI input,
