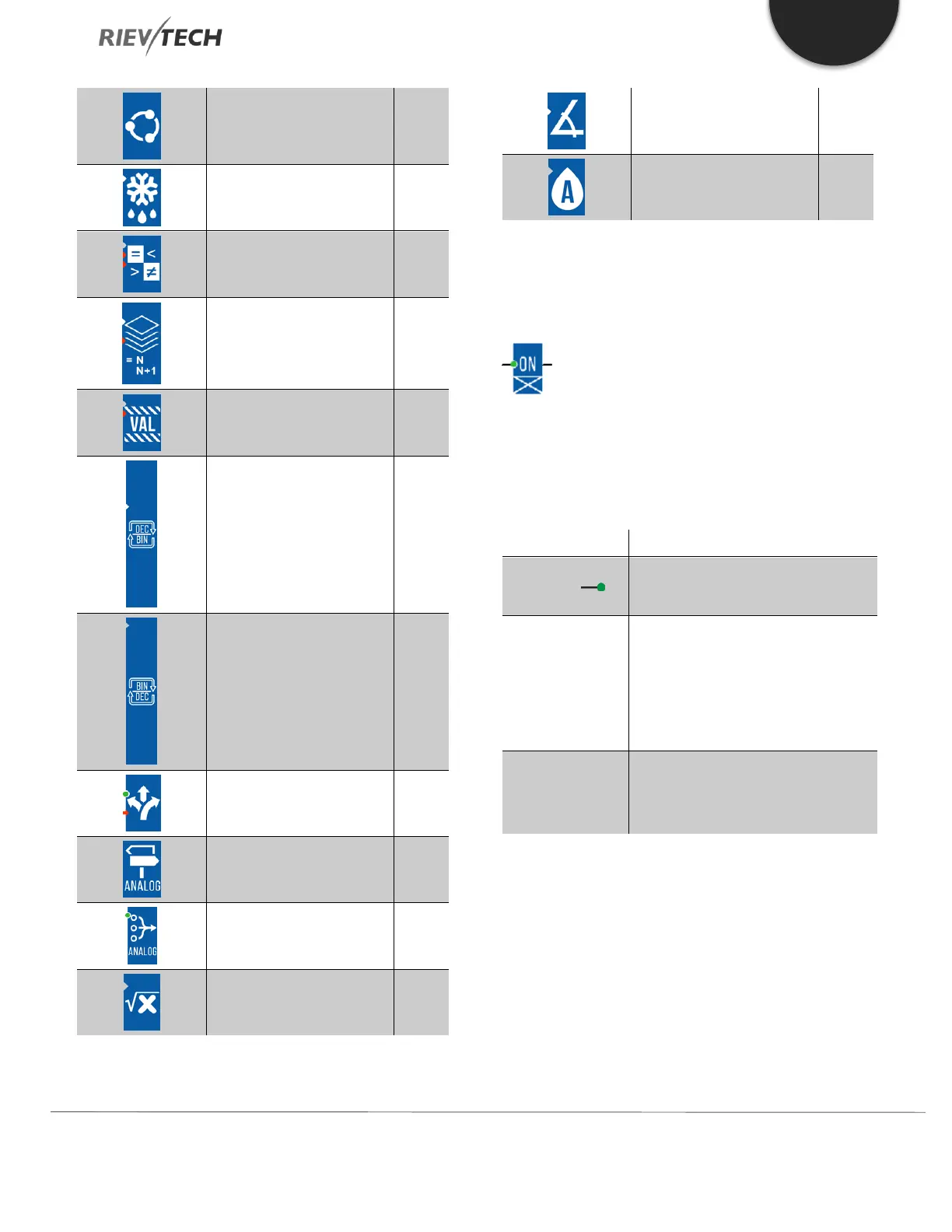

Pumps Management
Defrost
Comparison of 2 values
Multicompare
Compare in Zone
Convert Word to Bits
Convert Bits to Word
Demultiplexer
Multiplexing
Multiplexer
Square root
Sin Cos
Absolute Humidity
On-Delay
Description of function
The output is not switched on until a configured delay
time has expired.
Connection
Description
Trg input ( )
The on-delay time is triggered via
the Trg (Trigger) input
Parameter
T represents the on-delay time
after which the output is switched
on (output signal transition 0 to 1).
Retentivity on = the status is
retentive in memory.
Output Q
Q switches on after a specified time
T has expired, provided Trg is still
set.
