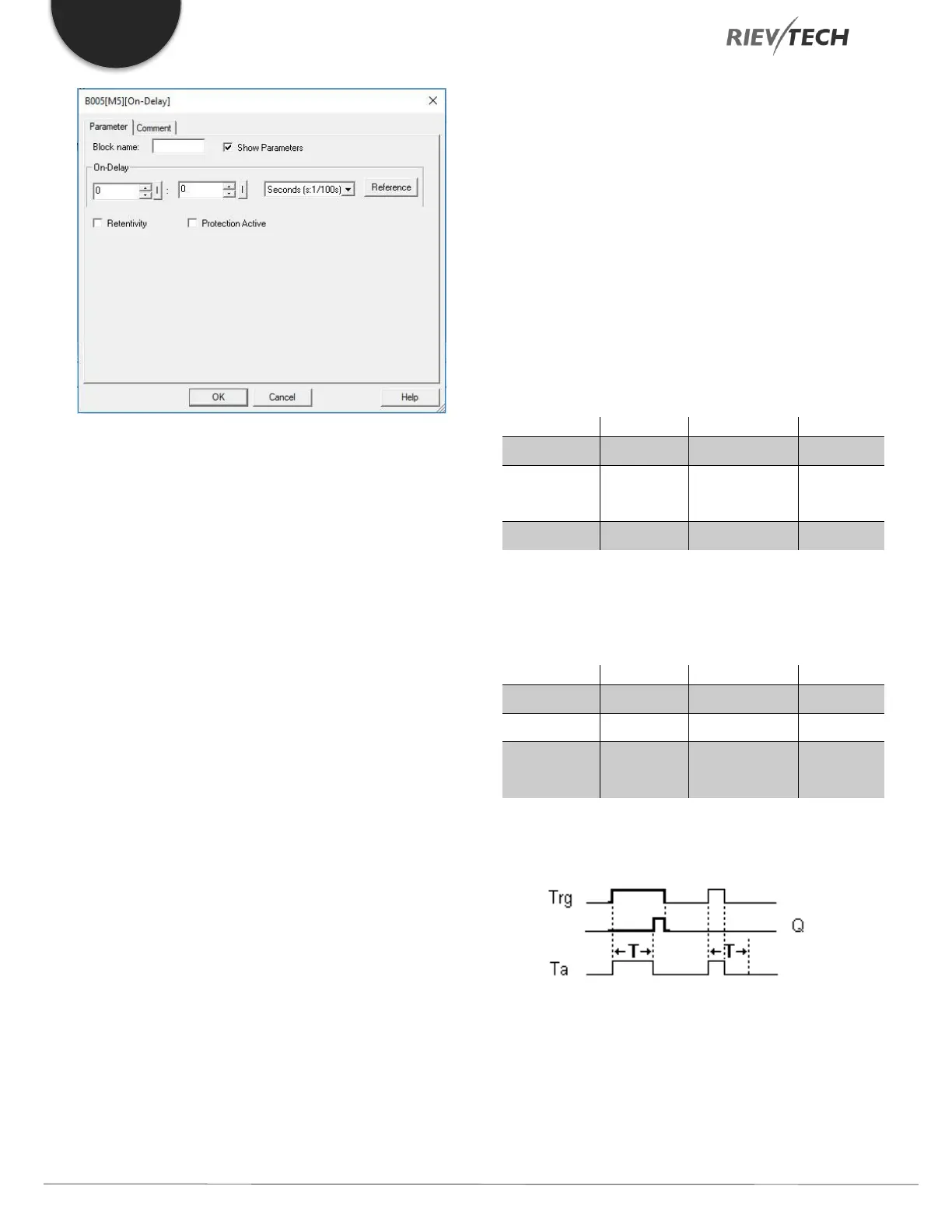

Parameter T
The time for parameter T can also be pre-set based on the
actual value of another, already-configured function. You
can use the actual values of the following functions:
Analog comparator (Ax – Ay) Analog threshold trigger
(Ax)
Analog amplifier (Ax) Analog multiplexer (AQ)
Analog ramp (AQ) Mathematic instruction
(AQ)
PI controller (AQ) Up/down counter (Cnt)
Analog filter (AQ) Average value (AQ)
Max/Min (AQ) On-delay (Ta)
Off-delay (Ta) On-/off-delay (Ta)
Retentive on-delay (Ta) Wiping relay(pulse output)
(Ta)
Edge triggered wiping relay (Ta)
Asynchronous pulse generator (Ta)
Stairway light switch (Ta) Multiple function switch (Ta)
Stopwatch (Ta)
You select the required function via the block number. The
time-base can be adjusted.
The value of “T” can be set/modified in parameter mode.
For information about how to modify，refer to chapter
5.2.2, please.
For information on the validity and accuracy of the time
base, refer to the xLogic time-base list as follows:
Valid ranges of the time-base, if T = parameter
Time-base
Max. value
Min. resolution
Accuracy
s (seconds)
99:99
10 ms
± 10 ms
m
(minutes)
99:59
1s
± 1 s
h (hours)
99:59
1 min
± 1 min
Valid ranges of the time base, if T = Actual
value of an already-programmed function
Time-base
Max. value
Meaning
Accuracy
ms
99990
Number of ms
± 10 ms
s
5999
Number of s
± 1 s
m
5999
Number of
min
± 1 min
Timing diagram
The time Ta (the current time in xLogic) is triggered with
the 0 to 1 transition at input Trg.
If the status at input Trg stays 1 at least for the duration
of the configured time T, the output is set to 1 when this
