B
T
R-H
F-H
F-S R-S=RO-S
RO-H
RO-T3
R-
R-
F-

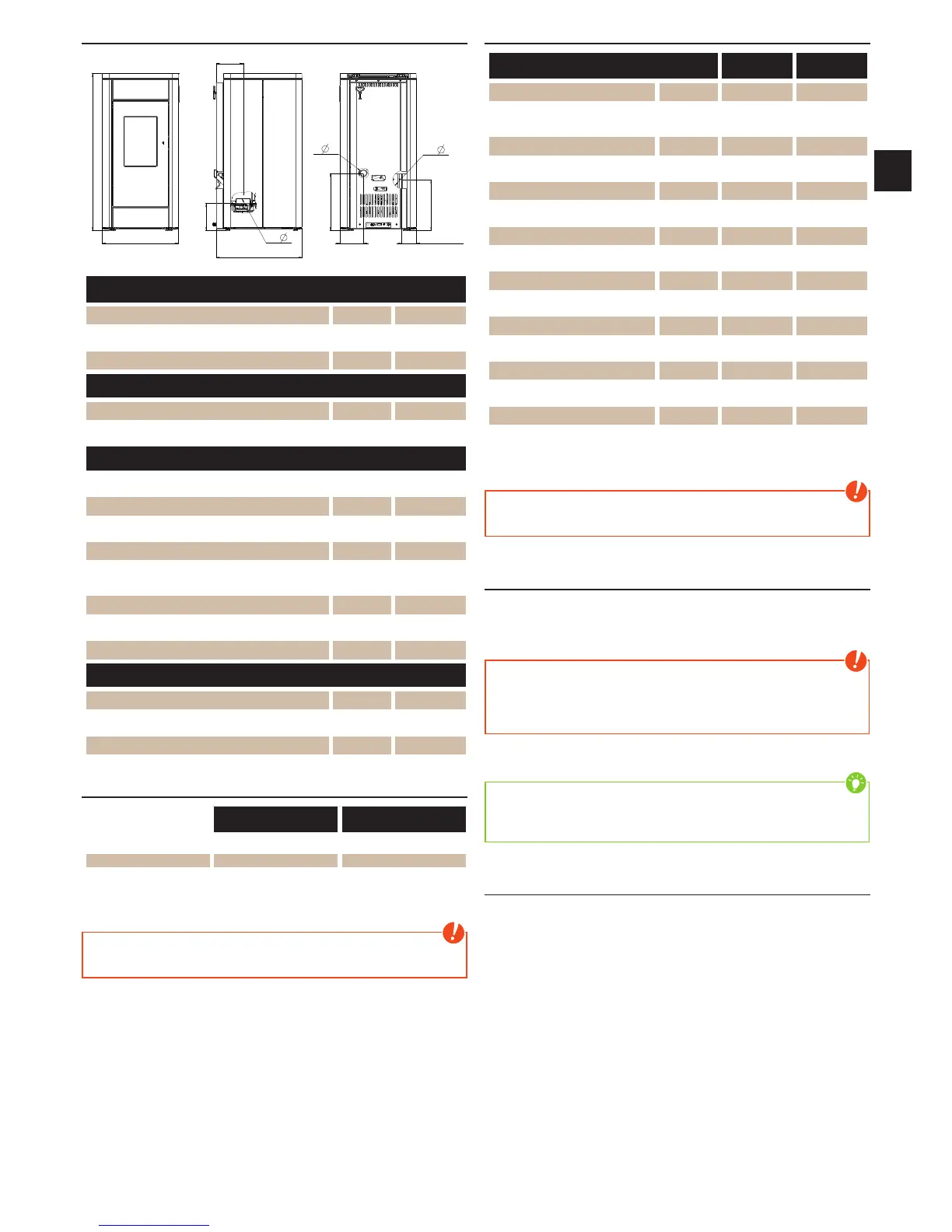

Dimensions
Height [mm] 1070
Width [mm] 520
Corpus depth [mm] 585
Weight
Weight without shell [kg] 183
Weight with aluminium shell [kg] 195
Flue pipe connection
R - Ø Flue pipe outlet [mm] 100
RO - H connection height [cm] 20
RO - T1 original angle pipe total depth [cm] -
RO - T2 original angle pipe distance to rear wall [cm] -
RO - T3 Depth from rear wall to middle of flue
pipe
[cm] 19
RO - S original angle pipe side distance [cm] 10
R - H rear connection height [cm] 36
R - S rear connection side distance [cm] 10
Fresh air connection
F - Ø Diameter [mm] 50
F - H Connection height [cm] 39
F - S Side distance [cm] 16
Amount of Fuel
Nominal load Part load
AH RAO AH RAO
Amount of fuel ~1,8* ~0,6*
Burn time at full pellet
hopper
ca. 24h ca. 16h ca. 75h ca. 51h
*Practical values may vary depending on pellet quality.
Note
Pellet consumption depends on the size of the pellets. The larger the pellets,
the slower the feed and vice versa.
(AH) - rear flue pipe connection
(RAO) - top flue pipe connection
Technical data
Technical data AH RAO
Heating power range [kW] 2,4 - 8 2,4 - 8
Room heating capacity
(depending on house insulation)
[m³] 50 - 220 50 - 220
Fuel consumption [kg/h] 0,6 - 1,8 0,6 - 1,8
Pellet container capacity [kg] ca. 40 ca. 26
Pellet container capacity [l] 60 40
Electric supply [V]/[Hz] 230/50 230/50
Average electrical input [W] ~ 20 ~ 20
Fuse [A] 2,5 AT 2,5 AT
Efficiency [%] 91,5 91,5
CO2 [%] 12,2 12,2
CO-emission on 13% OO [mg/m
N
3
] 30 30
Dust emission [mg/m
N
3
] 15 15
Exhaust [g/s] 5,2 5,2
Exhaust temperature [°C] 155,2 155,2
Chimney draft requirement [Pa] > 3 > 3
The owner of small firing systems or the person authorised for the small
firing system is to keep the technical documentation and is to submit it to the
authorities or the chimney sweep on request.
Note
Please observe the national and European standards as well as local
regulations concerning the installation and operation of firing installations!
Packaging
Your first impression is important to us!
The packaging of your new stove provides excellent protection against damage.
However damage to the stove and accessories may still occur during transport.
Note
Therefore please check your stove on receipt for damage and completeness!
Report any deficiencies to your dealer immediately! Pay particular attention
during unpacking that the stone panels remain intact. Scratches to the
material can easily occur. Stone panels are excluded from the warrant.
The packaging of your new stove is environmentally neutral to a great extent.
Tip
The wood used in the packaging has not been surface treated. The cardboard
and film (PE) can be disposed of via the municipal waste collection for
recycling.
Electrical connection
The stove is supplied with an approx. 2m long connecting cable with a Euro-plug.
This cable is to be connected to a 230Volt/50Hz socket. The average electrical
power consumption is some 20 Watt in heating operation. And approx. 150
Watt during automatic ignition. The connection cable must be laid so that there
is no contact to any sharp edges or hot surfaces of the stove.
