RIKA INTEGRA II - Parts Illustrations

Copyright © 2008 by Lucky Distributing Revision 2.0 updated 11/05/2008
12

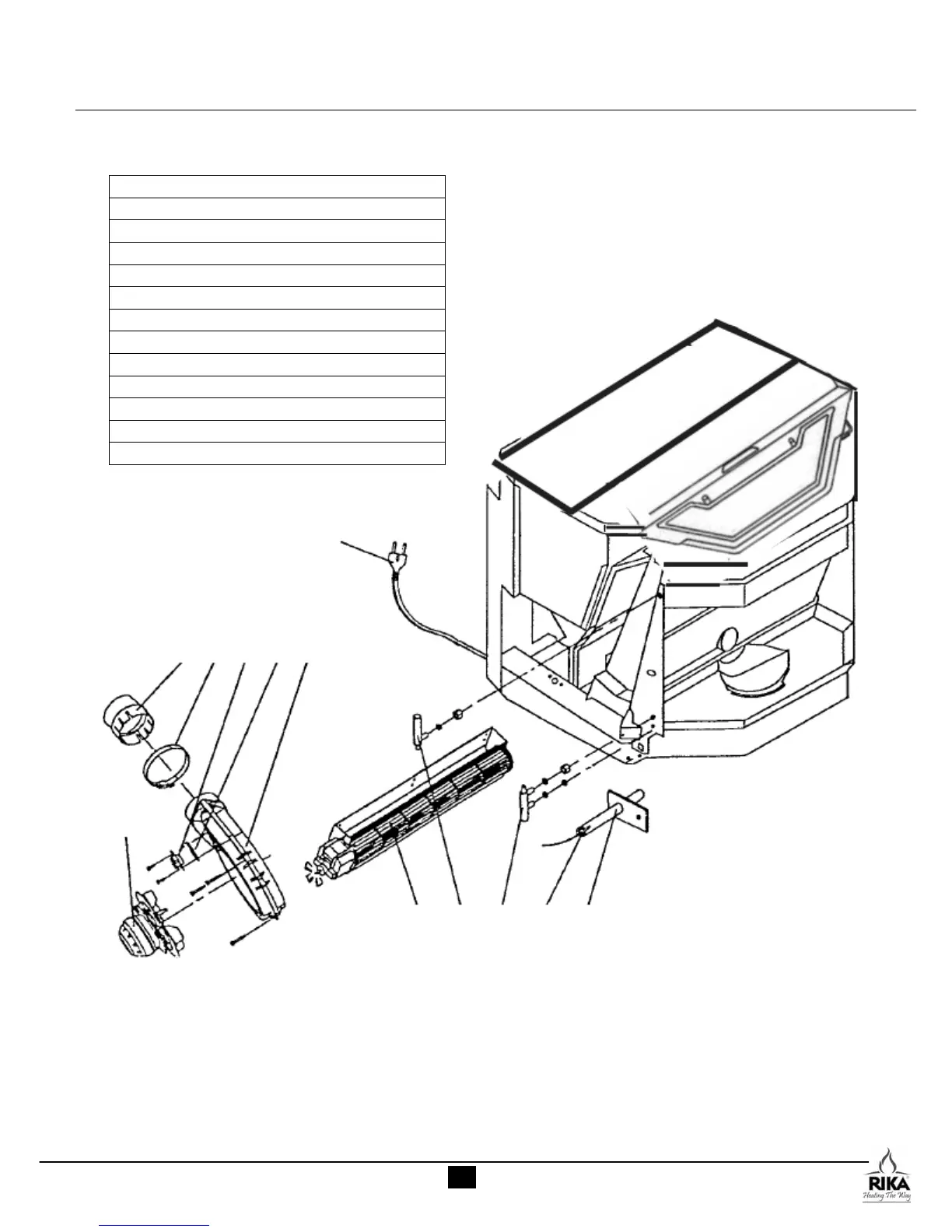

PARTS ILLUSTRATIONS
Fig. 2
Figure 3
24 Power Cord
28 Flue Adapter
29 Connecting Band
30 Low Limit Switch
31 Low Limit Gasket
32 Combustion Motor Housing
33 Combustion Motor/Fan
34 Convection Fan
35 Upper Door Hinge
36 Lower Door Hinge
37 Igniter Element
38 Igniter Bracket
27
28 29 30 31 32
33
34
35
36 37 38
Fig. 3
